THE32 Sub Pro Active Sealed

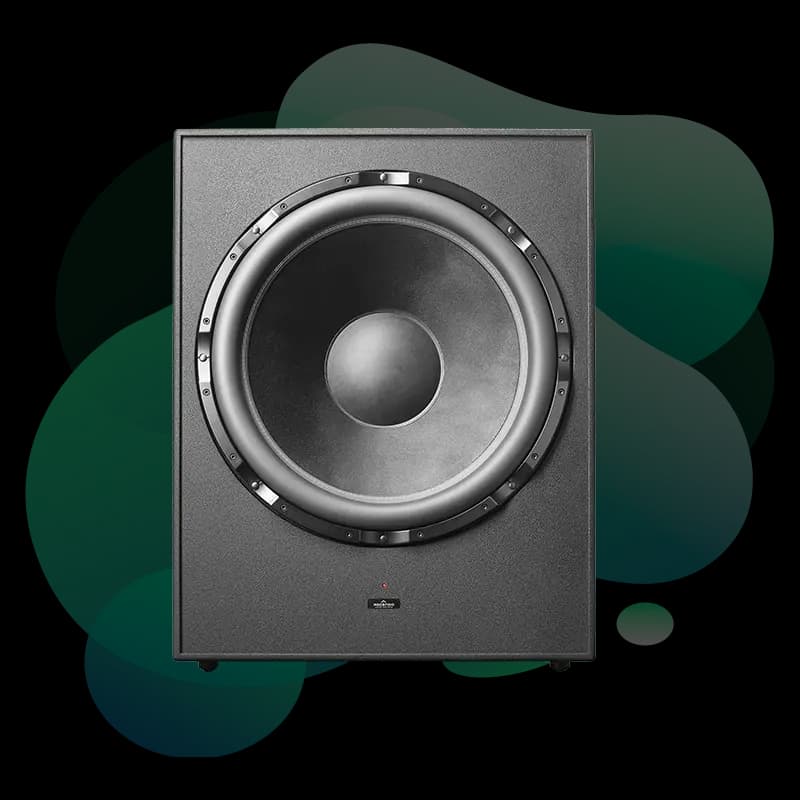

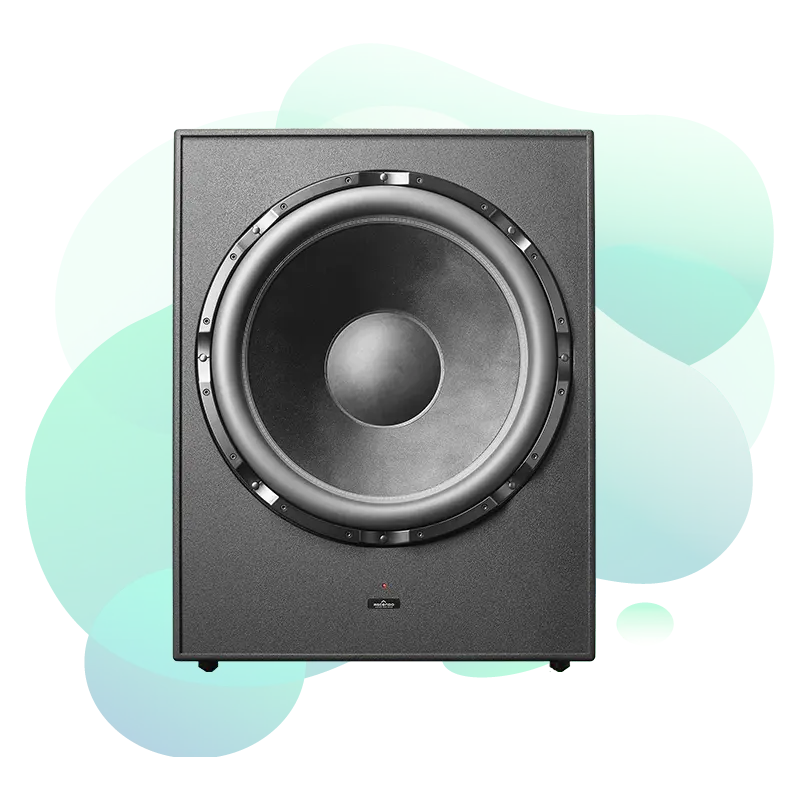

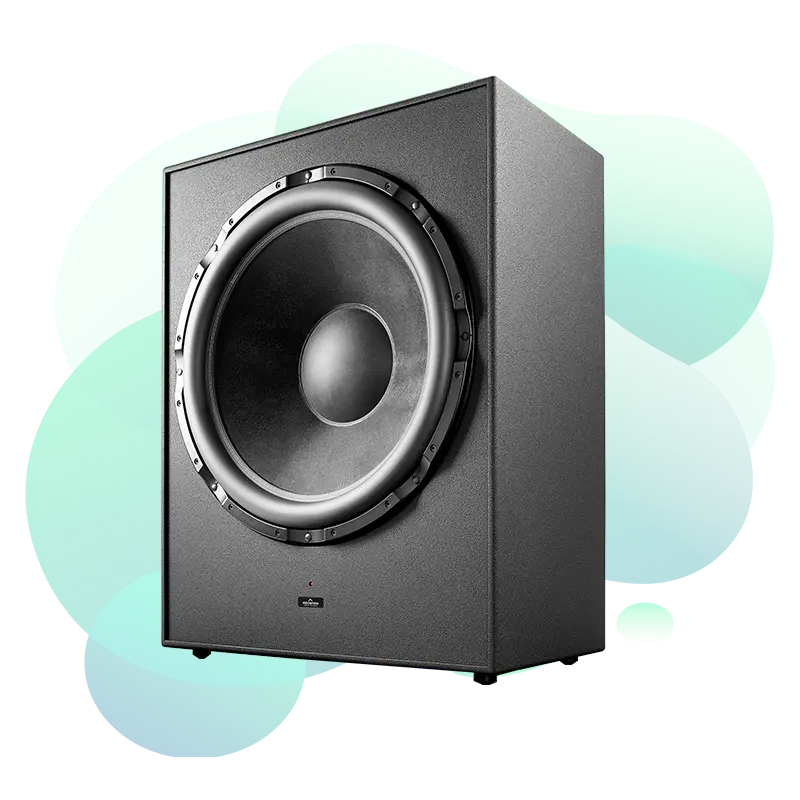

Ascendo THE32 Sub Pro Active Sealed Subwoofer
ASCENDO's world-record infrasonic subwoofer. The THE32 SUB PRO ACTIVE features a 32-inch driver with 90mm linear travel — displacing the air equivalent of fifteen standard 18" subwoofers. Peak SPL of 140 dB at 32 Hz.
Overview
The ASCENDO THE32 Sub Pro Active Sealed is the most extreme private cinema subwoofer on the market. Its 32" forward-firing woofer uses a dual 6.5" voice coil with 45mm one-way XMAX (90mm linear travel total) — achieving a maximum linear air displacement of 36.63 litres from a single driver. In practical terms, this driver displaces the air equivalent of approximately fifteen standard 18" subwoofers. The sealed enclosure and onboard 6000W amplifier with 96kHz/24-bit DSP and ASCENDO OCS (Online Control Software) enable precise tuning, protection management, and remote monitoring. Measured peak SPL of 140 dB at 32 Hz places the THE32 in a performance category that no other residential or semi-professional subwoofer occupies. Frequency response extends to 28 Hz at -3 dB and 20 Hz at -15 dB. Dimensions of 950×1225×550mm and a mass of 160 kg demand structural planning and typically require installation before room finishing. A statement piece for the world's most ambitious private cinemas.
Pros & Cons
Strengths
- Unmatched output at infrasonic frequencies — 140 dB at 32 Hz is a world record for a private cinema subwoofer
- 90mm linear driver excursion provides enormous headroom before distortion or limiting
- 6000W active amplifier with built-in DSP eliminates need for external amplifier equipment
- OCS software enables remote monitoring and tuning adjustment
- Sealed alignment ensures exceptional transient accuracy at all output levels
Limitations
- At 160 kg and 950×1225×550mm, installation must be planned before room completion
- Structural engineering required for the installation position — floor loading and anchoring
- Absolute flagship pricing — the most expensive individual subwoofer in the private cinema segment
- Mains power delivery at the subwoofer position must accommodate the 6000W amplifier load
Full Specifications
Transducer
Performance
Amplification & DSP
Physical
Integrating the Ascendo THE32 Sub Pro Active Sealed in World-Class Private Cinema
Kolosseum specifies the THE32 Active Sealed for clients building the world's most ambitious private cinema systems where ultimate low-frequency performance is a non-negotiable design objective. At 160 kg, this subwoofer must be installed as part of the room build rather than after completion. We engineer the structural, electrical, and acoustic integration from the earliest design stage.
Room Requirements
Minimum dedicated cinema room — no upper limit on room scale. The 32" driver and 6000W amplifier can pressurise rooms of any practical size. We design multi-THE32 arrays for very large rooms. Structural engineering for the floor or wall mounting position is mandatory.
Recommended Screen Pairing
Typically placed behind or beside the screen wall. The active design with OCS control allows remote level trimming once the system is installed, which supports fine-tuning without physical access to the subwoofer.
Acoustic Considerations
At 140 dB output capability, room construction must be appropriate for the pressures involved. We design cinema rooms to match the capability of the sub system, including isolation, structural decoupling, and bass management through Trinnov or StormAudio calibration platforms.
Frequently Asked Questions About the Ascendo THE32 Sub Pro Active Sealed Subwoofer.
At 160 kg, the THE32 requires specialist logistics, typically a pallet delivery with mechanical handling equipment and experienced installation crew. Kolosseum coordinates delivery, structural installation, and commissioning as a complete project management scope.
Technically yes, but its extreme capability is best matched to large dedicated cinema rooms where the building structure and acoustic design can absorb and utilise the output. In smaller rooms it would be heavily limited by DSP to prevent structural damage.
ASCENDO's Online Control Software allows remote monitoring and parameter adjustment of the THE32's built-in DSP over a network connection. This allows tuning refinements after installation without physical access to the subwoofer.
Yes. The THE32's built-in amplifier accepts standard balanced line-level inputs from any room processor. ASCENDO OCS handles onboard DSP, while the room processor manages crossover, delay, and bass management at the system level.
