Njord

Overview

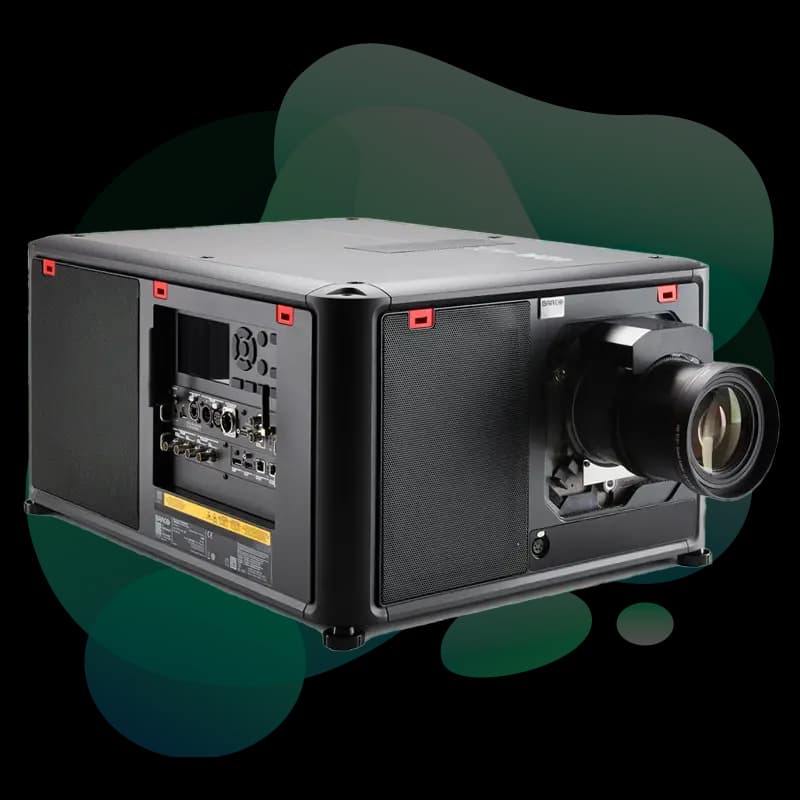

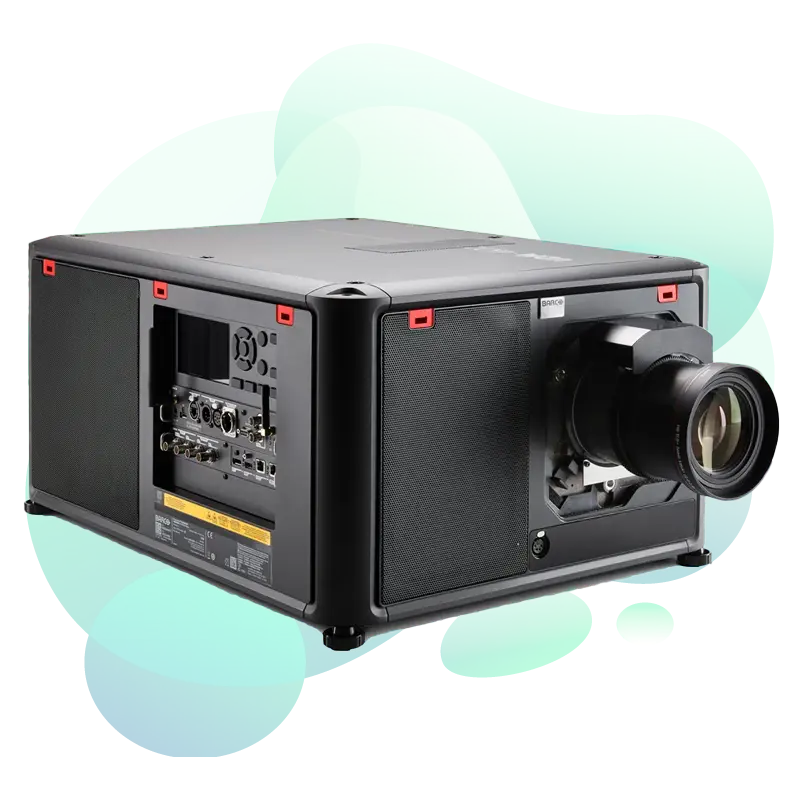

In Norse mythology, Njord is the god of the sea, winds, fish, and crop fertility — a deity of abundance and open horizons. His domain is the vast and the powerful. The Barco Residential Njord projects that same sense of scale into the realm of home cinema: a projector built for the screens that fill a room, the rooms that push illuminance to its limits, and the clients who will settle for nothing less than a cinematic performance that dominates the space. Njord belongs to Barco's **Theater & Media Room Series**, a platform distinct from the Pulse Series that underpins the Bragi, Balder, and Heimdall families. Where the Pulse Series uses single-chip DLP technology, the Theater & Media Room Series steps up to **three-chip DLP** — three discrete 0.90-inch DMD chips, one per primary colour, eliminating the spinning colour wheel entirely. There is no colour sequential processing; instead, red, green, and blue are imaged simultaneously, producing a colour fidelity and motion handling that single-chip DLP cannot match. Njord's laser phosphor light source is rated for up to 20,000 hours and includes **Constant Light Output (CLO)** — a system that actively maintains brightness to a user-defined target throughout the lamp's life. The projector delivers up to **12,500 ANSI lumens** at maximum output, making it capable of illuminating screens well beyond 200 inches even in environments with significant ambient light. Through Barco's **Light on Demand** feature, output can be reduced steplessly to 4,000 lumens, giving installers precise control over screen gain, ambient light rejection, and viewing comfort across all screen sizes and room conditions. **DynaBlack** is Njord's real-time dynamic contrast system, analysing each frame and using laser modulation to extend the effective contrast range to **20,000:1**. Sequential contrast is 2,000:1 and ANSI contrast is 600:1. These figures describe a projector that can render the deep shadow detail of a dark thriller and the explosive brightness of an action sequence in the same screening, without the tonal compression that plagues projectors relying on static contrast alone. Colour accuracy is managed by **P7 RealColor**, Barco's proprietary 7-axis colour management system. The Njord covers up to the full **DCI/P3** colour gamut — the standard used in commercial cinema — ensuring that professionally graded content is reproduced with the precision its creators intended. Calibration to any colour standard, white point, or custom target is straightforward through the RealColor system, with the Prospector web interface providing remote diagnostics and system monitoring. The signal path is built on Barco's Pulse electronics platform, providing HDMI 2.0 (HDCP 2.2) input, two HDBaseT inputs, DisplayPort 1.2, and optional SDI/BarcoLink connectivity. Processing latency is under 20ms with all processing engaged — a figure achieved through **Single Step Processing (SSP)**, Barco's technique for handling the full 4K signal in a single processing pass without introducing scaling artefacts. The input handles up to 4,096 × 2,160 at 60Hz. The Njord chassis is a substantial precision instrument: 540 × 725 × 355 mm, 48 kilograms, with a sealed optical core for dust immunity. Nine TLD+ lens options cover throw ratios from 0.41:1 to 10.83:1, with up to 73% vertical and 28% horizontal motorised lens shift. The projector supports 360° free rotation for any installation geometry. Noise level is 43 dB(A) at full output. For residential cinema installations that demand the highest available brightness and colour fidelity from Barco's three-chip platform, the Njord occupies the upper tier of the Theater & Media Room Series. Kolosseum specifies, supplies, and calibrates every Njord installation.
