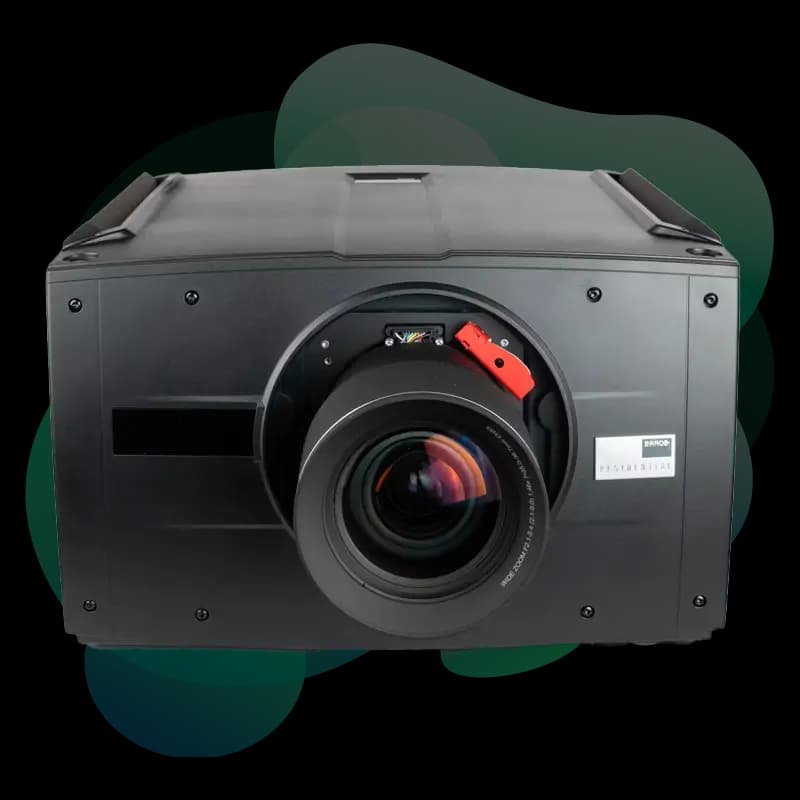

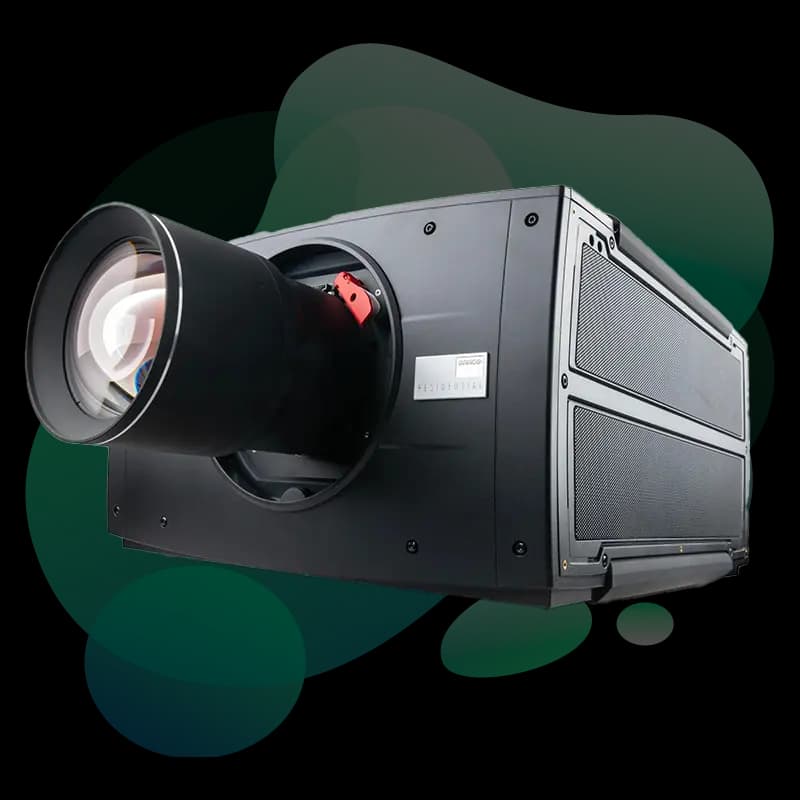

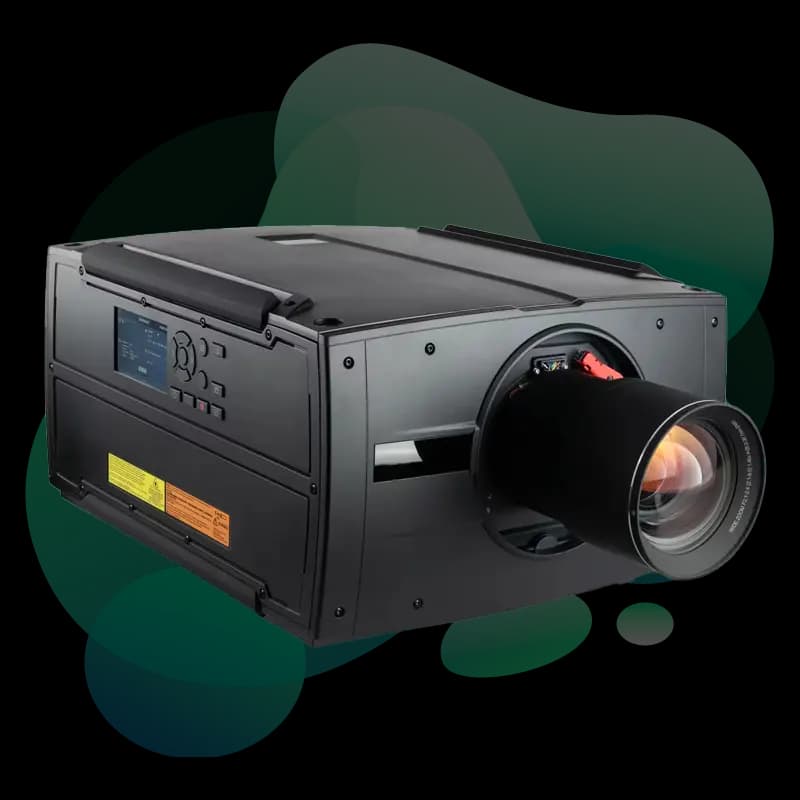

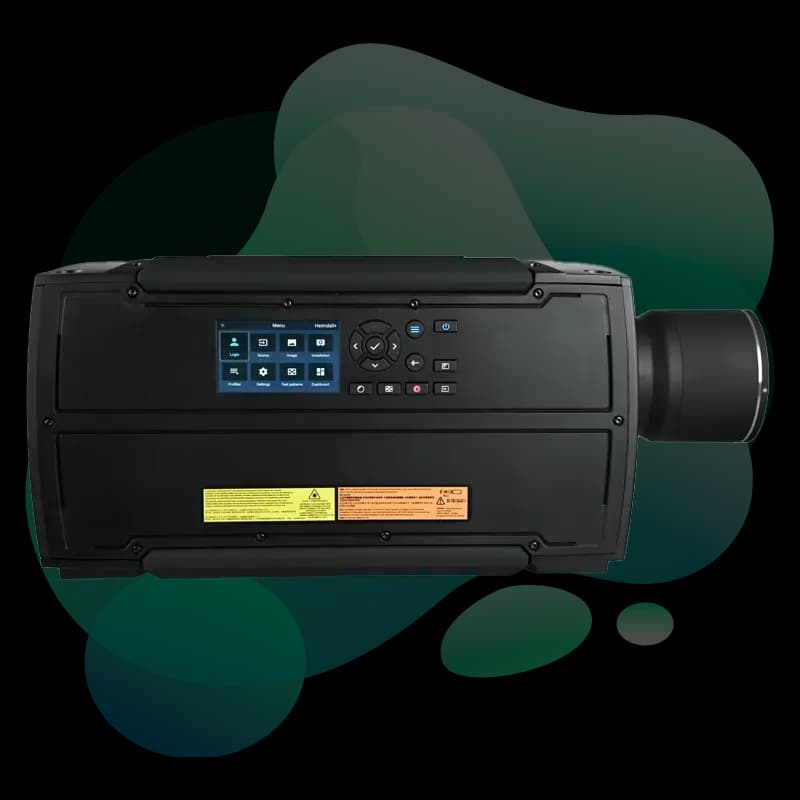

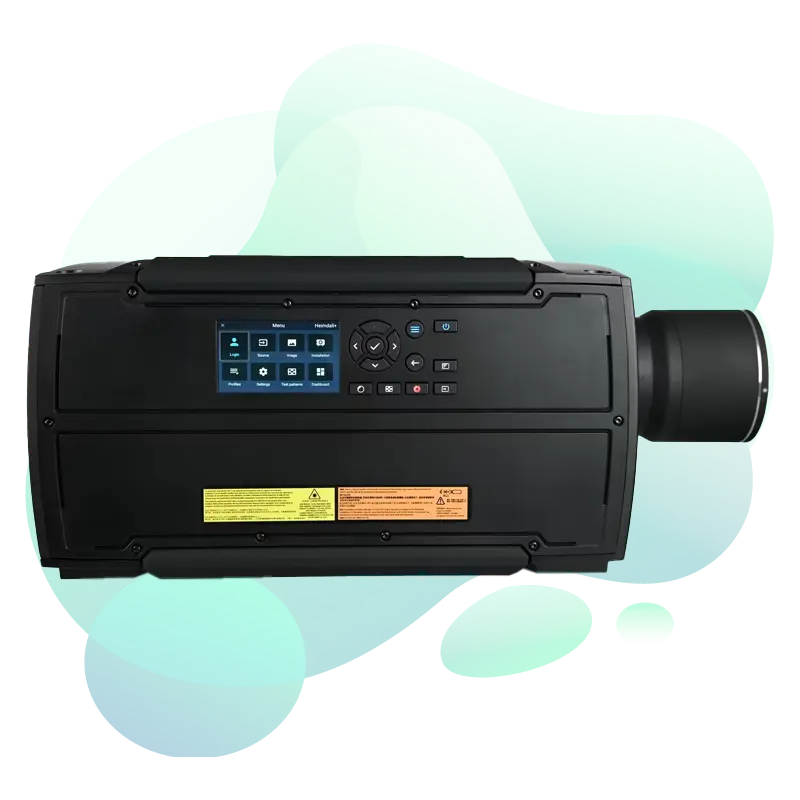

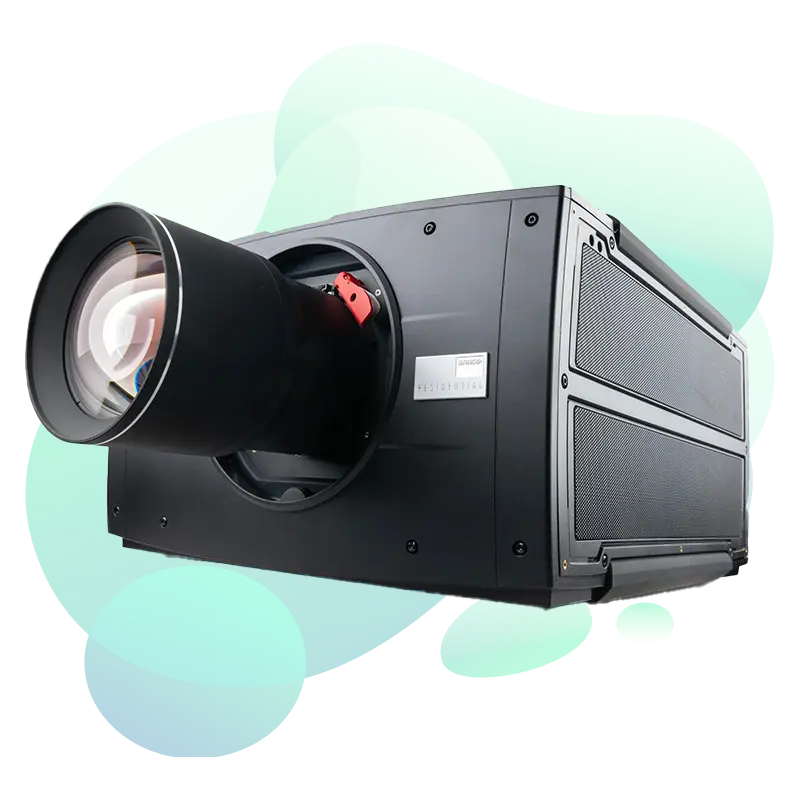

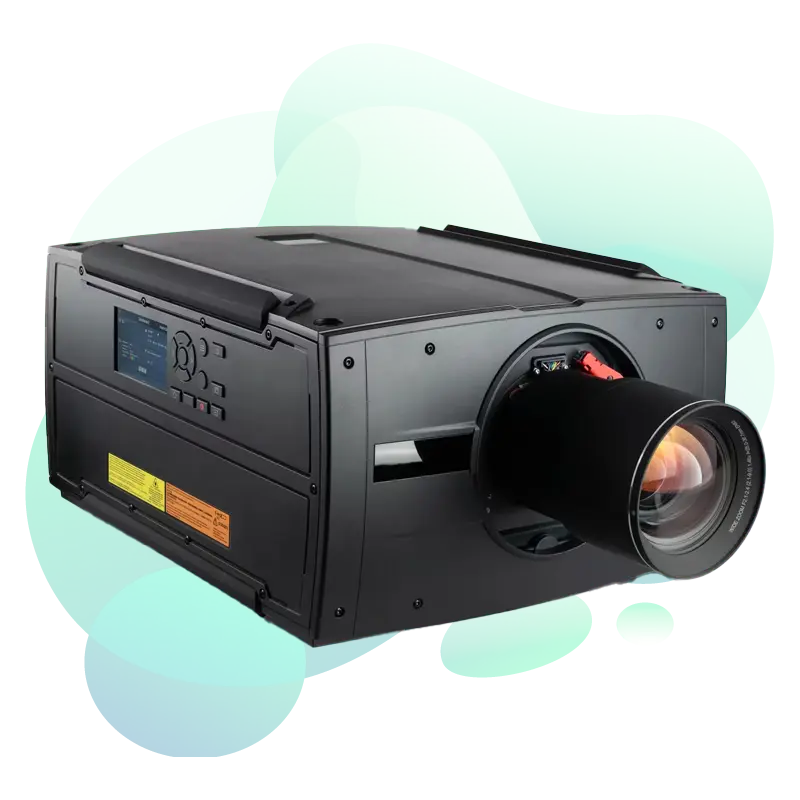

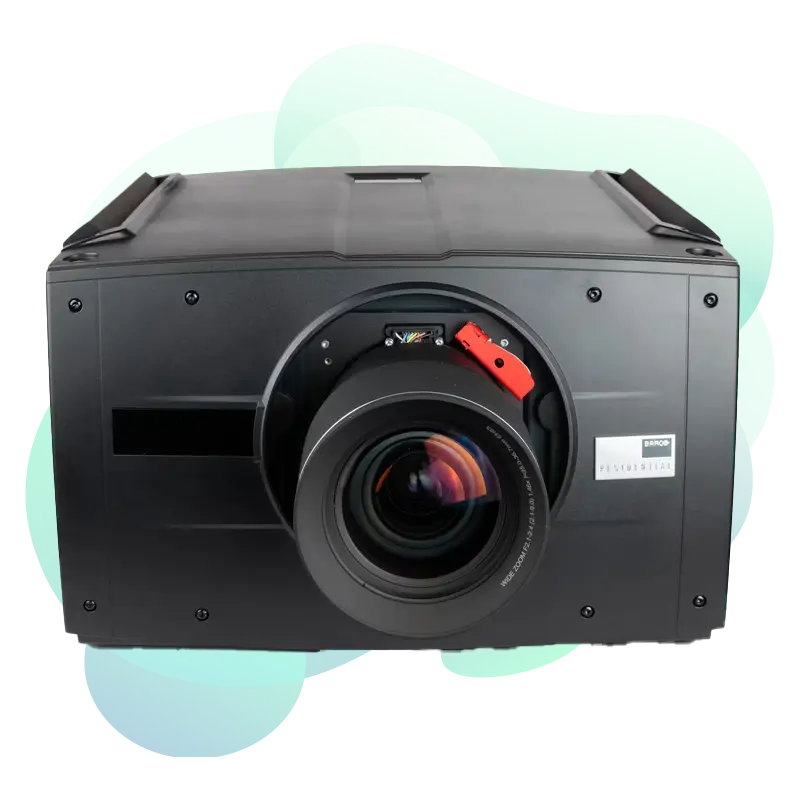

Heimdall / Heimdall CS / Heimdall+ / Heimdall+ CS
Barco Residential Heimdall — Pulse Series, Four-Model Family
Single-chip DLP RGB laser projector family available in four variants: Heimdall (4K, 16:9, 4,500 lumens), Heimdall CS (CinemaScope, 2.37:1, 4,500 lumens), Heimdall+ (4K, 16:9, higher brightness), and Heimdall+ CS (CinemaScope, 2.37:1, higher brightness). All feature native 4K resolution, 98% Rec.2020, DynaBlack dynamic contrast up to 20,000:1, HDMI 2.1, and 25,000-hour RGB laser lifespan.
Overview
In Norse mythology, Heimdall is the watchman of the gods — the all-seeing guardian who illuminates the Bifrost, the rainbow bridge connecting Asgard to the mortal world. His domain encompasses the full spectrum of light. Barco Residential's Heimdall family earns the name: the Pulse Series' highest-performance projectors bring a new generation of RGB laser technology and next-generation Pulse platform electronics to the residential cinema market, with a specification sheet that reads unlike anything in this class before it. The Heimdall family is built on Barco's next-generation Pulse platform, which represents a meaningful advance over the platform used in the Bragi and Balder. Where the earlier Pulse models use HDMI 2.0a and support 4K at 60Hz, the Heimdall advances to **HDMI 2.1** with 4K/120Hz capability — opening the projector to the latest gaming consoles, high frame rate content, and low-latency 4K gaming at frame rates that no earlier residential projector could achieve. The signal path processes up to 4,096 x 2,160 at 120Hz in RGB/YCbCr 4:4:4 12-bit. The RGB laser light engine is a direct-source design with no phosphor conversion stage, covering 98% of the Rec.2020 colour space. Unlike the Balder's laser phosphor engine, there is no spinning colour wheel and no yellow-to-white conversion; the three laser primaries — red, green, and blue — are generated directly, producing spectral colour purity that underpins the Heimdall's exceptional colour volume. The light source is rated for 25,000 hours at full power, and the solid-state design has no moving parts in the illumination path. **DynaBlack** is Heimdall's proprietary dynamic contrast system. It analyses each frame of video in real time, then uses ultra-fast processing combined with laser pulsing to expand the dynamic range: dark scenes are rendered darker, bright scenes brighter, without crushing either end of the tonal range. The result is up to 20,000:1 contrast — a figure that substantially exceeds what the static sequential contrast measurement alone would describe, and which is visible as improved depth and dimensionality in HDR content. The family is available in four models. The standard **Heimdall** (16:9) and **Heimdall CS** (2.37:1 CinemaScope) share the 4,500-lumen output. The **Heimdall+** and **Heimdall+ CS** offer higher brightness output in the same chassis — the correct choice for larger screens, rooms with residual ambient light, or installations demanding maximum headroom. All four variants share the same Pulse platform electronics, RGB laser engine, DynaBlack system, HDMI 2.1 connectivity, 7-lens FLDX ecosystem, 360° free rotation, and Crestron/Control4/RTI/Savant integration.
Downloads & Documentation
Pros & Cons
Strengths
- Four models cover 16:9 and CinemaScope formats at standard and higher brightness — precise match for your room and screen
- CS models project natively across a 2.35:1 scope screen at 5,120 x 2,160 — no anamorphic lens, no masking, no brightness loss
- HDMI 2.1 with 4K/120Hz is a first for Barco Residential — makes the Heimdall the only projector in the range suited to high frame rate gaming and next-gen console use
- DynaBlack dynamic contrast (up to 20,000:1) produces HDR depth that the static contrast figure alone understates
- Direct RGB laser — 98% Rec.2020 — no phosphor conversion, spectral colour purity across the full visible gamut
- 25,000-hour solid-state laser lifespan at full power — no colour wheel, no lamp replacements
- 30 dB(A) operation is the quietest profile in the Barco Residential laser family — in-room ceiling mounting is practical
- Next-generation Pulse platform delivers ultra-low latency at 4K/120Hz — the Heimdall is genuinely gaming-capable
- 7-lens FLDX ecosystem with the new EN83 wide-zoom provides throw flexibility from 0.53:1 to 4.05:1
- Native integration with Crestron, Control4, RTI, and Savant via certified driver modules
Limitations
- Pricing on application — not available at retail; requires an authorized Barco Residential dealer
- Four-model family requires careful specification — consult the Barco Residential Lens Calculator and an authorized dealer to confirm the right variant for your screen and room
- FLDX lenses require the York lens adaptor (R9802623) — not a standard thread connection
- At 31 kg, professional installation is required; not a self-install product
- Static ANSI contrast (below DynaBlack) is in line with the Pulse Series rather than D-ILA competition; the DynaBlack figure applies to HDR content
- HLG support but no HDR10+ or Dolby Vision
- No built-in streaming or smart features; requires a dedicated media source
Full Specifications
Model Comparison
Display — Heimdall / Heimdall+ (16:9)
Display — Heimdall CS / Heimdall+ CS (CinemaScope)
Light Source
DynaBlack Dynamic Contrast
Connectivity
Optics & Lens
Physical
Integrating the Barco Heimdall into Your Home Cinema
The Heimdall family occupies the apex of the Barco Residential Pulse Series — the highest-performance single-chip DLP projectors in the residential range before stepping into the Cinema at Home tier. At Kolosseum, the Heimdall is the projector we specify when a client needs the combination of Rec.2020 colour volume, high brightness, DynaBlack contrast performance, and modern connectivity (specifically HDMI 2.1 with 4K/120Hz) that no lower-tier model provides. The four-model structure gives us unusual precision in matching the projector to the room. For rooms built around standard 16:9 screens, the Heimdall or Heimdall+ is the specification. For rooms designed around CinemaScope screens — where the immersive 2.35:1 format is the primary appeal — the Heimdall CS or Heimdall+ CS fills the scope screen natively at 5,120 x 2,160 without anamorphic attachments or masking. The Plus variants are specified when the room or screen demands higher brightness: larger screens (170"+), rooms where some ambient light is unavoidable, or installations where maximum headroom is valued over cost optimisation. DynaBlack is a genuine performance differentiator. Its frame-by-frame laser pulsing produces HDR that has more dimensional presence than the static contrast figure suggests — dark scenes are visibly deeper, and bright highlights have more punch. Combined with the direct RGB laser's 98% Rec.2020 colour volume, the Heimdall produces an image that is perceptibly more alive and three-dimensional than laser phosphor projectors in the same brightness range.
Room Requirements
The Heimdall family is suited to dedicated cinema rooms with screens from approximately 120" to 200"+ diagonal depending on the model. The standard Heimdall at 4,500 lumens is well matched to screens up to approximately 160" in a dark room; the Heimdall+ provides headroom for larger installations. For the CS models, the screen format is 2.35:1–2.40:1; use the Barco Residential Lens Calculator to confirm the throw distance for your specific scope screen width. Clearance requirements match the Pulse Series standard; ceiling mounting with the 360° rotation capability is the preferred approach for permanent installations. At 30 dB(A), the Heimdall is the quietest laser projector in the Barco Residential range and can be ceiling-mounted in-room without a dedicated projector booth in many installations, though acoustic isolation is still recommended for the finest builds.
Recommended Screen Pairing
For the Heimdall (16:9), we specify Stewart Filmscreen StudioTek 130 G4 or Screen Innovations Black Diamond at 1.0–1.3 gain for rooms with excellent light control. For the Heimdall CS, a scope-format Stewart Director's Choice or custom Screen Innovations panel allows the native 5,120 x 2,160 image to be presented at full resolution. The Heimdall's 98% Rec.2020 colour volume is best served by a neutral-white, unity-gain surface; avoid high-gain screens that would bias the colour temperature. For cinema rooms with dedicated acoustic treatment, consider a perforated screen surface to allow centre-channel speaker placement behind the screen.
Acoustic Considerations
The Heimdall's 30 dB(A) fan profile makes it the most acoustically friendly projector in the Barco Residential laser lineup. In many premium installations, ceiling mounting directly in the cinema room is acceptable — particularly with the Plus variants where a projector booth may not be necessary. However, for absolute silence in a high-calibre dedicated cinema, we still recommend an acoustic enclosure or projector closet with ducted ventilation. The 31 kg weight requires a purpose-designed ceiling mount and structural consideration; the 360° rotation allows precise aiming from any installation angle.
Frequently Asked Questions About the Barco Residential Heimdall — Pulse Series, Four-Model Family.
The Heimdall family has four variants across two dimensions: screen format and brightness level. The standard **Heimdall** (16:9, 4,096 x 2,176, 4,500 lumens) and **Heimdall CS** (CinemaScope, 5,120 x 2,160, 4,500 lumens) are the base models. The **Heimdall+** (16:9) and **Heimdall+ CS** (CinemaScope) offer higher brightness output in the same chassis. All four share identical Pulse platform electronics, RGB laser engine, DynaBlack, HDMI 2.1, lens ecosystem, and installation features. Choose 16:9 for standard widescreen rooms and CS for dedicated CinemaScope/scope screen installations.
DynaBlack is Barco's frame-by-frame dynamic contrast system built into the Heimdall family. It analyses each frame of video content in real time, then uses ultra-fast laser pulse modulation to dynamically vary the light output: dark frames are rendered at reduced laser power (deeper blacks), bright frames at maximum output (brighter highlights). This expands the effective dynamic range to up to 20,000:1 without crushing either shadows or highlights. The effect is particularly visible in HDR content, where scene-by-scene transitions between dark and bright material have more presence and dimensionality than static contrast projectors can achieve.
Yes. The Heimdall is the first Barco Residential projector to feature HDMI 2.1 (HDCP 2.3), which supports 4K/120Hz input. The next-generation Pulse platform processes up to 4,096 x 2,160 at 120Hz in RGB/YCbCr 4:4:4 12-bit. Combined with the ultra-low latency design of the Pulse platform, the Heimdall is the only projector in the Barco Residential Pulse Series that fully supports current-generation gaming consoles (PS5, Xbox Series X) at 4K/120Hz.
The Heimdall CS has a native 5,120 x 2,160 chip at 2.37:1 aspect ratio, designed to fill a CinemaScope or scope screen (2.35:1–2.40:1) natively without any anamorphic lens attachment or horizontal masking. The standard Heimdall has a 4,096 x 2,176 (4K) chip at 1.88:1 for 16:9 rooms. The CS model has a slightly lower brightness rating due to the wider chip area. Both share all electronics, optics, and features.
The Balder uses a laser phosphor light source: a blue laser excites a yellow phosphor to produce white light, which is then split through a colour wheel. The Heimdall uses a direct RGB laser: separate red, green, and blue laser sources generate each colour primary directly, with no phosphor conversion and no colour wheel. This results in spectrally pure primaries, 98% Rec.2020 colour coverage, and a more saturated, accurate colour volume than laser phosphor can achieve. The Heimdall also provides DynaBlack contrast enhancement through laser pulsing — a technique only possible with the direct modulation capability of an RGB laser source.
The Heimdall at 4,500 lumens is well suited to screens up to approximately 160" diagonal in a properly dark, light-controlled room. The Heimdall+ is the right choice for larger screens (160"+), rooms where some residual ambient light is unavoidable (e.g. media rooms without full blackout), or installations where maximum brightness headroom is preferred. Both models are otherwise identical in features, electronics, and image quality.
The Heimdall supports 7 lenses covering throw ratios from 0.53:1 (EN67 ultra-short throw) to 4.05:1 (EN64 long zoom). The new EN83 (1.10–1.61:1) is a wide-zoom lens designed specifically for the Heimdall platform. FLDX lenses require the York lens adaptor (R9802623). The standard lens options are the EN63 (1.06–1.50:1) and EN83 (1.10–1.61:1). Use the Barco Residential Lens Calculator to determine the correct lens for your room and screen size.
We begin by confirming the correct Heimdall variant for your project: 16:9 vs CinemaScope screen format, and standard vs Plus brightness based on screen size and room light control. We then use the Barco Residential Lens Calculator to select the optimal lens for your throw distance, and design mounting, ventilation, and acoustic considerations. The Heimdall's 30 dB operation often allows in-room ceiling mounting without a dedicated projector booth, simplifying the room design. We calibrate the projector to P7 RealColor reference standards on-site, and configure the Crestron/Control4/RTI/Savant integration as part of the complete cinema system commissioning.
Barco Heimdall pricing is on application through authorized Barco Residential dealers. Kolosseum is an independent cinema design consultancy — we specify the Heimdall where it is the correct solution for your project and connect you with authorized dealers for supply and installation. Contact us to discuss your cinema project.
