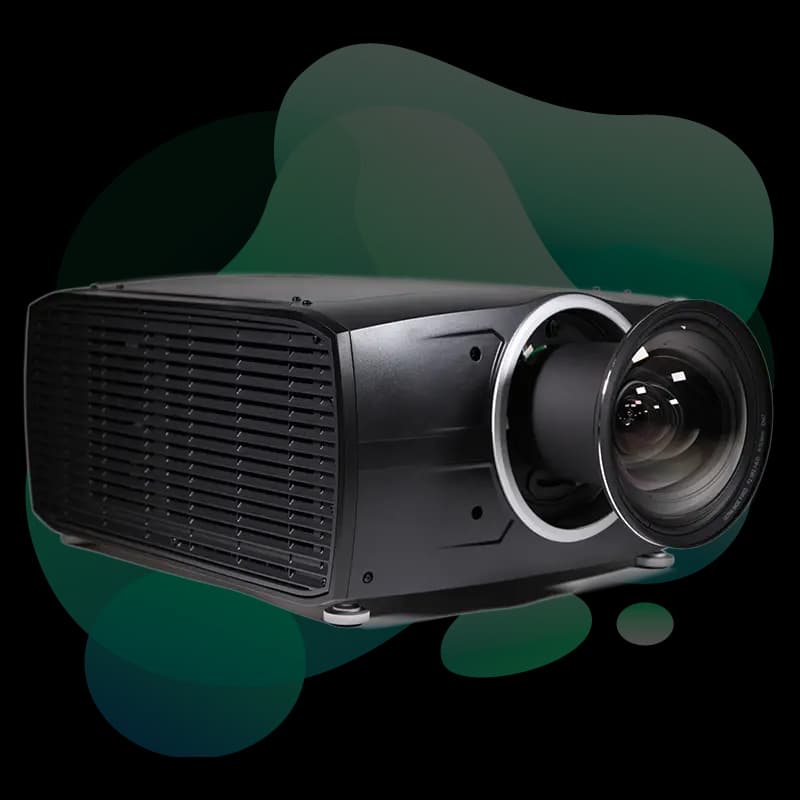

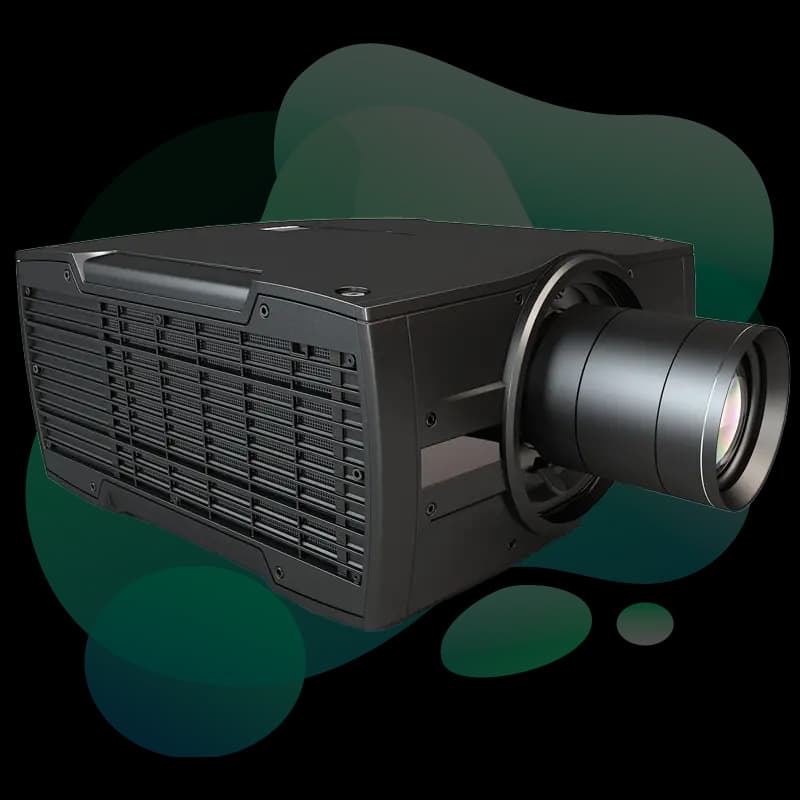

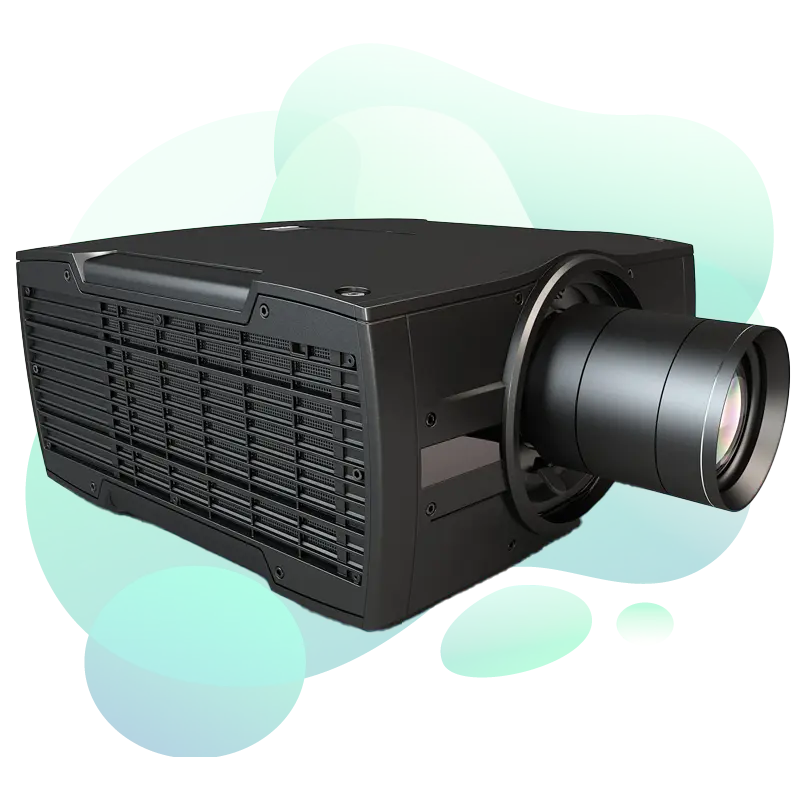

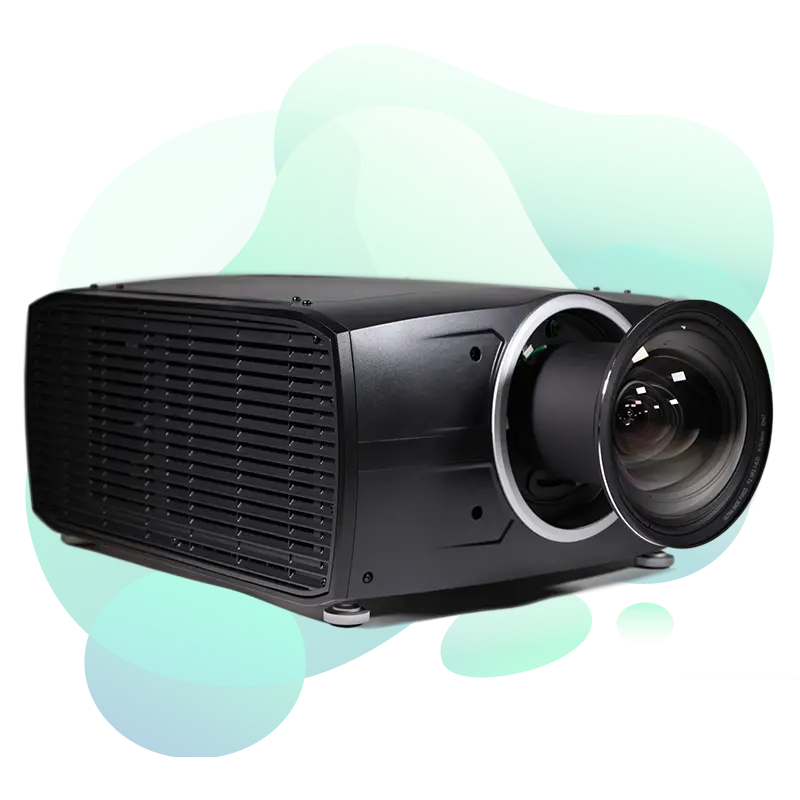

Balder / Balder CS

The key difference is native resolution and aspect ratio. The standard Balder has a native 4K UHD resolution of 3,840 x 2,160 and an aspect ratio of 16:9 (1.78:1) — ideal for widescreen home cinemas and media rooms. The Balder CinemaScope (CS) has a native resolution of 5,120 x 2,160 and a native aspect ratio of 2.37:1, designed specifically for CinemaScope and scope screens (2.35:1 to 2.40:1). Both models share the same Pulse electronics, laser engine, lens range, chassis, and cooling system. If your room has a scope screen, the CS is the correct choice — it fills the screen natively without letterboxing or anamorphic lenses.

No. The Balder CS is purpose-built to project a native 2.37:1 CinemaScope image without any anamorphic lens attachment. The 5,120 x 2,160 chip fills a scope screen natively, which also means you retain the full brightness output across the wider image — unlike a standard 4K projector projecting onto a scope screen with horizontal masking, where you lose brightness in the masked areas.

The Bragi uses an HLD RGB LED light source and is designed for smaller dedicated screening rooms. The Balder uses a laser phosphor light source and delivers significantly higher brightness (up to 7,000 ANSI lumens vs the Bragi's lower output), making it more suitable for larger screens and rooms. The Balder CS adds the CinemaScope native resolution option not available in the Bragi range.

The Balder supports eight lenses from Barco's FLDX range, covering throw ratios from 0.30:1 (periscope/ultra short throw) to 4.60:1 (long throw). The standard zoom lenses are the EN63 (1.20–1.70:1) and EN61 (1.70–2.50:1). Use the Barco Residential Lens Calculator at residentiallenscalculator.barco.com to determine the correct lens for your room dimensions and screen size.

Yes. Barco provides certified driver modules for Crestron, Control4, RTI, and Savant. The Balder also supports RS-232, IP control, IR, 12V trigger, and DMX (in and out), making it one of the most comprehensively integrated projectors for custom installation environments.

Barco's Pulse electronics are built on a superior FPGA platform with a dual-core processor on the industry's only 20nm SoC, delivering 3.3 Tbps of serial bandwidth. The Single Step Processing (SSP) technology processes 4K UHD, HDMI 2.0a, HDCP 2.2, and HDR10 signals with extremely low latency — providing excellent performance for both film viewing and gaming. The same Pulse platform is used across the Bragi, Balder, Freya, Heimdall, and upper-tier Barco Residential models.

The laser phosphor light source is rated for 20,000 to 60,000 hours depending on the intensity setting. With Constant Light Output (CLO) enabled, brightness remains consistent throughout the lamp's life rather than gradually dimming as traditional lamp projectors do. At 4 hours per day, even the conservative 20,000-hour figure represents approximately 13 years of operation.

We evaluate the Balder and Balder CS during the initial design phase of your cinema project. Key decisions include screen format (16:9 vs scope), room dimensions, throw distance, and lens selection. We use the Barco Residential Lens Calculator to optimize projector placement and specify ventilation requirements. For permanent installations we design a hush box or projector closet to eliminate fan noise from the cinema space. We also handle P7 RealColor calibration on-site to ensure the projector is tuned to your specific screen surface and viewing conditions.

The Barco Balder is sold through authorized Barco Residential dealers in Australia; pricing is on application. Kolosseum is an independent cinema design consultancy — we specify the Balder where it is the right solution for your room and connect you with authorized dealers for supply and installation. Contact us to discuss your project.
