DLA-NZ700

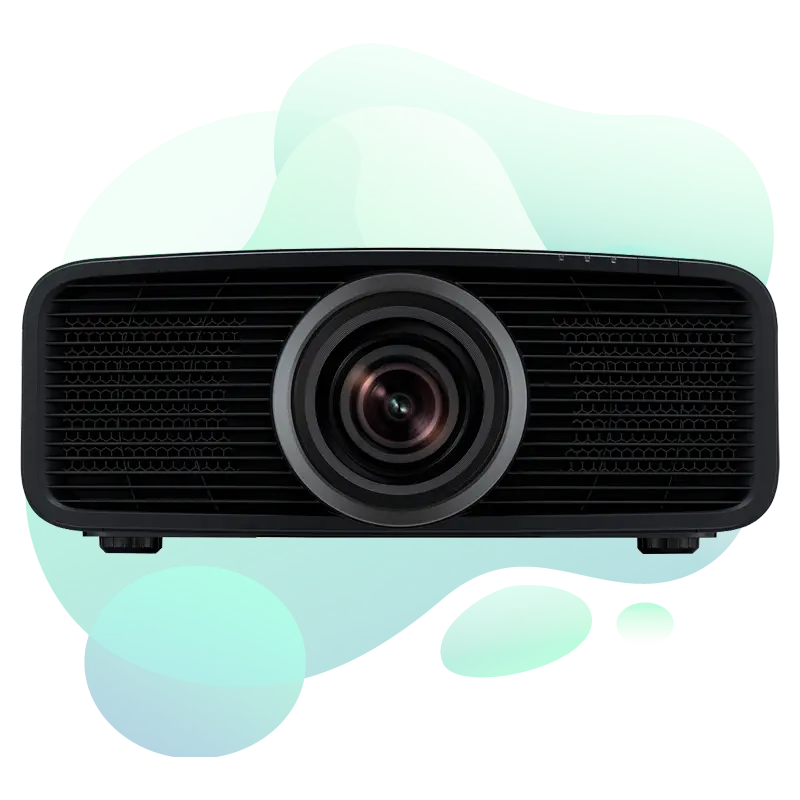

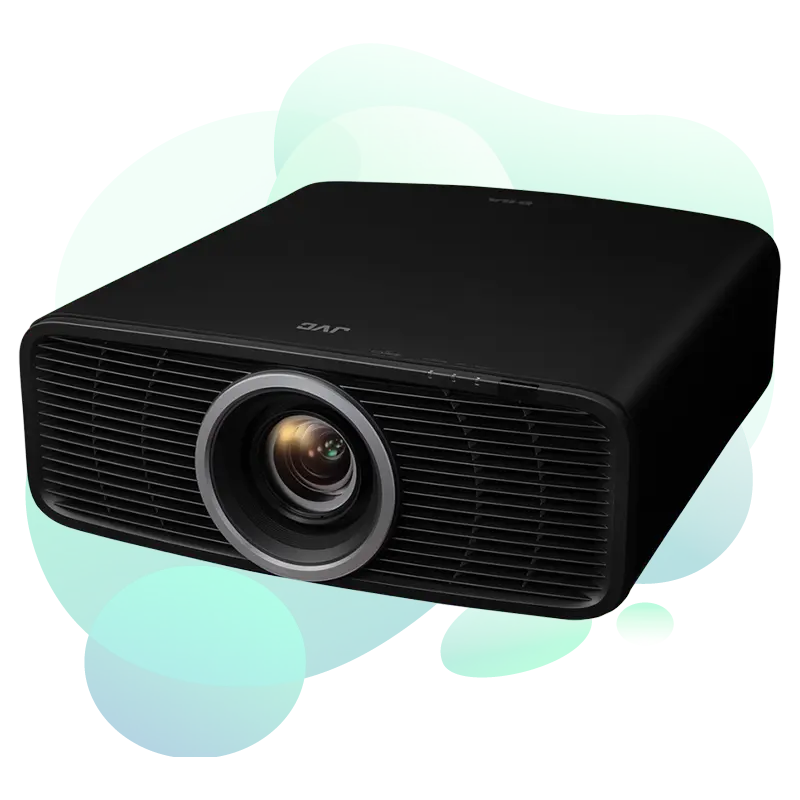

JVC DLA-NZ700 D-ILA Laser Projector
Native 4K D-ILA laser projector with 2,300 lumens, 80,000:1 native contrast, and Gen2 Frame Adapt HDR. Features BLU-Escent laser phosphor light source, HDR10+ support, and a fully motorized 80mm 4K lens.
Overview
The JVC DLA-NZ700 represents a significant step forward in JVC's legendary D-ILA projector lineup. Built around three native 4K (4096 x 2160) D-ILA chips and powered by a BLU-Escent laser phosphor light source, the NZ700 delivers 2,300 ANSI lumens with an 80,000:1 native contrast ratio, extending to Infinite Black dynamic contrast. Its Gen2 Frame Adapt HDR system with HDR10+ and Dynamic Tone Mapping ensures every frame is optimized in real time, preserving shadow detail and highlight brilliance simultaneously. The fully motorized 80mm 4K lens with 1.6x zoom, powered focus, and generous lens shift (70% vertical / 28% horizontal) provides flexible installation options without compromising optical performance. ISF Certified and equipped with JVC Auto Calibration, the NZ700 is engineered for integrators and enthusiasts who demand reference-grade accuracy.
Pros & Cons
Strengths
- Class-leading native contrast ratio for deep, inky blacks
- Gen2 Frame Adapt HDR with scene-by-scene tone mapping produces outstanding HDR performance
- Fully motorized lens with generous shift range simplifies installation
- BLU-Escent laser offers 20,000-hour lifespan with no lamp replacements
- ISF Certified with JVC Auto Calibration for reference-accurate color out of the box
- Lens Memory allows instant switching between aspect ratios (ideal for scope screens)
- HDR10+ support for dynamic metadata from compatible content
- Whisper-quiet 24dB operation in low mode
Limitations
- No Dolby Vision support (common limitation across projector market)
- Maximum 4K/60p input, no 4K/120p for gaming
- Auto calibration requires optional external sensor (sold separately)
- No built-in streaming or smart features (requires external source)
Full Specifications
Display
Light Source
Lens & Projection
HDR & Processing
Connectivity
Physical
Calibration & Certification
Integrating the JVC DLA-NZ700 into Your Home Cinema
The DLA-NZ700 occupies a compelling position in the market: it delivers performance that approaches JVC's flagship models at a price point that makes reference-grade D-ILA technology accessible to a wider audience. At Kolosseum, we frequently specify this projector for dedicated cinema rooms where the client prioritizes image quality and contrast performance above all else. JVC's D-ILA technology produces the deepest native blacks of any projection technology at this price point, which translates to a more immersive, cinema-like experience, especially in properly light-controlled rooms. The 80mm motorized lens with extensive shift range gives us significant flexibility in projector placement, and Lens Memory makes it an ideal candidate for constant-image-height (CIH) setups with 2.35:1 scope screens.
Room Requirements
The NZ700 performs optimally in a dedicated, light-controlled cinema room. For a 120" 16:9 screen, plan for a throw distance of approximately 3.6m to 5.7m depending on zoom position. The projector requires adequate ventilation clearance, with a minimum of 50cm behind the unit and 30cm on each side. Ceiling mounting is recommended for permanent installations, and the generous lens shift means the projector does not need to be precisely centered on the screen. For rooms with ambient light, consider pairing with an ALR (Ambient Light Rejecting) screen, though the NZ700 truly shines in a blacked-out environment where its contrast advantage is most visible.
Recommended Screen Pairing
We recommend pairing the DLA-NZ700 with a Stewart Filmscreen StudioTek 130 G4 or Screen Innovations Zero Edge for 16:9 installations. For constant-image-height setups, a Stewart Director's Choice with CineCurve is our go-to recommendation, taking full advantage of the NZ700's Lens Memory for seamless aspect ratio switching. Screen gain of 1.0 to 1.3 is ideal, as the 2,300-lumen output provides ample brightness for screens up to 150" diagonal in a dark room.
Acoustic Considerations
When ceiling-mounting the NZ700 in a dedicated cinema, acoustic isolation of the projector is important. The unit operates at 24dB in low lamp mode, which is quiet but still audible in a silent room. We recommend a hush box or dedicated projector closet with proper ventilation ducting for the best experience. If the projector must be in-room, plan speaker placement and acoustic treatment to ensure the fan noise does not compete with low-level audio detail.
Frequently Asked Questions About the JVC DLA-NZ700 D-ILA Laser Projector.
The DLA-RS2200 is the custom installation variant of the DLA-NZ700. The hardware is identical, but the RS2200 is sold through JVC's professional/custom install dealer channel. If your integrator quotes an RS2200, you are getting the same projector.
No, the DLA-NZ700 does not support Dolby Vision. This is a common limitation across the projector market due to licensing constraints. However, JVC's Gen2 Frame Adapt HDR with dynamic tone mapping provides excellent HDR performance that many reviewers consider competitive with Dolby Vision processing.
The NZ700 accepts 4K/60p signals via its HDMI 2.3 inputs and includes a low latency mode for gaming. However, it does not support 4K/120Hz, so gamers seeking high refresh rate 4K should consider this limitation. For 1080p gaming, higher refresh rates are supported.
With 2,300 ANSI lumens, the NZ700 comfortably fills screens from 100" to 150" diagonal in a dedicated dark room. For a 120" screen, plan a throw distance of approximately 3.6m to 5.7m. Screens larger than 150" may require careful light control and a unity-gain screen surface.
The BLU-Escent laser phosphor light source is rated for approximately 20,000 hours. At 4 hours of daily use, that translates to roughly 13 years before requiring service. Unlike traditional lamp projectors, there are no user-replaceable lamps.
Frame Adapt HDR is JVC's proprietary tone mapping technology that analyzes each frame of HDR content in real time and dynamically adjusts the tone curve to optimize brightness, contrast, and color for the projector's capabilities. Gen2, found in the NZ700, adds improved algorithms and HDR10+ support for even more precise scene-by-scene optimization.
We consider the NZ700 during the design phase of your cinema, factoring in room dimensions, screen size, ambient light control, and acoustic treatment. We specify the optimal mounting position using the lens calculator, recommend complementary screen surfaces, design the projector ventilation (hush box or closet), and calibrate the unit to ISF reference standards on site. Our design packages include complete integration specifications for your installer.
The JVC DLA-NZ700 has an Australian RRP of approximately $15,999 AUD. Pricing may vary by dealer. Kolosseum does not sell hardware directly; we are an independent design consultancy that specifies the best equipment for your cinema and connects you with authorized dealers for purchase and installation.
