EH-LS12000B

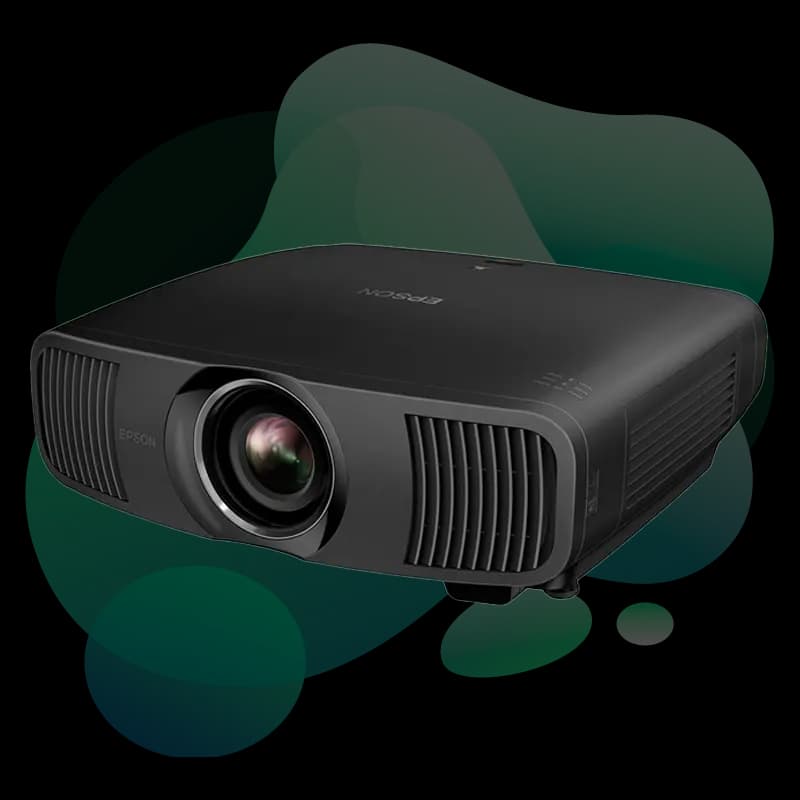

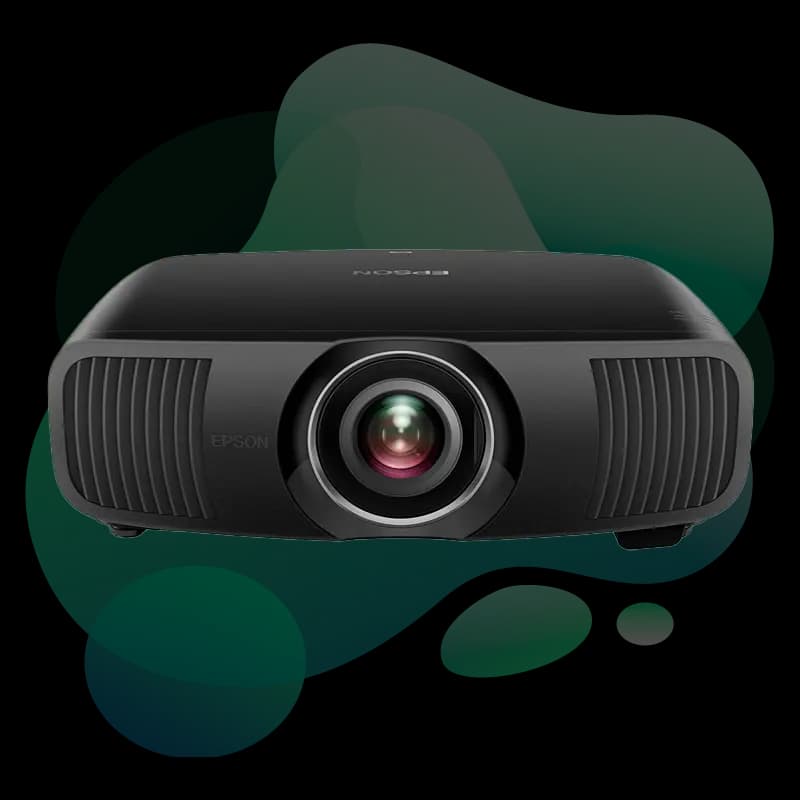

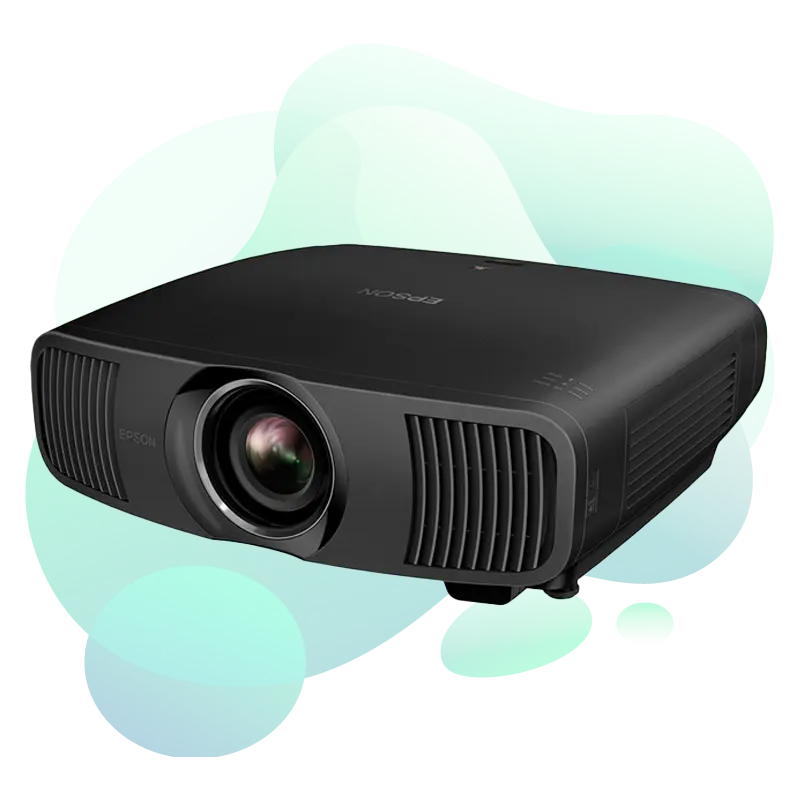

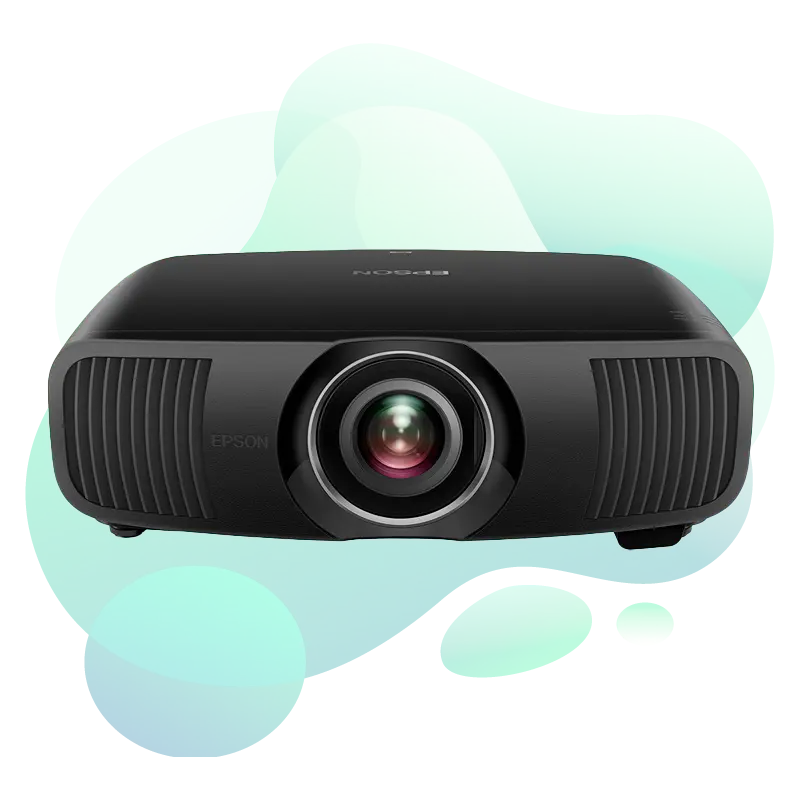

Epson EH-LS12000B 4K Laser Projector
3LCD laser projector with 2,700 lumens, 2,500,000:1 dynamic contrast, HDR10+, and a fully motorized 2.1x zoom lens with generous powered lens shift. Features 4K enhancement, frame interpolation up to 4K 60fps, and eARC support, making it a versatile and well-priced choice for dedicated home cinemas and high-performance media rooms.
Overview
The Epson EH-LS12000B delivers a compelling combination of brightness, contrast, and installation flexibility at a price point that makes it one of the most practical 4K laser projectors for the Australian market. Built around a three-panel 0.74-inch 3LCD optical engine with a laser diode light source, it produces 2,700 lumens of both color and white output, ensuring color fidelity is maintained at full brightness rather than trading one for the other. The 2,500,000:1 dynamic contrast ratio, achieved through auto contrast enhancement and laser dimming, produces deep, convincing blacks in dark scenes while retaining full luminance for HDR highlights. Epson's 4K enhancement technology pixel-shifts the native 1080p panel to deliver 4K-equivalent detail across the full frame, with super resolution processing that resolves fine texture in both native 4K and upscaled content. HDR10+ with dynamic metadata and HLG support are complemented by scene adaptive gamma and advanced image processing. The motorized 2.1x optical zoom lens with ±96.3% vertical and ±47.1% horizontal powered lens shift gives installers considerable freedom in projector placement without optical compromise. Frame interpolation up to 4K 60fps smooths motion in sports and documentary content, while eARC on HDMI 2 allows audio return to an AV receiver without a separate audio cable from the source. For clients seeking a reference home cinema experience at a sensible budget, the EH-LS12000B is among the strongest value propositions in the 3LCD laser category.
Downloads & Documentation
Pros & Cons
Strengths
- 3LCD engine produces equal color and white light output at 2,700 lumens, preventing the color brightness drop seen in some single-chip DLP designs
- 2,500,000:1 dynamic contrast with auto contrast enhancement delivers compelling black levels for a 3LCD projector at this price
- Motorized 2.1x zoom with ±96.3% vertical and ±47.1% horizontal lens shift provides installation flexibility that rivals projectors at twice the price
- HDR10+ with dynamic metadata produces accurate, scene-optimized HDR without the static clipping that affects basic HDR10-only projectors
- eARC on HDMI 2 simplifies audio routing in systems without a dedicated audio extractor
- Frame interpolation up to 4K 60fps noticeably smooths motion in sports, documentary, and broadcast content
- 22 dB quiet mode is among the quietest in class, suitable for in-room ceiling mounting without a hush box in many installations
- Australian 3-year warranty with CoverPlus extended coverage option provides long-term ownership confidence
Limitations
- No Dolby Vision support (shared limitation across the projector market)
- 4K enhancement via pixel-shift rather than native 4K panel, a distinction that matters for critical viewing at close screen distances
- No 4K/120Hz input, limiting high-frame-rate gaming to 1080p or lower resolutions
- No built-in streaming or smart features, requires an external media source
Full Specifications
Display
Light Source
Lens & Projection
HDR & Processing
Connectivity
Physical
Warranty & Support
Integrating the Epson EH-LS12000B into Your Home Cinema
The EH-LS12000B is a projector Kolosseum frequently specifies for clients establishing their first purpose-built cinema room, or for media rooms where the budget requires maximum performance per dollar. Epson's 3LCD technology produces color-accurate images at full rated brightness, which means the 2,700-lumen figure is a genuine working brightness rather than a peak white measurement with color compromised. The motorized zoom and exceptional lens shift range are particularly valuable in retrofit installations where the projector must accommodate an existing room layout without resorting to keystone correction. Paired with a quality fixed-frame screen and a controlled lighting environment, the EH-LS12000B produces results that consistently impress clients who audition it alongside projectors at significantly higher price points.
Room Requirements
For a 120" 16:9 screen, the EH-LS12000B needs a throw distance of approximately 3.6m to 7.6m depending on zoom position, offering considerable installation flexibility. The ±96.3% vertical lens shift means the projector can be placed well above or below the screen centerline without tilting, eliminating geometric distortion. A dedicated, light-controlled room is recommended to take full advantage of the 2,500,000:1 dynamic contrast ratio. At 22 dB in quiet mode, the projector is suitable for in-room ceiling mounting in most configurations, though a hush box remains the preferred option for audiophile-grade silence.
Recommended Screen Pairing
We recommend pairing the EH-LS12000B with a 1.0 to 1.1 gain white screen surface, such as the Stewart Filmscreen StudioTek 130 G4, for the most accurate color representation. For rooms with some residual ambient light, a 0.8-gain ALR screen can recover contrast and color saturation without over-driving the brightness. Avoid screens with gain above 1.3, which can create hot-spotting given the projector's wide lens shift capability when used at offset positions. For constant-image-height scope screen setups, an anamorphic lens adapter combined with the projector's zoom and lens shift provides a flexible solution.
Acoustic Considerations
The EH-LS12000B's 22 dB quiet mode is low enough for most in-room ceiling mount installations without acoustic treatment specific to the projector. For clients who are particularly sensitive to fan noise, or where the projector must operate in a very quiet room at full power mode (30 dB), a simple projector enclosure with passive ventilation can reduce perceived noise to inaudible levels. The 12.7 kg chassis requires a ceiling mount rated for at least 25 kg including bracket weight.
Frequently Asked Questions About the Epson EH-LS12000B 4K Laser Projector.
No. The EH-LS12000B uses a 3LCD panel at 1920 x 1080 and applies Epson's 4K enhancement pixel-shift technology to produce a 4K-equivalent image by rapidly shifting pixels to double the effective resolution. In practice, at normal viewing distances the result is very close to native 4K. For clients who require true native 4K panels, the JVC DLA-NZ700 or Sony VPL-XW6100ES are the recommended alternatives at a higher price point.
No. Dolby Vision is not supported on the EH-LS12000B. This is a universal limitation across the projector market. The projector supports HDR10+ with dynamic metadata, which provides scene-by-scene tone mapping and produces accurate, well-rendered HDR from compatible sources including Apple TV 4K, Amazon Fire TV, and Blu-ray players that output HDR10+.
HDR10 uses static metadata, meaning the tone mapping curve is set once per piece of content based on the mastering parameters. HDR10+ adds dynamic metadata so the tone mapping curve is adjusted scene by scene, or even frame by frame, based on actual content brightness. On a projector with a limited peak luminance relative to a reference HDR display, dynamic metadata allows the projector to allocate brightness more intelligently across the full content, reducing clipped highlights and crushed shadows compared to static HDR10 processing.
The EH-LS12000B accepts HDMI signals up to 4K 60Hz and 1080p at higher frame rates. It does not support 4K/120Hz, so gaming at high refresh rates in 4K is not possible. For film, streaming, and casual gaming it performs very well. Competitive gamers requiring 4K/120Hz would need to look at gaming-specific displays rather than a projector in this class.
eARC (enhanced Audio Return Channel) on HDMI 2 allows the projector to send audio from a connected source back up the same HDMI cable to an AV receiver or soundbar, without requiring a separate audio extraction device. This is useful in simpler systems where the source (such as an Apple TV or streaming device) connects directly to the projector, and audio needs to be passed to an AV receiver. In a fully integrated cinema system with an AV receiver at the centre, eARC is less critical but still a convenient option.
The EH-LS12000B supports screen sizes from 50" to 300" at 16:9 aspect ratio. For a 100" screen, the throw distance is 3.0m to 6.3m depending on zoom position. For a 120" screen, plan for approximately 3.6m to 7.6m. The ±96.3% vertical lens shift allows the projector to be placed well above or below the screen center, giving significant installation flexibility without requiring keystone correction.
We specify the EH-LS12000B during the design phase of cinema rooms where the client budget is focused on maximizing room quality and screen size rather than the projector itself. Our design includes throw distance calculations using the 2.1x zoom range, lens shift planning to accommodate the room layout, screen surface selection to match the 2,700-lumen output, and calibration to reference color standards on site. We connect clients with authorized Epson dealers for purchase and installation.
The Epson EH-LS12000B has an Australian RRP of approximately $6,999 AUD. It represents strong value in the 4K laser projector category. Kolosseum does not sell hardware directly; we are an independent design consultancy that specifies the best equipment for your cinema and connects you with authorized dealers for purchase and installation.
