Krix MX-30i modular cinema speaker

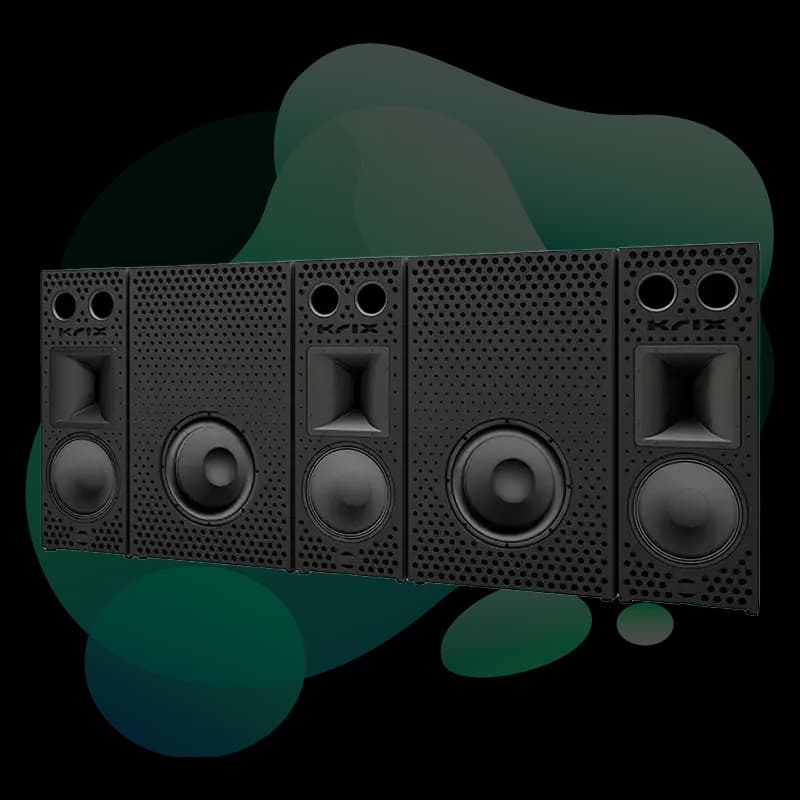

Krix MX-30i angled view
Krix

MX-30i

Krix MX-30i Modular Cinema Speaker

$31,495 AUD
Available
High-output modular LCR platformIntegrated low-frequency sectionDesigned for premium dedicated cinema front stagesAligned with Krix/LEA amplifier matrix planning

MX-30i infrasonic complete set with three main channel modules and two infrasonic subwoofer modules.

Include in My Cinema Design

Overview

The Krix MX-30i (Infrasonic Version) is a complete high-output front-stage system for dedicated theatres. The package includes three main channel modules (left, centre, right) and two infrasonic subwoofer modules, with acoustic treatment on the front baffle and flexible sub module orientation. The system is designed for woven or perforated screen installs and requires an approved DSP-enabled amplifier path.

Resources

Downloads & Documentation

Krix MX-30i Product Page

text/html

Krix MX-30i Specifications Sheet 001 (PDF)

PDF

Krix MX20 / MX30 / MX40 Installation Manual Rev.03 (PDF)

PDF

Pros & Cons

Strengths

  • Excellent dynamic headroom for larger rooms
  • Strong modular integration within MX ecosystems
  • Purpose-built for behind-screen cinema deployments

Limitations

  • Requires approved DSP-capable amplifier path
  • Requires dedicated installation depth and planning
Technical Details

Full Specifications

Open Krix amp pairing matrix

System Package

Complete Set PriceAUD $31,495
Total Dimensions1220mm H (including feet) x 2865mm W x 335mm D
ConfigurationThree main channel modules + two infrasonic subwoofer modules

Main Channel Modules (x3)

High FrequencyKrix proprietary horn, 25mm (1") throat, 35mm (1 3/8") compression driver
Low Frequency1 x 380mm (15") bass driver per module
Baffle TreatmentAcoustic treatment on front baffle

Infrasonic Subwoofer Modules (x2)

Driver1 x 455mm (18") bass driver per module, 100mm (4") voice coil, 50mm peak-to-peak displacement
Frequency Range10Hz - 200Hz (with DSP)
OrientationDual terminal plate design allows 180-degree module rotation for top/bottom driver placement
Subwoofer Module PriceAUD $6,905 each (can be purchased separately)

Optional Low Frequency Absorption Spacer Modules

FunctionIncrease system width to better match woven/perforated screen sizes and improve low-frequency reflection absorption
DesignFront baffle openings under acoustic treatment with internal absorbing material
200mm SpacerAUD $1,995 per pair
325mm SpacerAUD $2,395 per pair
Purchase NoteSpacers are purchased as pairs to maintain system symmetry

Amplifier Requirement

DSP RequirementApproved amplifier with DSP required - consult a Krix Certified System Designer
Official Product Pagehttps://www.krix.com.au/product/mx-30i
Reference DocumentsMX-30i Specifications Sheet 001 and MX20/MX30/MX40 Installation Manual Rev.03
Kolosseum Design Perspective

MX-30i Integration Guidance

At Kolosseum, MX-30i is specified when the room and performance target justify a premium modular front stage with strong headroom and discrete amplifier control.

Room Requirements

Dedicated room with baffle wall and behind-screen depth planning.

Recommended Screen Pairing

Optimised for acoustically transparent projection screens.

Acoustic Considerations

Front-wall treatment and calibrated DSP integration are recommended.

Common Questions

Frequently Asked Questions About the Krix MX-30i Modular Cinema Speaker.

The MX-30i Infrasonic complete set is AUD $31,495.

Yes. MX-30i subwoofer modules can be purchased separately at AUD $6,905 each.

Yes. Optional low frequency absorption spacer modules are available in 200mm (AUD $1,995 per pair) and 325mm (AUD $2,395 per pair).
