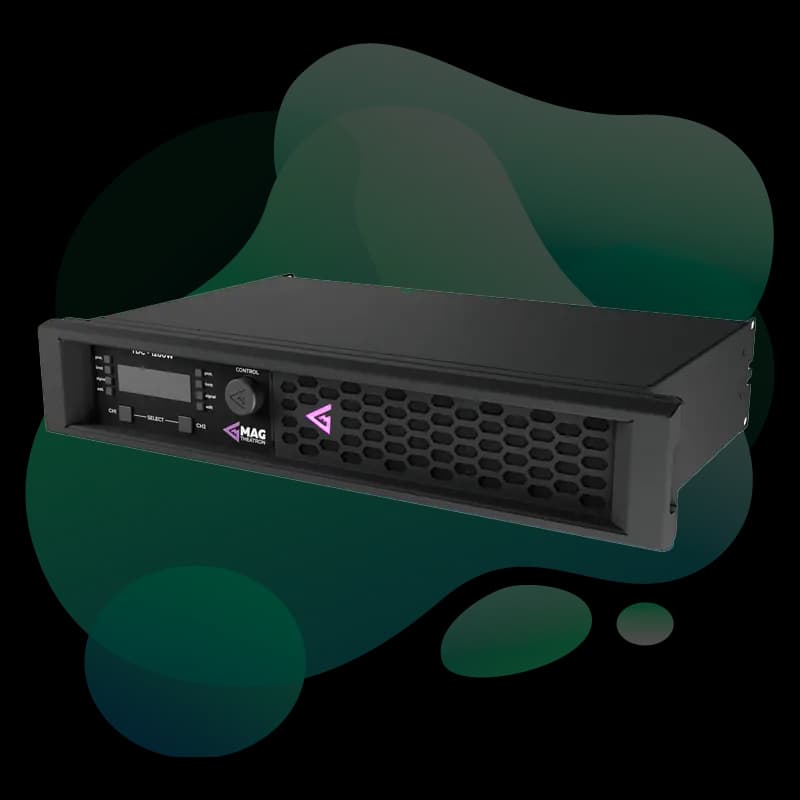

MAG Theatron TDC-1200W DSP amplifier
MAG Theatron logo

TDC-1200W

MAG Theatron TDC-1200W DSP Amplifier

$3,100 AUD
Available
2-channel Class D with integrated DSP600 W/ch at 4 ohmBrowser-based setup and monitoringBalanced and unbalanced input pathsBridge mode support

2-channel DSP amplifier for home cinema channels and subwoofer duties with balanced/unbalanced inputs and web control.

Include in My Cinema Design

Overview

TDC-1200W is a compact 2RU Class D amplifier for cinema systems needing efficient high output and straightforward DSP control. It provides per-channel EQ, delay, polarity, and gain settings through a browser-based interface, with balanced and unbalanced connectivity plus pass-through balanced outputs for fast rack linking.

Resources

Downloads & Documentation

TDC-1200W Product Page

text/html

TDC-1200W Datasheet

PDF

TDC Series User Manual

PDF

Pros & Cons

Strengths

  • Strong output in a compact 2U chassis
  • Useful onboard DSP for channel optimization
  • Straightforward installer workflow

Limitations

  • Two-channel format requires multiple units for larger systems
  • Best performance depends on proper calibration
Technical Details

Full Specifications

Amplification

Channels2
TopologyClass D
Power per channel (4 ohm)600 W
Power per channel (8 ohm)400 W
Bridged power (8 ohm)1200 W
Bridged power (16 ohm)600 W

DSP & Connectivity

DSP controls6-band parametric EQ, volume, polarity, delay
Inputs2 x RCA unbalanced, 2 x XLR balanced
Outputs2 x XLR balanced link
NetworkRJ-45 Ethernet (Web UI)
Speaker output4-pin Phoenix terminal

Performance & Physical

Frequency range20 Hz - 20 kHz
S/N ratio100 dB
Damping factor> 10000 (8 ohm, 100 Hz)
Dimensions486 x 87 x 294 mm (2U)
Weight5.25 kg
Kolosseum Design Perspective

Integrating MAG Theatron TDC-1200W

At Kolosseum, TDC-1200W is used for surround, height, or compact sub amplifier duties where integrated DSP and compact rack footprint are priorities.

Acoustic Considerations

Apply per-channel EQ and delay after speaker placement and crossover planning for coherent system voicing.

Common Questions

Frequently Asked Questions About the MAG Theatron TDC-1200W DSP Amplifier.

Yes, it supports bridged operation at higher output power.
