THE10 Passive On Wall

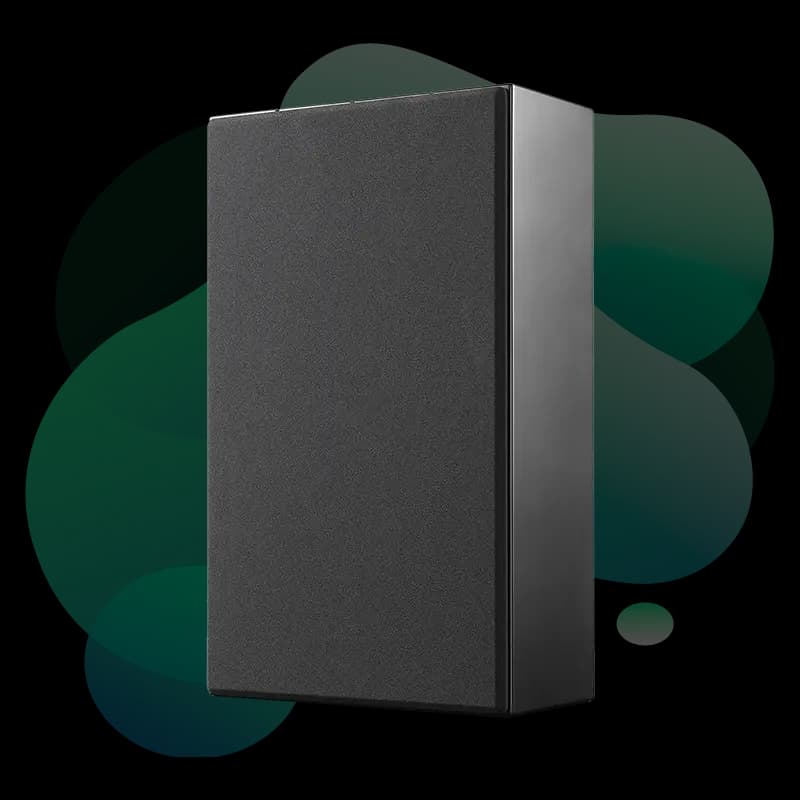

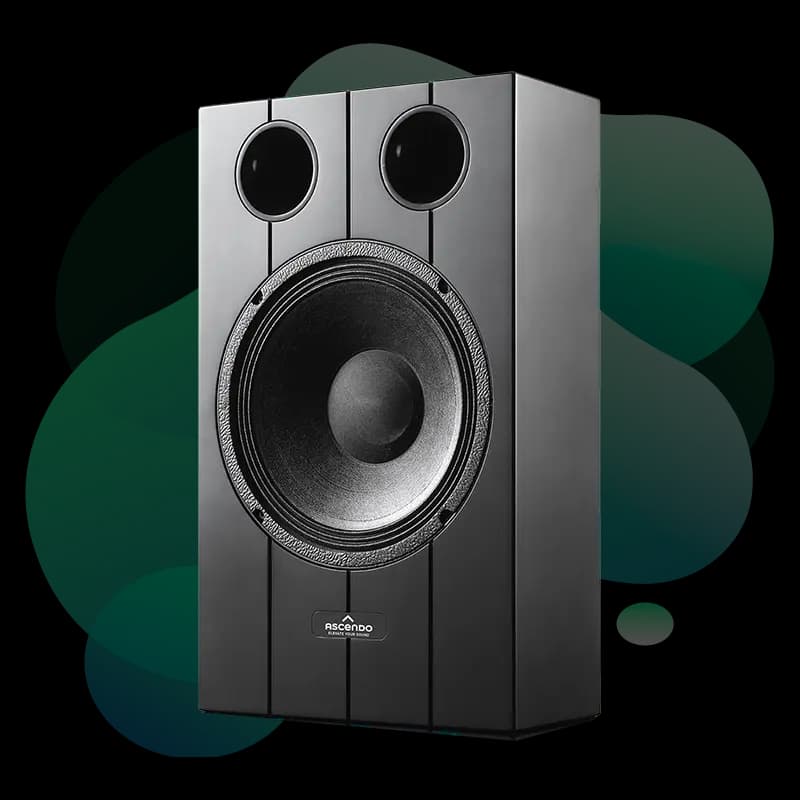

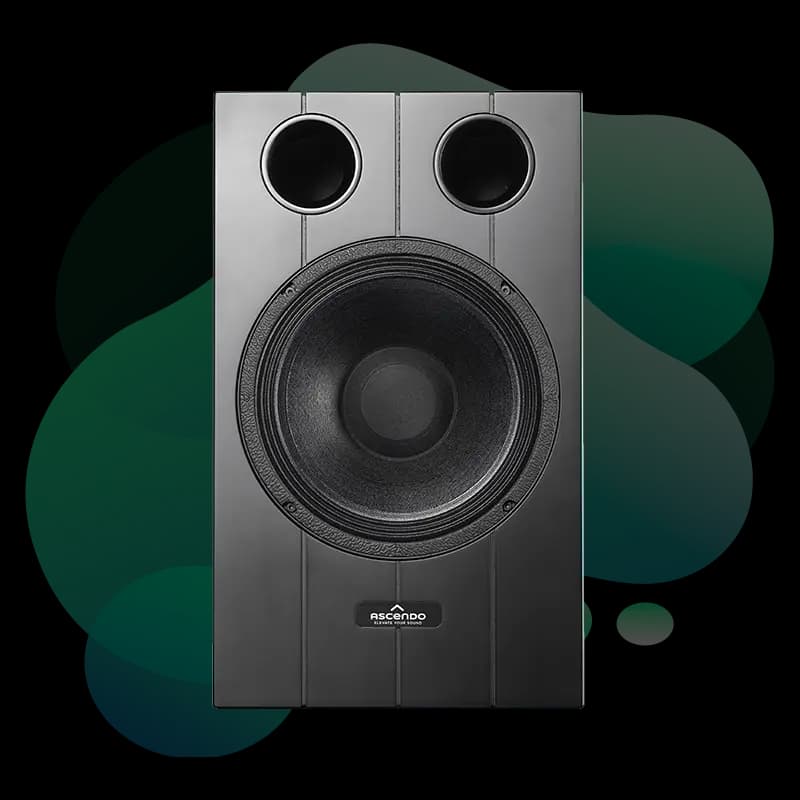

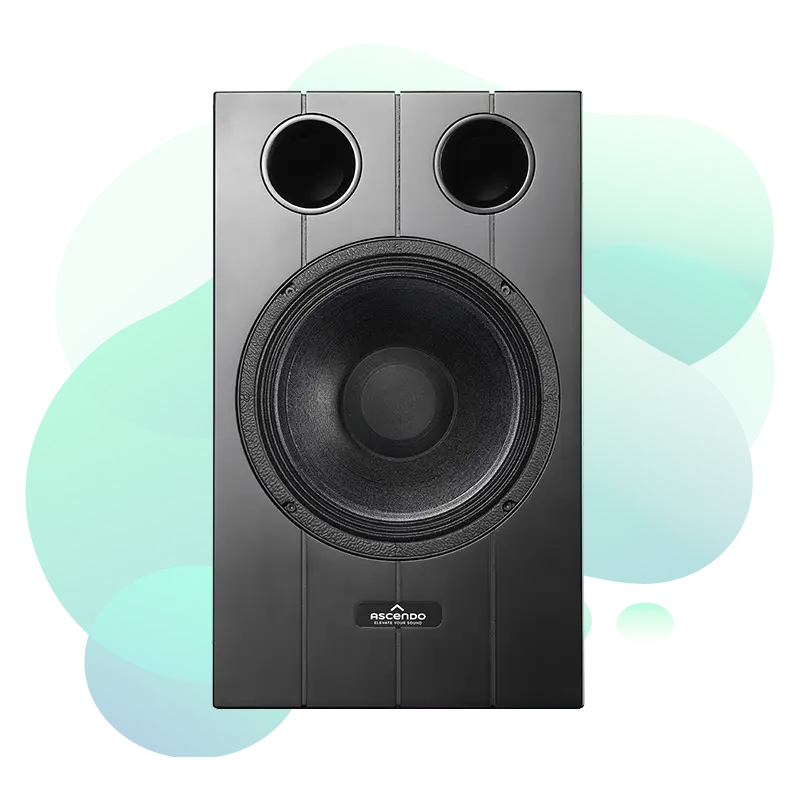

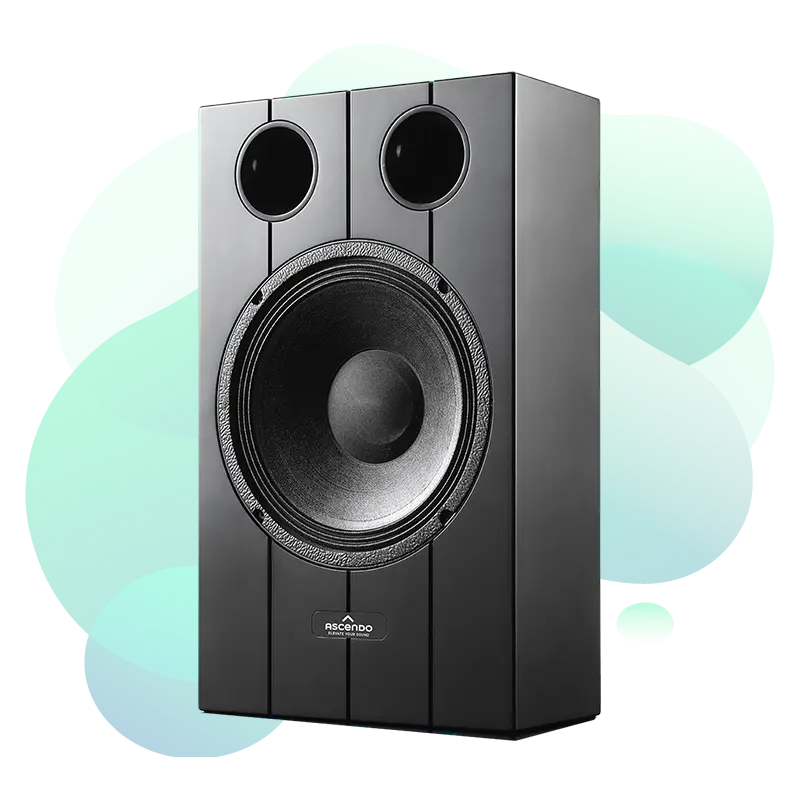

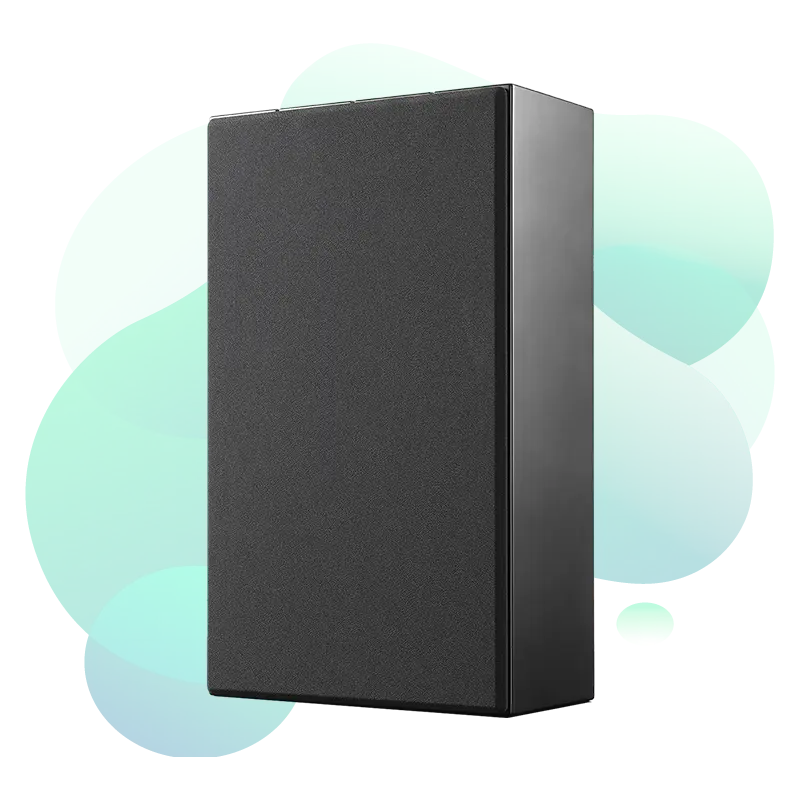

Ascendo THE10 Passive On Wall Speaker
10" coaxial passive on-wall speaker with 120 dB continuous SPL, 85°×85° directivity, and 500W power handling. A high-output LCR and surround option for demanding private cinema installations.
Overview
The ASCENDO THE10 Passive On Wall is a large-format on-wall loudspeaker centred on a 10" time-coherent point-source coaxial driver in a vented passive enclosure. Stepping up from the THE6, it delivers a substantial increase in output capability: 120 dB continuous and 130 dB peak SPL with 97 dB sensitivity at 1W/1m. The 8Ω nominal impedance and 500W power handling make it compatible with high-performance passive multichannel amplification. Frequency range of 100 Hz to 20 kHz (-3 dB) is suited to use with a properly configured subwoofer system. Controlled directivity at 85°×85° matches the THE6 pattern, enabling consistent timbre and imaging when mixing model sizes across LCR and surround positions. At 300×500×145mm and 12.0 kg, the THE10 is a substantial but wall-mountable enclosure for medium-to-large cinema rooms.
Pros & Cons
Strengths
- 97 dB sensitivity delivers high output without excessive amplifier power
- 130 dB peak SPL handles the most dynamic cinema content without compression
- Coaxial point-source maintains excellent time coherence and imaging
- Consistent 85°×85° directivity with THE6 allows matched mixed-model installations
- Passive design integrates with any quality multichannel amplifier platform
Limitations
- At 12 kg, requires sturdy wall mounting hardware
- 100 Hz lower limit necessitates subwoofer support
- Passive — requires quality external amplification to realise full output potential
Full Specifications
Transducer
Performance
Electrical
Physical
Integrating the Ascendo THE10 Passive On Wall as LCR and Surround
Kolosseum specifies the THE10 Passive On Wall as a primary LCR or high-output surround speaker in medium-to-large private cinemas. Its 97 dB sensitivity and 130 dB peak output make it suitable for rooms where high dynamic range reproduction is a priority, without stepping to an active speaker system.
Room Requirements
The THE10 is well suited to rooms from 30–80 m². At 12 kg, wall mounting must be planned with adequate fixings. Low-frequency management via subwoofer is essential below 100 Hz.
Recommended Screen Pairing
When used as an LCR, the THE10 can be installed behind an acoustically transparent screen. Its controlled directivity ensures consistent on-axis response across a wide seating area.
Acoustic Considerations
The coaxial driver and predictable 85° coverage simplify acoustic treatment design. We measure and verify coverage overlap between LCR and surround positions during room commissioning.
Frequently Asked Questions About the Ascendo THE10 Passive On Wall Speaker.
The THE10 uses a larger 10" coaxial driver and delivers 9 dB more sensitivity (97 vs 90 dB/W/m) with 10 dB more continuous SPL capability. It is suited to medium-to-large rooms where the THE6 would be insufficient.
Its frequency range starts at 100 Hz, so a subwoofer is required for full-range reproduction. In cinema applications, low-frequency management to a dedicated sub system is strongly recommended regardless.
Yes. Its wide horizontal directivity and coaxial design deliver consistent dialogue reproduction across a broad seating area, making it an excellent centre channel choice.
With 97 dB sensitivity and 500W power handling, most quality 8Ω multichannel amplifiers in the 100–300W per channel range will drive the THE10 to very high output levels. Higher power allows greater headroom for dynamic peaks.
