THE6 Passive On Wall

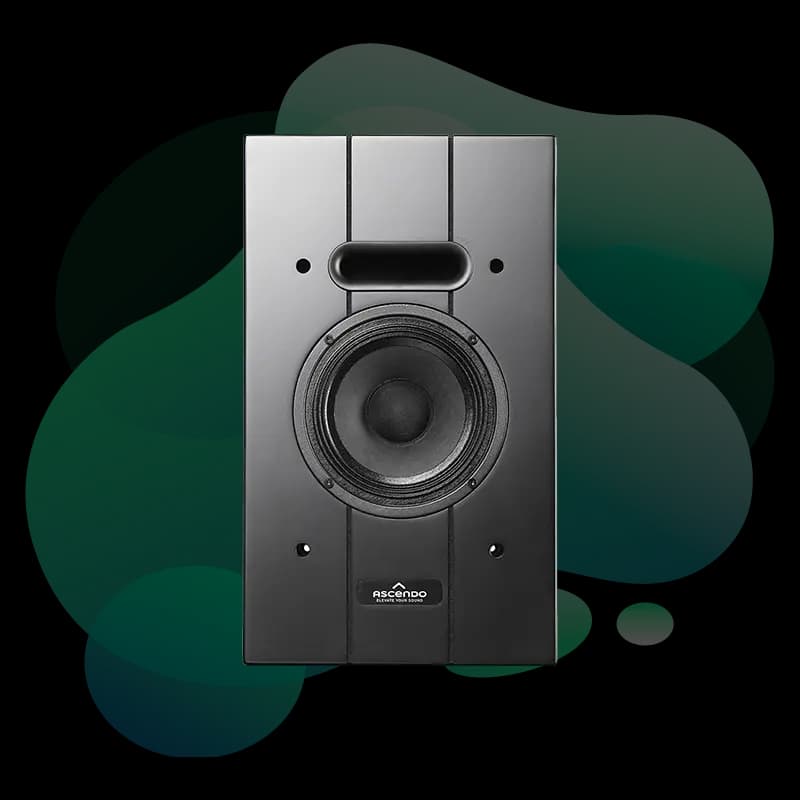

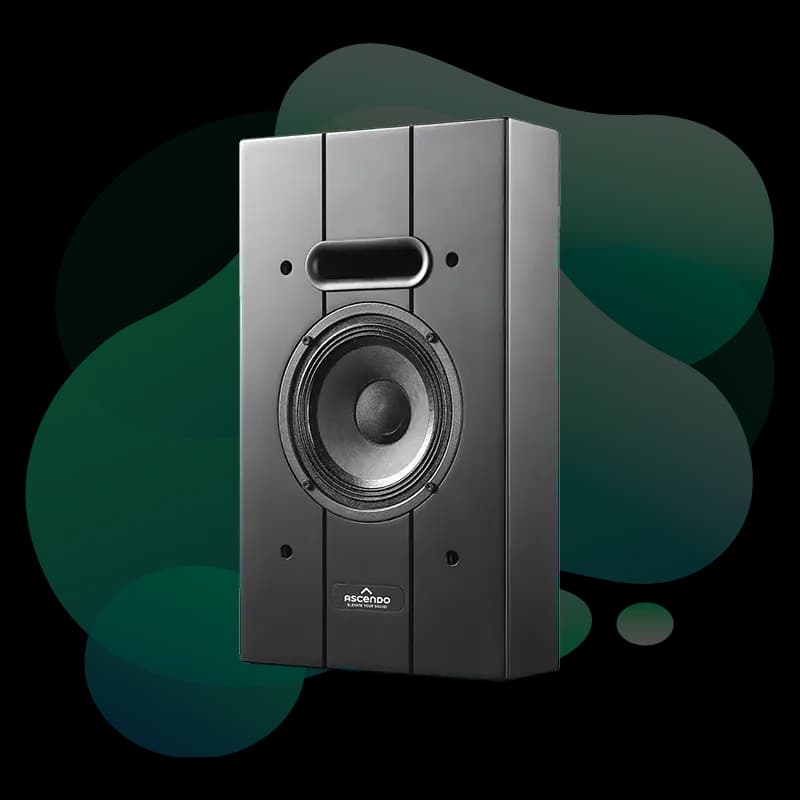

Ascendo THE6 Passive On Wall Speaker
Compact 6.5" coaxial passive on-wall speaker with 85°×85° directivity, 111 dB continuous SPL, and VESA 100x100 mounting. Ideal for LCR, surround, and height positions in immersive home cinema systems.
Overview
The ASCENDO THE6 Passive On Wall is a high-performance compact on-wall loudspeaker built around a 6.5" time-coherent point-source coaxial driver in a vented passive enclosure. The coaxial design aligns the acoustic centres of the woofer and tweeter on a single axis, delivering consistent imaging and tonality across a wide 85°×85° directivity pattern that remains predictable throughout the coverage zone. With 111 dB continuous and 122 dB peak SPL, 90 dB sensitivity at 1W/1m, and an 8Ω nominal impedance, the THE6 is straightforward to drive with quality multichannel amplification. A frequency range of 95 Hz to 20 kHz (-3 dB) makes this speaker ideal for use with a properly configured subwoofer system. Available in matte black or white glossy finish, it mounts via four wall brackets or VESA 100x100 for flexible positioning across LCR, surround, and height roles.
Pros & Cons
Strengths
- Coaxial point-source design delivers excellent time coherence and imaging
- Wide, predictable 85°×85° directivity makes coverage planning straightforward
- Compact on-wall form factor suits a wide range of installation positions
- Good sensitivity reduces amplifier headroom requirements
- Available in both black and white to suit room aesthetics
Limitations
- Passive design requires quality external multichannel amplification
- 95 Hz low-frequency cutoff requires a subwoofer in any full-range system
- Compact enclosure limits ultimate low-frequency headroom versus larger models
Full Specifications
Transducer
Performance
Electrical
Physical
Integrating the Ascendo THE6 Passive On Wall in Immersive Cinema Systems
Kolosseum specifies the THE6 Passive On Wall across a range of positions in immersive cinema builds — from surround and height channels in smaller rooms to LCR duties where screen depth is at a premium. Its consistent coaxial directivity simplifies room prediction and speaker placement design across complex multi-channel layouts.
Room Requirements
The THE6 is suited to small-to-medium cinema rooms and to surround or height positions in larger theatres. Low-frequency management via a dedicated subwoofer system is essential given the 95 Hz rolloff.
Recommended Screen Pairing
When used as an LCR, the THE6 can be installed behind an acoustically transparent screen. Its controlled 85°×85° coverage keeps energy well directed for consistent dialogue intelligibility.
Acoustic Considerations
The wide directivity of the coaxial driver should be considered in highly reflective rooms. We pair the THE6 with appropriate absorption and diffusion to optimise its natural imaging strength.
Frequently Asked Questions About the Ascendo THE6 Passive On Wall Speaker.
Any quality passive multichannel amplifier driving 8Ω loads at up to 200W per channel is suitable. Higher-sensitivity systems like this respond well to moderate amplifier power.
Its frequency range starts at 95 Hz, so a subwoofer is required in any full-range home cinema system for correct bass reproduction and impact.
Yes. Its compact size, VESA mounting, and wide directivity make it an excellent choice for height and Atmos overhead positions where wall or soffit mounting is preferred over in-ceiling.
Both use the same 6.5" coaxial driver. The Wedge version adds a 30° angled enclosure for installations where the speaker is mounted on a flat surface but needs to be aimed toward the listening position.
Compare Alternative Speakers.
THE6 Passive Wedge 30
ASCENDO 6.5" coaxial passive speaker in wedge format for angled surround and height channel installation.
View Details →THE10 Passive On Wall
ASCENDO 10" point-source coaxial passive on-wall speaker. 97dB sensitivity, 120/130 dB SPL, 85°×85° dispersion. Excellent for LCR and large surround positions.
View Details →THE12 Passive On Wall
ASCENDO 12" point-source coaxial passive on-wall speaker. 99dB sensitivity, 121/133 dB SPL, 85°×85° dispersion. Premium screen channel performance.
View Details →Ready to Design Your Cinema Around the THE6 Passive On Wall?
Kolosseum is an independent design consultancy, not a retailer. We design the complete cinema experience and connect you with authorized dealers for purchase and professional installation.
Tell us about your room, your budget, and your vision. We will create a complete cinema design that integrates the Ascendo THE6 Passive On Wall Speaker with the right screen, speakers, acoustics, and seating.
