THE12 Sub Active Vented

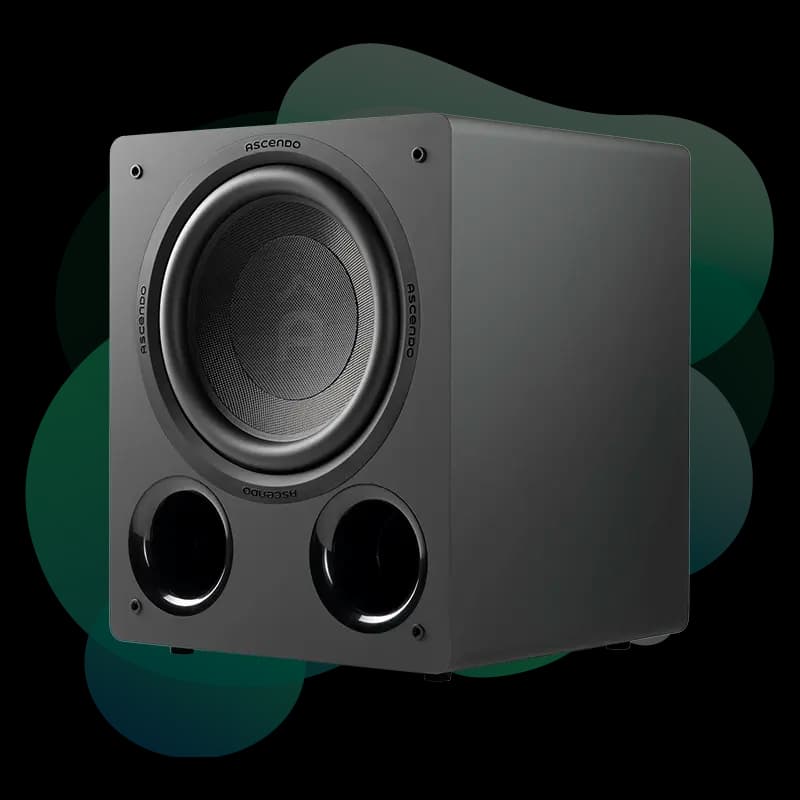

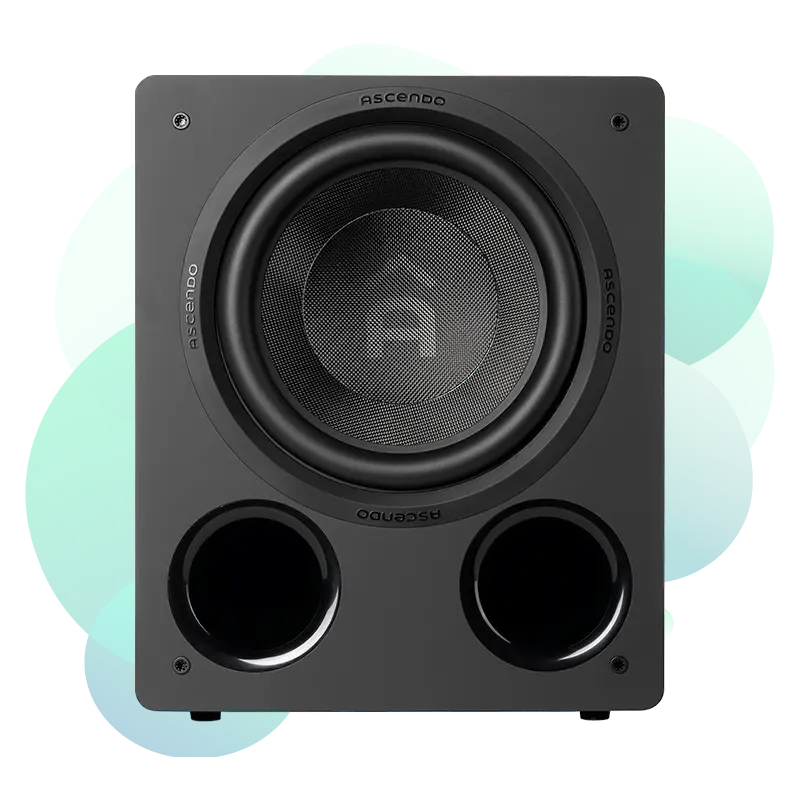

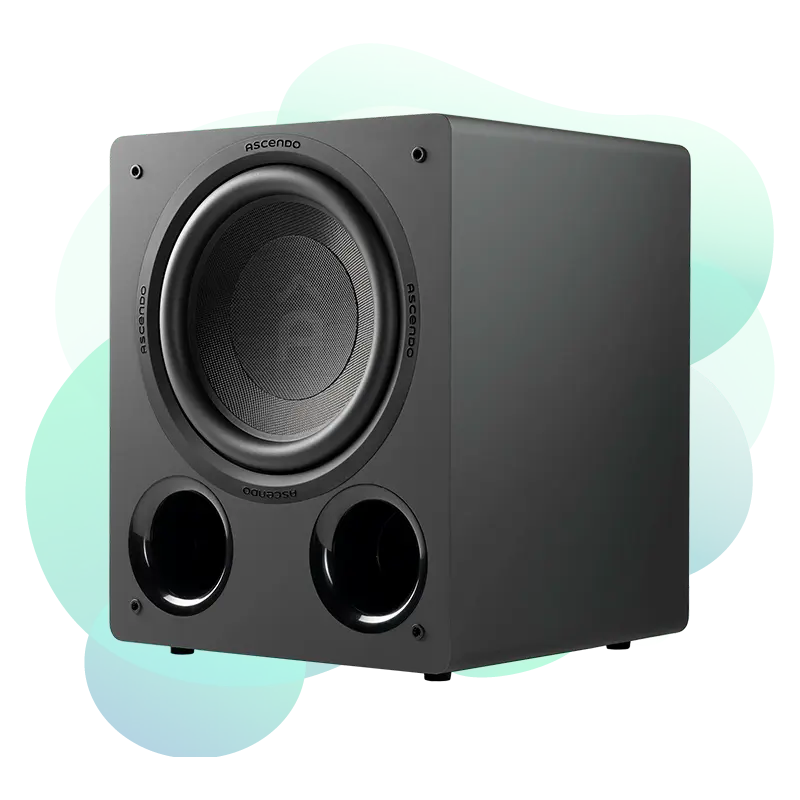

Ascendo THE12 Sub Active Vented Subwoofer
Compact active vented subwoofer with 12" composite cone driver, 600W RMS class D amplifier, built-in DSP, and 112 dB SPL at 28 Hz. A high-performance self-contained subwoofer for private cinema.
Overview
The ASCENDO THE12 Sub Active Vented is a fully self-contained compact subwoofer designed for high-performance home cinema installations where space efficiency is a priority. A 12" forward-firing composite cone driver with 20mm one-way XMAX (40mm linear travel) operates in a vented enclosure, extending low-frequency response to 28 Hz at -3 dB. The built-in 600W RMS class D amplifier is paired with ASCENDO's onboard DSP processing, allowing precise frequency shaping, protection limiting, and integration alignment within a multichannel subwoofer system. Peak SPL of 112 dB at 28 Hz represents exceptional output for the 400×490×400mm footprint. The active self-contained design simplifies installation — signal in, mains in, and the subwoofer is ready for calibration with no external amplifier required.
Pros & Cons
Strengths
- Self-contained active design simplifies installation and eliminates external amplifier requirement
- Built-in DSP enables precise crossover, EQ, and protection without additional hardware
- 28 Hz extension in a compact enclosure delivers impressive low-frequency reach
- 40mm linear driver excursion allows high output with low distortion
- Class D amplifier efficiency minimises heat generation in enclosed equipment spaces
Limitations
- Single 12" driver — multiple units recommended for large rooms or high-SPL requirements
- Vented tuning optimised for bass extension; sealed alternatives offer tighter transient response
- Active design means mains power must be routed to the subwoofer position
Full Specifications
Transducer
Performance
Amplification & DSP
Physical
Integrating the Ascendo THE12 Sub Active Vented in Private Cinema
Kolosseum specifies the THE12 Active Vented as a compact and self-contained subwoofer option for private cinemas where installation space is constrained or where a modular approach to bass — deploying multiple units — is preferred. Its DSP allows individual unit tuning for multi-subwoofer arrays.
Room Requirements
Effective in rooms from 20–50 m². For larger rooms or higher SPL targets, multiple THE12 Active Vented units or stepped-up THE32 Active Sealed subwoofers are recommended.
Acoustic Considerations
Vented alignment extends deep bass but introduces group delay at the tuning frequency. We account for this in system-level EQ and crossover alignment during calibration to maintain transient accuracy.
Frequently Asked Questions About the Ascendo THE12 Sub Active Vented Subwoofer.
For rooms up to approximately 40 m², a pair of THE12 Active Vented units provides good output and room distribution. Larger rooms or higher SPL targets typically require additional units or a step up to the THE32 Active Sealed.
Yes. The built-in DSP includes crossover, EQ, and protection limiting. It can be configured to match the crossover point set in the room processor (e.g. Trinnov, StormAudio).
Yes, provided adequate ventilation is maintained for the class D amplifier. We plan enclosure dimensions and ventilation during the design phase.
Vented enclosures extend deep bass efficiently but can be more susceptible to room boundary interactions than sealed designs. We assess room acoustics to determine the optimal enclosure type and positioning.
Compare Alternative Subwoofers.
THE15 Sub Passive Vented
ASCENDO 15" passive vented subwoofer for use with external amplification. High-excursion driver for deep accurate bass in premium cinema rooms.
View Details →THE16 Sub Pro Passive Sealed Shallow
ASCENDO PRO-series 16" passive sealed shallow subwoofer. Engineered for depth-constrained custom cinema installations.
View Details →THE32 Sub Pro Active Sealed
ASCENDO world-record 32" infrasonic subwoofer. 6,000W active, 90mm linear travel, 140 dB @ 32Hz. Displaces air equivalent to fifteen standard 18" subs.
View Details →Ready to Design Your Cinema Around the THE12 Sub Active Vented?
Kolosseum is an independent design consultancy, not a retailer. We design the complete cinema experience and connect you with authorized dealers for purchase and professional installation.
Tell us about your room, your budget, and your vision. We will create a complete cinema design that integrates the Ascendo THE12 Sub Active Vented Subwoofer with the right screen, speakers, acoustics, and seating.
