THE15 Sub Passive Vented

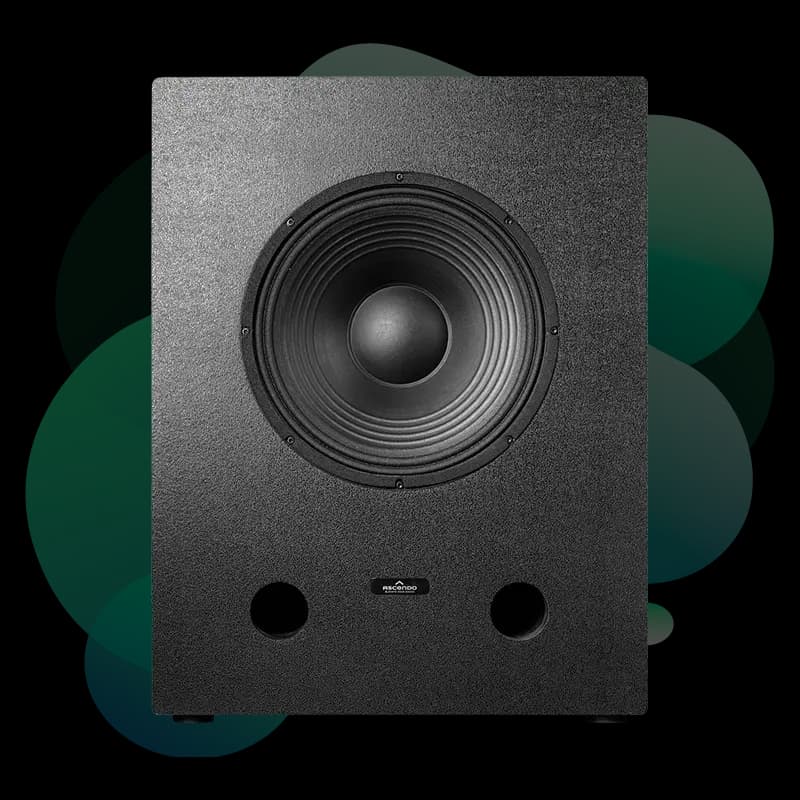

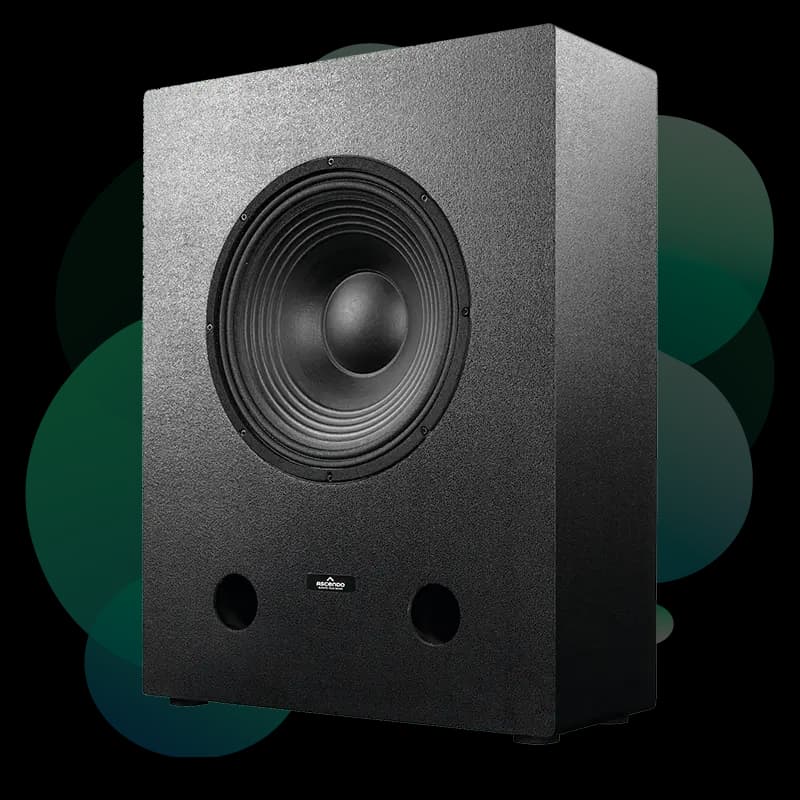

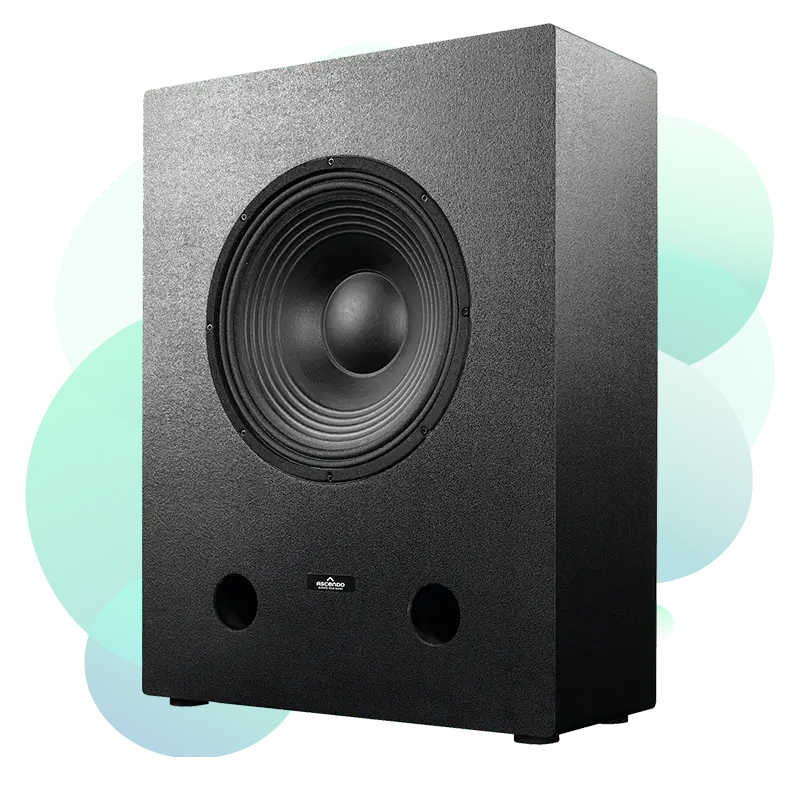

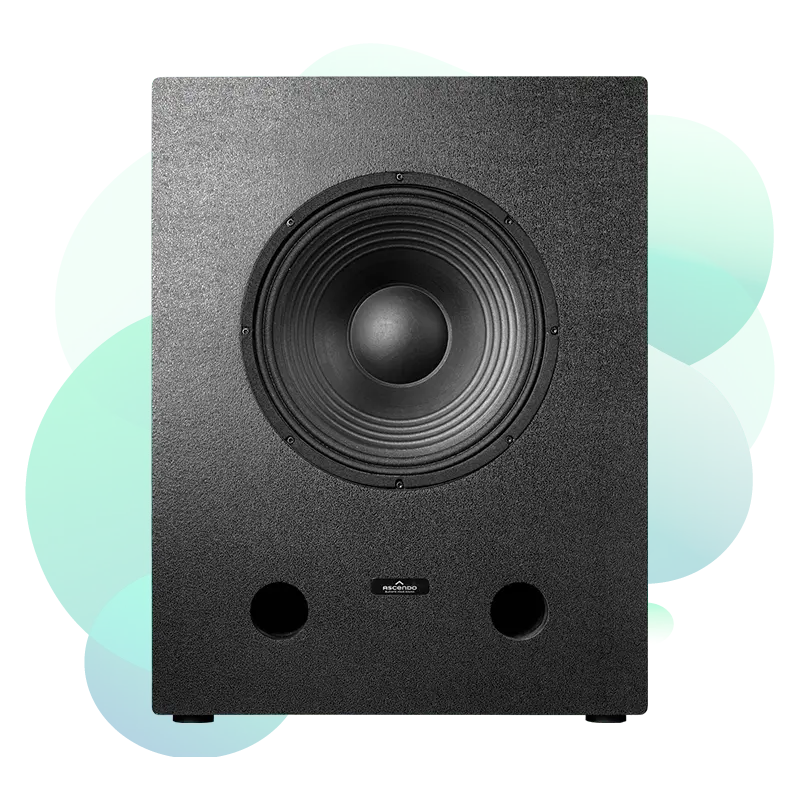

Ascendo THE15 Sub Passive Vented Subwoofer
ASCENDO THE15 passive subwoofer with 15" driver in a vented enclosure. Designed for use with external amplification, delivering deep bass extension and high output for private cinema applications.
Overview
The ASCENDO THE15 Sub Passive Vented is a 15" passive subwoofer in a ported enclosure designed for high-performance home cinema installations where external amplification is preferred or already part of the system architecture. The 15" driver in a vented cabinet delivers deep bass extension suited to cinema-grade soundtrack reproduction, with a form factor and output capability that bridges the compact THE12 Active Vented and the PRO-series sealed designs. Using a passive subwoofer allows amplifier selection to be optimised independently — pairing the THE15 with a high-current class D or AB subwoofer amplifier from the equipment rack enables precise control over headroom and protection. The passive design also eliminates amplifier heat from the speaker enclosure location, which can be beneficial in tight installation environments.
Pros & Cons
Strengths
- Passive design allows best-in-class external amplification pairing
- 15" driver delivers greater cone area than the THE12 for higher output and deeper extension
- Eliminates amplifier heat at the subwoofer position — useful in enclosed risers
- Compatible with any quality subwoofer amplifier from the equipment rack
Limitations
- Passive design requires a dedicated external subwoofer amplifier
- Vented alignment introduces some group delay at the tuning frequency versus a sealed alternative
- No built-in DSP — EQ and crossover management handled externally
Full Specifications
Transducer
Performance
Electrical
Integrating the Ascendo THE15 Sub Passive Vented in Private Cinema
Kolosseum specifies the THE15 Passive Vented where a mid-tier passive subwoofer is appropriate and the client architecture already includes a high-quality rack-mounted subwoofer amplifier. It works well alongside Trinnov or StormAudio processor platforms that include powerful bass management and EQ.
Room Requirements
Suited to medium cinema rooms. For large rooms or extreme SPL targets, the THE32 Active Sealed or THE64 passive provide greater displacement. Subwoofer placement is assessed as part of the acoustic design.
Acoustic Considerations
Vented tuning is efficient for deep bass but requires careful integration with the room processor EQ to maintain flat response through the crossover region. We measure and verify subwoofer performance as part of every commissioning process.
Frequently Asked Questions About the Ascendo THE15 Sub Passive Vented Subwoofer.
Any high-current subwoofer amplifier rated for the driver impedance and capable of at least 500–1000W RMS is appropriate. Kolosseum can advise on amplifier pairing as part of the system design.
Yes. Multiple passive subwoofer units can be driven from a multi-channel subwoofer amplifier or separate mono amplifiers per unit. This approach allows distributed placement for improved room mode management.
It will function, but for optimal performance in any cinema room we strongly recommend a room processor with bass management, crossover, and EQ capabilities such as Trinnov or StormAudio.
The THE15 has a larger 15" driver for greater cone area and output capability, but requires an external amplifier. The THE12 Active Vented is self-contained. The right choice depends on system architecture and space constraints.
