THE6 Passive Wedge 30
Ascendo THE6 Passive Wedge 30 Speaker
Compact 6.5" coaxial passive speaker in a 30° wedge enclosure for angled on-wall or surface installation. Ideal for surround and height positions where directed aim toward the listening zone is required.
Overview

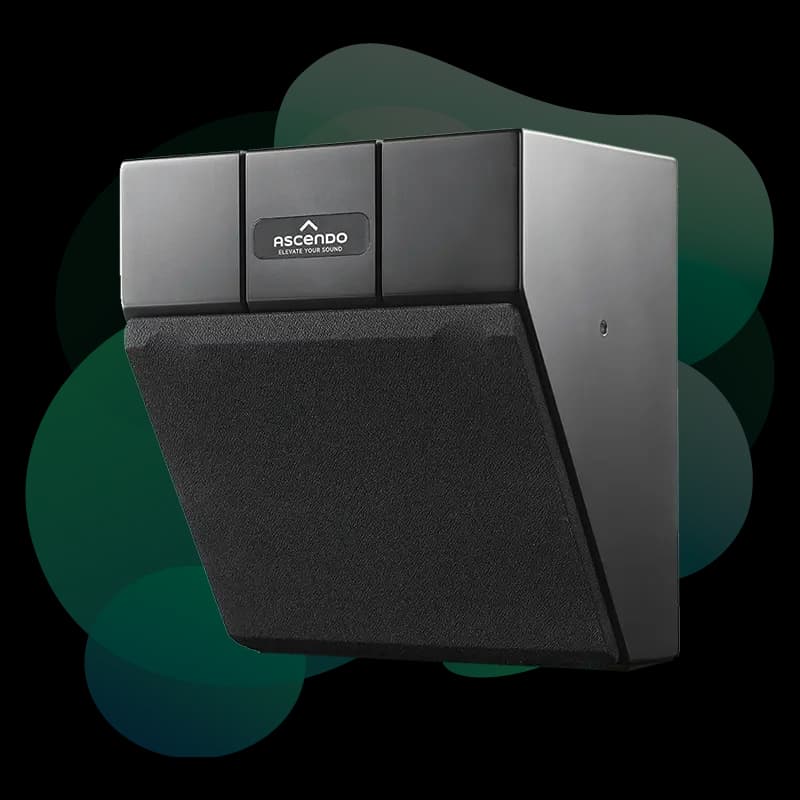

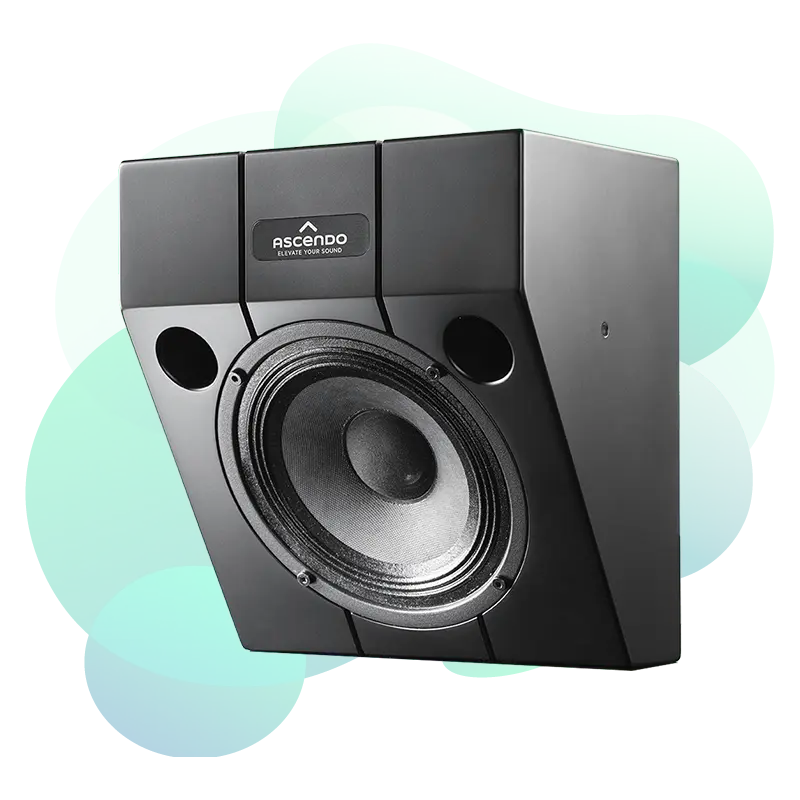

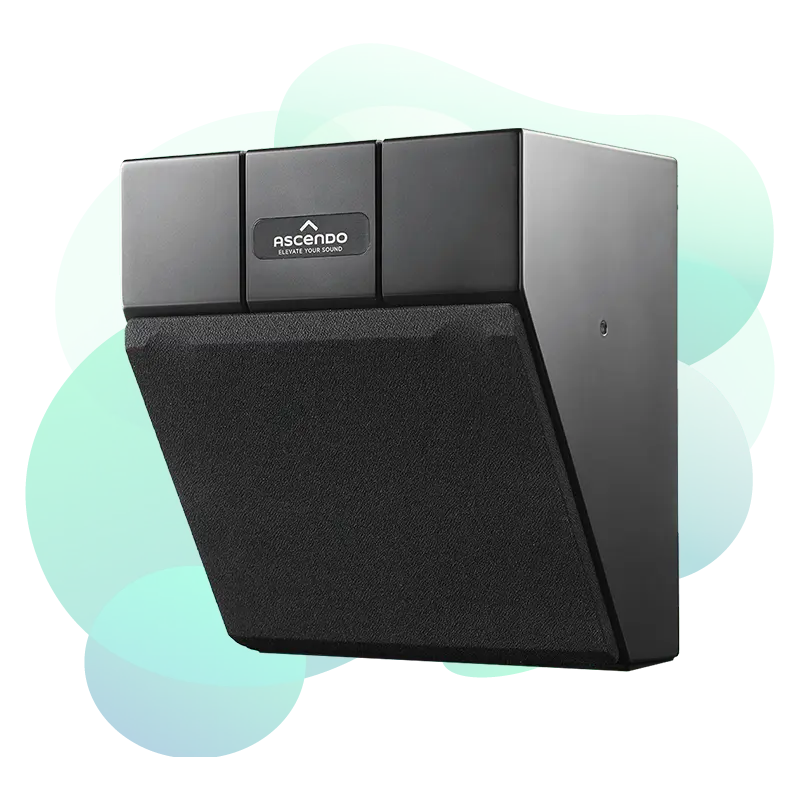

The ASCENDO THE6 Passive Wedge 30 uses the same 6.5" time-coherent point-source coaxial driver and vented passive enclosure as the THE6 On Wall, but housed in a 30° angled wedge form factor. This allows the speaker to be surface-mounted on a flat wall or soffit and automatically aim its coverage toward the listening area without the need for separate angled brackets. The result is a cleaner installation with consistent directivity across the 85°×85° pattern, maintaining the coaxial driver's imaging precision in positions such as side surrounds, rear surrounds, and overhead height channels. Performance specifications mirror the THE6 On Wall: 111 dB continuous, 122 dB peak, 95 Hz to 20 kHz frequency range, 90 dB sensitivity, and 8Ω nominal impedance.
Pros & Cons
Strengths
- 30° wedge allows flat surface mounting with natural aim toward listening zone
- Eliminates need for separate angled brackets, simplifying install
- Identical driver performance to the THE6 On Wall for consistent timbre across positions
- Wide, controlled directivity maintains imaging predictability in surround and height positions
Limitations
- Fixed 30° angle — may not suit installations requiring a different aim offset
- Passive design requires external multichannel amplification
- 95 Hz lower limit requires subwoofer support for full-range reproduction
Full Specifications
Transducer
Performance
Electrical
Physical
Integrating the Ascendo THE6 Passive Wedge 30 in Surround and Height Arrays
Kolosseum uses the THE6 Wedge in positions where a clean flush-to-surface mount is required and where the 30° offset aligns naturally with the listening axis. It is particularly effective in side-wall surround positions and overhead height mounting where a separate angled bracket would create a more complex installation.
Room Requirements
Suitable for small-to-medium cinema rooms in surround and height roles. The wedge angle should be verified during layout design to confirm the driver aims toward the primary listening zone.
Acoustic Considerations
The coaxial point source and predictable directivity of the THE6 platform simplify coverage modelling. We verify aim and overlap between adjacent height and surround channels during commissioning.
Frequently Asked Questions About the Ascendo THE6 Passive Wedge 30 Speaker.
The driver and performance specifications are identical. The difference is the 30° angled enclosure, which allows the speaker to be mounted flush to a flat surface while directing its output at an angle toward the listening area — eliminating the need for separate angled mounting hardware.
Yes, the enclosure is moulded at 30°. For installations requiring a different angle, ASCENDO also offers the THE6 On Wall with compatible angled mounting accessories.
Yes. The wedge angle and compact size make it well suited to Atmos and DTS:X height positions on side walls or upper sidewalls, where it aims naturally down toward the listening plane.
Yes. With a lower frequency limit of 95 Hz, a dedicated subwoofer system is required for full-range reproduction in any home cinema application.
