Panoramic Surface On Wall

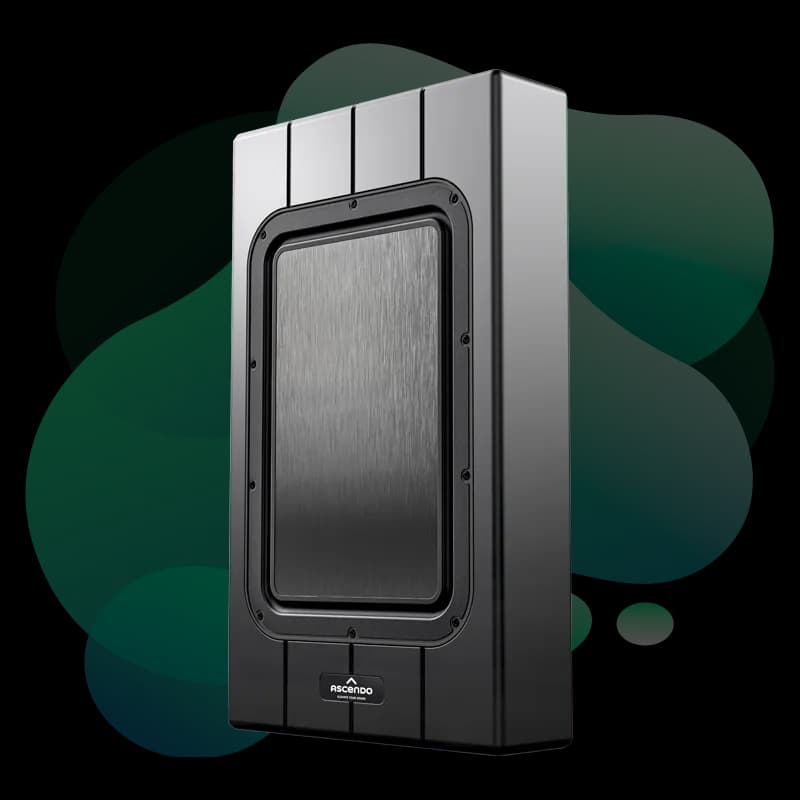

ASCENDO Panoramic Surface On Wall Speaker
A shallow architectural speaker developed for immersive-cinema surround and height channels. ASCENDO's proprietary full-range composite radiating surface is engineered to create broad, continuous coverage with less audible variation between seats.
Overview
ASCENDO developed the Panoramic Surface On Wall around the acoustic demands of immersive cinema rather than adapting a conventional cone-and-tweeter layout. Its proprietary full-range composite radiating surface is designed to behave as a controlled acoustic surface, extending an exceptionally wide radiation characteristic to nearly 180 degrees into the high-frequency range, up to 20 kHz. For listeners, ASCENDO says this approach produces more consistent tonal balance across multiple seats, distributes height information more evenly, and makes surround effects less tied to an individual enclosure. The distributed surface is also intended to reduce the sharp rise in perceived loudness experienced by a listener seated close to a conventional surround or height speaker. The shallow on-wall format is intended to operate close to a wall or ceiling. That proximity can greatly reduce front-boundary speaker-boundary interference response and the additional reflection paths associated with angled or stand-off installations. The Panoramic Surface On Wall is currently listed by ASCENDO as coming soon.
Downloads & Documentation
Pros & Cons
Strengths
- Broad radiation is designed for greater tonal consistency across multiple seats
- Distributed output reduces the perceived level jump for seats close to a channel
- Surround and height effects are less tied to the physical speaker location
- Close-surface placement can reduce front-boundary SBIR and reflection paths
- Shallow architectural form minimises visual impact
Limitations
- Electrical, output, dimensional, and weight specifications have not yet been published
- Coming-soon status means final availability and release timing remain unconfirmed
Full Specifications
Radiating Technology
Published Coverage
Application
Designing Broad, Coherent Immersive Coverage
The Panoramic Surface On Wall is most relevant where a conventional surround or height enclosure would create obvious localisation, uneven seat-to-seat tonality, or a near-seat level hotspot. Kolosseum would assess each surface speaker against the room geometry, seating offsets, channel spacing, and architectural boundary before fixing the final layout.
Room Requirements
Final channel count, spacing, and aiming should be established from the room and seating plan. ASCENDO has not yet published electrical or output specifications, so amplifier selection and reference-level verification remain pending final manufacturer data.
Acoustic Considerations
ASCENDO intends the close-boundary format to reduce front-boundary SBIR and avoid reflection paths introduced by stand-off or angled speakers. The completed room should still be measured to verify coverage overlap, timing, level, and boundary interaction across every seat.
Frequently Asked Questions About the ASCENDO Panoramic Surface On Wall Speaker.
It is ASCENDO's proprietary full-range composite radiating surface. Instead of using a conventional driver layout adapted for surround duty, it distributes sound across a surface engineered for exceptionally broad and continuous radiation.
ASCENDO developed it primarily for immersive-cinema surround and height channels, where broad seat-to-seat consistency and reduced speaker localisation are especially important.
ASCENDO states that the radiation characteristic extends to nearly 180 degrees into the high-frequency range, up to 20 kHz. This is intended to reduce tonal variation between on-axis and off-axis seats; final placement should still be verified against published polar data and in-room measurements when available.
Close proximity to the architectural boundary can greatly reduce front-boundary SBIR and avoid the extra reflection paths and comb-filtering associated with speakers mounted away from the surface.
ASCENDO currently lists the product as coming soon and announced its debut for CEDIA Expo 2026. A final release date and full technical specifications have not yet been published; Australian pricing is on application.
Compare Alternative Speakers.
THE6 Passive On Wall
ASCENDO 6.5" point-source coaxial passive on-wall speaker. 90dB sensitivity, 111/122 dB SPL, 85°×85° dispersion. Ideal for surround and height channels.
View Details →THE6 Passive Wedge 30
ASCENDO 6.5" coaxial passive speaker in wedge format for angled surround and height channel installation.
View Details →THE10 Passive On Wall
ASCENDO 10" point-source coaxial passive on-wall speaker. 97dB sensitivity, 120/130 dB SPL, 85°×85° dispersion. Excellent for LCR and large surround positions.
View Details →Ready to Design Your Cinema Around the Panoramic Surface On Wall?
Kolosseum is an independent design consultancy, not a retailer. We design the complete cinema experience and connect you with authorized dealers for purchase and professional installation.
Tell us about your room, your budget, and your vision. We will create a complete cinema design that integrates the ASCENDO Panoramic Surface On Wall Speaker with the right screen, speakers, acoustics, and seating.
