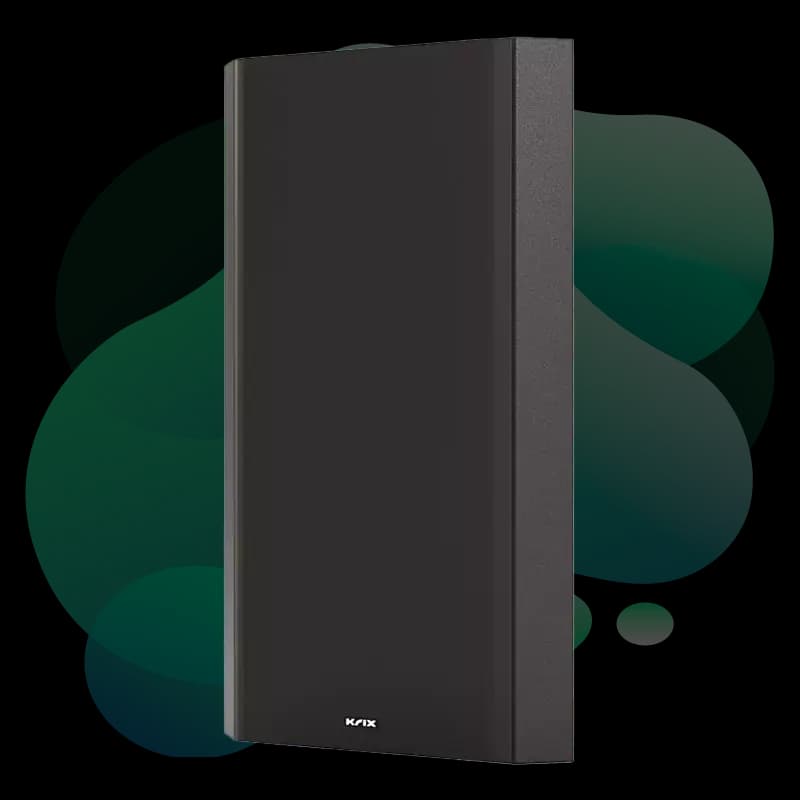

Krix Phonix 45 angled cabinet profile

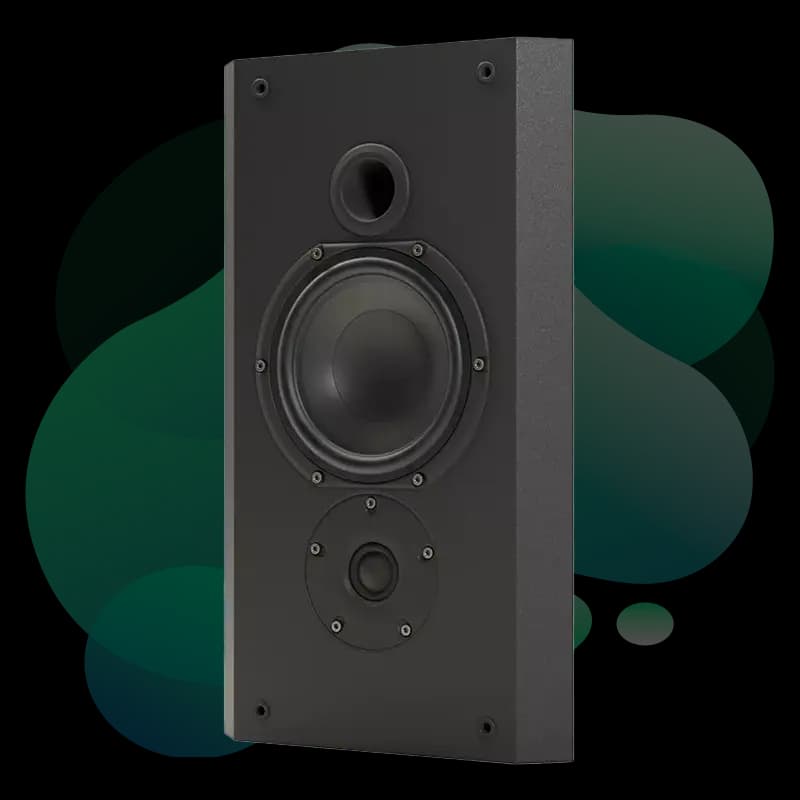

Krix Phonix 45 side detail

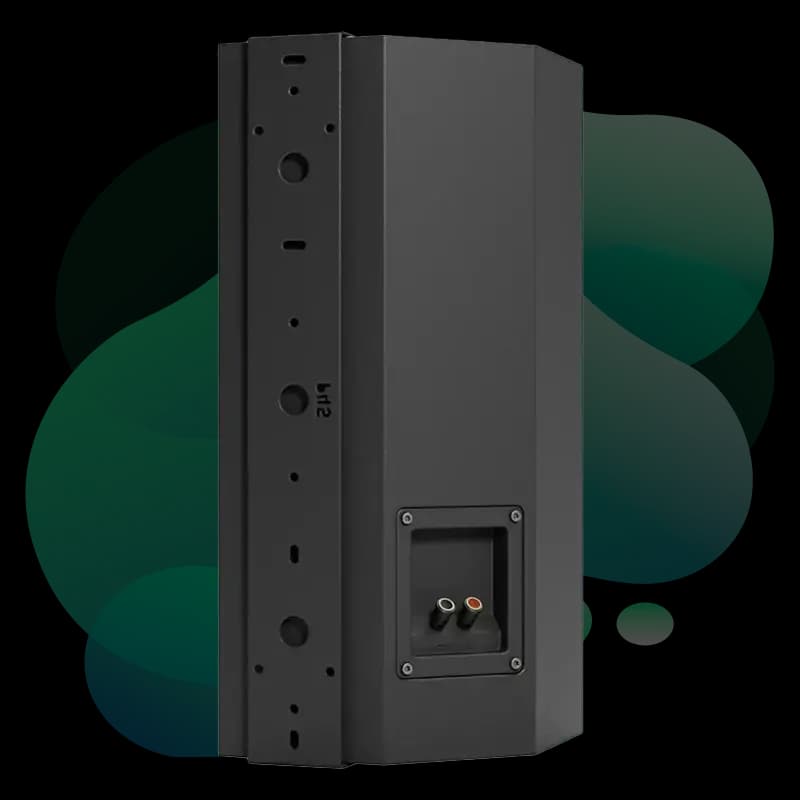

Krix Phonix 45 installation perspective
Krix logo

Phonix 45

Krix Phonix 45 Angled On-Wall Cinema Speaker

$2,595 AUD
Available
45-degree angled cabinetDesigned for surround and height channelsCompact on-wall form factorIncludes adjustable mounting bracket

Krix Phonix 45 angled on-wall cinema speaker for surround and height deployment.

Overview

The Krix Phonix 45 is an angled on-wall cinema speaker engineered for enveloping surround sound and overhead effects. Its angled baffle and adjustable bracket let installers aim output at the main listening position in placements such as front wide, front height, top front, top rear, rear height, and rear surround, while still allowing flat-to-wall mounting where on-axis placement is preferred.

Pros & Cons

Strengths

  • Strong placement flexibility
  • Good directional control for challenging room geometry
  • Compact and discreet

Limitations

  • Passive design requires external amplification
  • Requires accurate mounting angle and height
Technical Details

Full Specifications

Core Specifications

Frequency Range45Hz - 20kHz in-room response
Power Handling50 - 150 Watts RMS recommended amplifier power
Sensitivity88dB for 2.83 volts at 1 metre
Impedance8 Ohms
Configuration2-way
Enclosure TypeBass reflex, front vented
Crossover Point1.8kHz
Input TerminalsHigh current terminals with 5mm hole accepting up to 10 AWG cable
Dimensions470mm H x 276mm W x 124mm D
Weight6kg each

Driver System

High FrequencySingle 26mm (1") doped fabric dome, ferrofluid cooled
Low FrequencySingle 165mm (6.5") laminated polypropylene cone with 33mm voice coil
IncludedFully adjustable bracket and black cloth grille
Kolosseum Design Perspective

Integrating Krix Phonix 45

At Kolosseum, Phonix 45 is used when angled speaker geometry helps maintain imaging and surround precision in constrained rooms.

Room Requirements

Best results come from deliberate side-wall or angled-front mounting points.

Recommended Screen Pairing

Pairs well with Krix front-stage systems for tonal continuity.

Acoustic Considerations

Placement, aiming, and reflection control are tuned during commissioning.

Common Questions

Frequently Asked Questions About the Krix Phonix 45 Angled On-Wall Cinema Speaker.

Yes. Phonix 45 is commonly deployed in surround and height roles, with aiming flexibility for immersive layouts.
