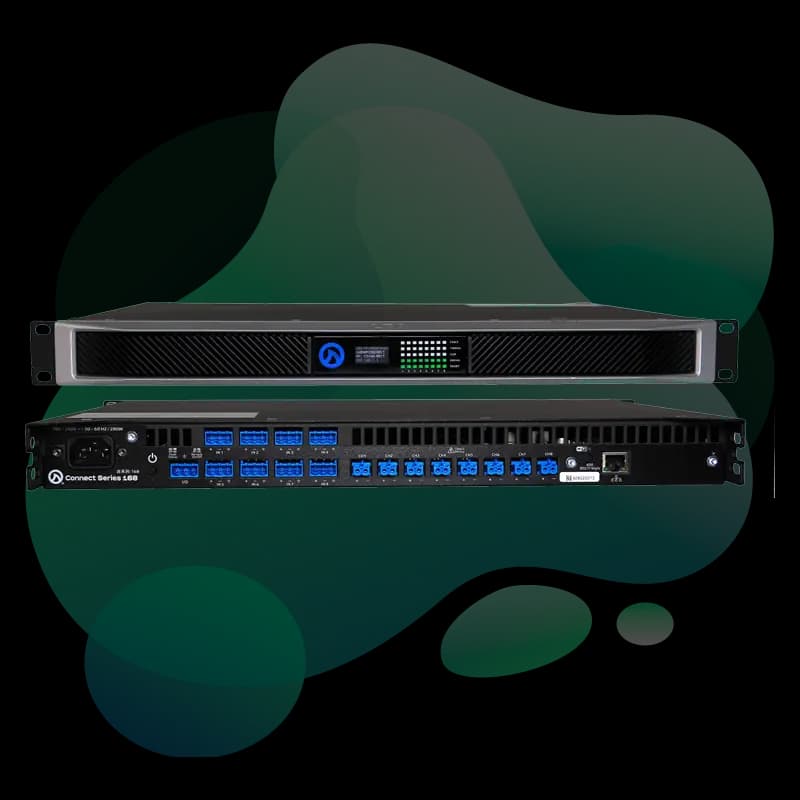

LEA Professional Connect 168 smart amplifier
LEA Professional logo

Connect 168

LEA Professional Connect 168 Smart Amplifier

$5,695 AUD
Available
8-channel smart amplifier platform160W per channel outputSmart Power Bridge supportCloud-based remote monitoringBrowser-based commissioning workflow

8-channel smart amplifier with 160W per channel, cloud management, and flexible network control.

Include in My Cinema Design

Overview

The LEA Professional Connect 168 (CS168) is a network-enabled Class D amplifier designed for installs that need reliable multi-channel output and modern control. It supports three connection paths (built-in Wi-Fi access point, existing Wi-Fi network, or wired Fast Ethernet), browser-based setup without software installs, and remote monitoring/control through LEA Cloud.

Resources

Downloads & Documentation

Connect 168 Product Page

text/html

Network Connect Series Spec Sheet

PDF

Network Connect Series User Manual

PDF

Pros & Cons

Strengths

  • Strong channel density in 1U form factor
  • Flexible networking and control options
  • Useful built-in DSP for integration tuning

Limitations

  • No HDMI or immersive audio decoding
  • Best results require careful DSP setup
Technical Details

Full Specifications

Amplification

Channels8
TopologyClass D
Power per channel (8 ohm)160 W
Power per channel (4 ohm)160 W
Power per channel (2 ohm)80 W
Bridged power320 W
Hi-Z support70V / 100V selectable per channel

DSP & Audio

DSP architectureAnalog Devices Sigma 96 kHz, 32-bit
EQ8-band parametric EQ per channel
CrossoverUp to 48 dB/oct IIR (Linkwitz-Riley and Butterworth)
Output delay100 ms per channel
THD+N0.1% (20 Hz - 20 kHz)
Signal-to-noise105 dB

Control & Physical

Control methodsWeb UI, LEA Cloud, third-party API
Network optionsBuilt-in Wi-Fi AP, venue Wi-Fi, Fast Ethernet
External I/ORemote on/off and fault monitoring
AC mains100-240 VAC +/-15%, 50/60 Hz
Dimensions362 x 482 x 1U mm
Weight6.15 kg
Kolosseum Design Perspective

Integrating LEA Connect 168

At Kolosseum, Connect 168 is suited to distributed channel amplification where rack density, remote diagnostics, and stable control are priorities.

Acoustic Considerations

Use channel-by-channel EQ, delay, and limiters after speaker placement and calibration to maintain coherent tonality and safe headroom.

Common Questions

Frequently Asked Questions About the LEA Professional Connect 168 Smart Amplifier.

Yes. It supports direct Hi-Z operation with 70V/100V selectable per channel.

You can use the built-in web UI, LEA Cloud, or third-party API integrations over network.
