AVALON TOP LCR
MAG Theatron AVALON TOP LCR

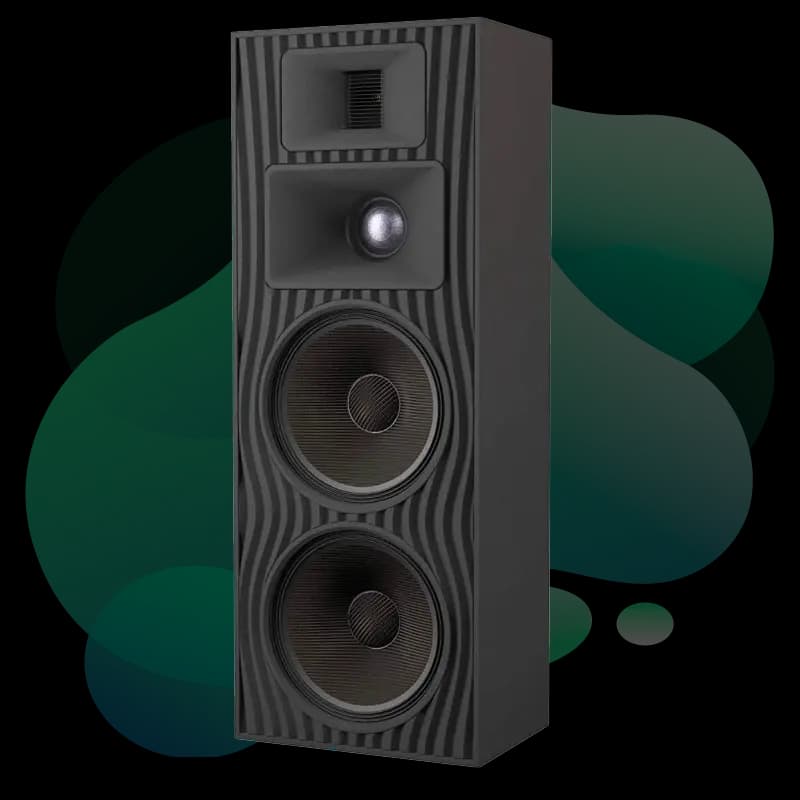

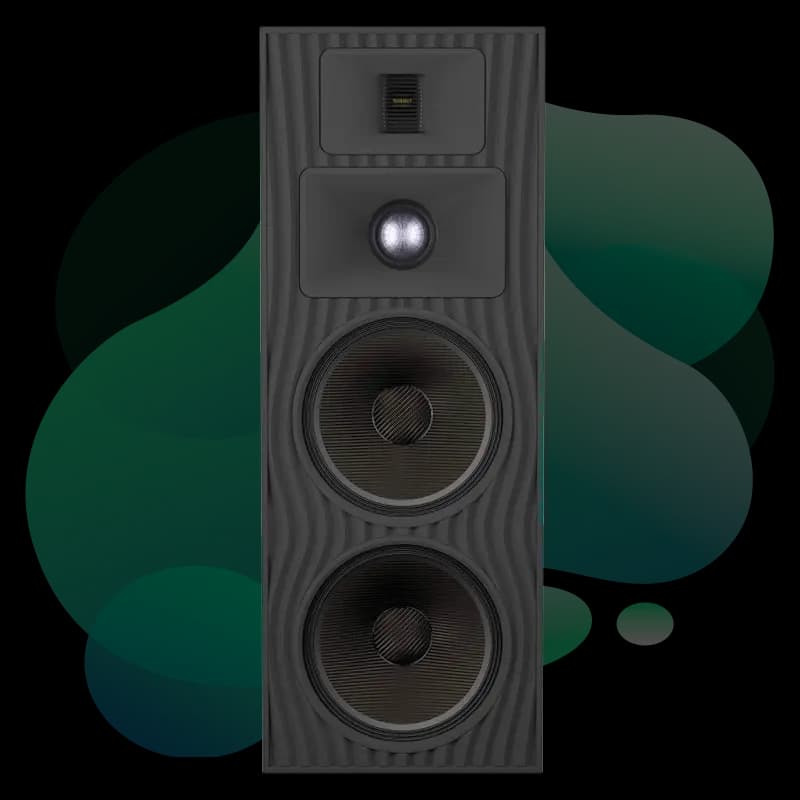

The MAG Theatron AVALON TOP LCR is a luxury high-output front-stage platform made up of dedicated TOP C, TOP L, and TOP R variants for screen-wall cinema deployments.
Overview
MAG Theatron AVALON TOP is a premium screen-wall array architecture designed for private cinema front stages that demand true reference dynamics, controlled directivity, and visual integration behind acoustically transparent screens. The platform uses three matched variants: TOP C for center and TOP L/TOP R for left-right channels. All variants share the same core acoustic engine - a 15-inch long-excursion carbon-cone woofer with 15-inch passive radiator, 4-inch titanium dome midrange, and 6.5-inch Air Motion Transformer high-frequency section. The key distinction is waveguide orientation: TOP C is straight-axis, while TOP L and TOP R use panned horns (15 degrees left and 15 degrees right) to improve coverage steering toward the listening zone when mounted flat on wall planes. This allows cleaner dialog anchoring, improved seat-to-seat consistency, and better geometric alignment with modern baffle-wall installations. For deeper low-frequency extension and seamless system voicing, AVALON TOP LCR is typically paired with AVALON SUB modules and can optionally use the AVALON Spacer accessory to refine mechanical depth and integration.
Downloads & Documentation
Pros & Cons
Strengths
- Reference-level output and headroom for large private cinemas
- Purpose-built L/C/R variant geometry improves imaging coherence
- Strong dynamic capability while keeping controlled directivity
- Mechanical accessory ecosystem includes optional AVALON Spacer
- Well-suited to baffle-wall and acoustically transparent screen deployments
Limitations
- Large and heavy enclosure requires structural planning
- Requires capable high-current amplification and careful commissioning
- Best results depend on complete-system integration, not drop-in use
Full Specifications
Drivers
Acoustic Performance
Connectivity & Physical
Integrating MAG Theatron AVALON TOP LCR
At Kolosseum, AVALON TOP LCR is deployed as a full front-stage system using TOP L, TOP C, and TOP R as a matched trio behind an acoustically transparent screen. This keeps tonal consistency and transient behavior uniform across pans and dialog focus.
Room Requirements
The platform is intended for dedicated rooms with sufficient depth and structural support for large-format screen-wall loudspeakers. Baffle-wall geometry, listening distance, and row coverage are modeled before final positioning.
Recommended Screen Pairing
Pair with acoustically transparent perforated screen materials and calibrate for insertion loss through the screen surface. TOP L and TOP R panned waveguides are aligned to direct coverage toward the center seating region.
Acoustic Considerations
Use dedicated subwoofer channels (for example AVALON SUB) and set bass management around the low-mid transition point during commissioning. Room treatment behind and around the baffle wall is recommended to preserve direct-field clarity and limit early reflections.
Frequently Asked Questions About the MAG Theatron AVALON TOP LCR.
They share the same core transducer architecture and output class. The main difference is waveguide orientation: TOP C is straight axis, while TOP L and TOP R are panned to better steer coverage toward the listening zone when installed flat on the wall.
Yes. AVALON TOP LCR is commonly paired with AVALON SUB modules for full-range cinema systems, with crossover and delay optimized during commissioning.
The AVALON Spacer is an optional accessory used to refine mechanical integration and spacing in specific baffle-wall or screen-wall configurations.
Use high-current amplification that can comfortably drive a 4 ohm nominal load with strong transient headroom. DSP-capable amplification is recommended for full-system optimization.
