M15-C Center Main Speaker

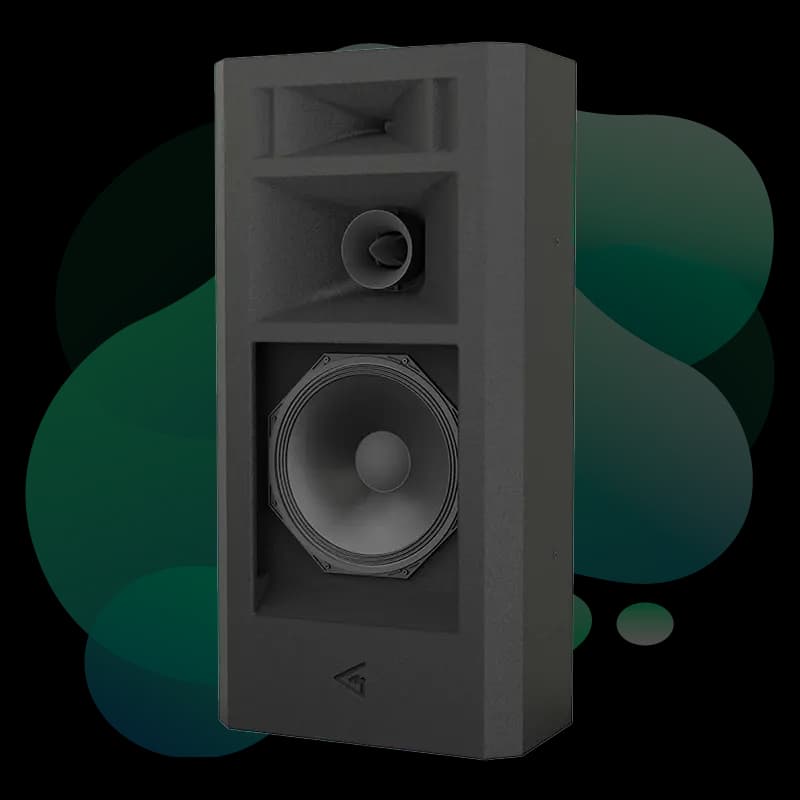

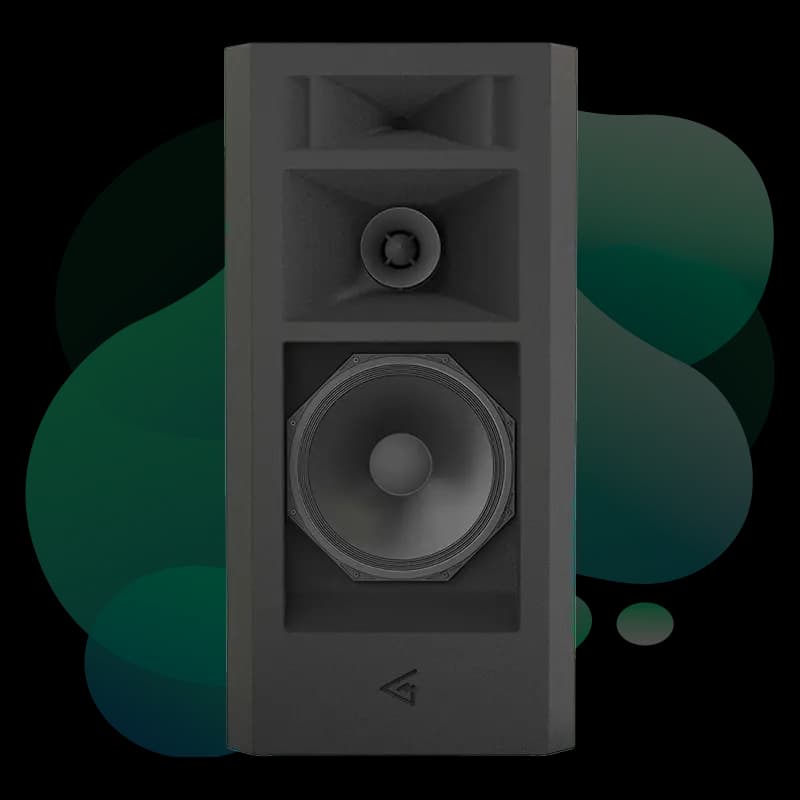

MAG Theatron M15-C Center Main Speaker
The M15-C is MAG Theatron's premium 3-way center channel speaker delivering exceptional speech clarity from its dedicated 6.5" midrange driver. Suited to large rooms and premium cinemas.
Overview
The MAG Theatron M15-C is the center channel cornerstone of the flagship M15 screen array. Its 3-way architecture — a 15-inch woofer with a 3-inch voice coil, a dedicated 6.5-inch midrange driver with a 1.75-inch voice coil, and a 1-inch titanium dome HF unit — allows each frequency band to be handled by a driver operating well within its optimal range. The midrange driver is especially critical for cinema: it handles the 250 Hz–3 kHz band where dialogue intelligibility is concentrated, delivering a level of vocal clarity and naturalness that 2-way designs cannot match. With a maximum continuous SPL of 126.5 dB, 98 dB sensitivity, and a frequency response extending to 38 Hz, the M15-C is suited to large dedicated screening rooms and premium home cinema installations where uncompromising performance is the brief. Its 90° horizontal by 40° vertical coverage pattern, oriented straight on axis, provides consistent tonal behaviour across the entire width of the seating area.
Pros & Cons
Strengths
- Dedicated midrange driver provides best-in-class dialogue intelligibility for cinema
- Exceptional SPL headroom of 126.5 dB handles the demands of any large room
- Deep 38 Hz bass extension reduces reliance on subwoofers for screen channel content
- Matched to M15-L/R for a seamless three-channel screen presentation
- Large format construction built for permanent installation in dedicated cinema rooms
Limitations
- Large cabinet dimensions (600 × 1205 × 305 mm) and 45.6 kg weight demand substantial structural support
- Three-way architecture requires multi-channel amplification or active DSP integration for best results
- Suited to large rooms only — over-specified for smaller cinema installations
Full Specifications
Drivers
Acoustic Performance
Physical
Integrating the MAG Theatron M15-C in Premium Cinema Rooms
At Kolosseum, the M15-C is reserved for the most demanding private cinema projects — typically rooms exceeding 7–8 metres in length where the full SPL and dynamic range of the speaker can be realised. The 3-way architecture rewards careful active crossover design and DSP alignment across the screen array.
Room Requirements
The M15-C is optimised for large dedicated screening rooms with proper acoustic treatment behind the screen. Structural mounting provisions must account for the 45.6 kg cabinet weight. We specify mounting frames and screen structure as part of the overall design package.
Recommended Screen Pairing
The M15-C is designed for behind-screen deployment with acoustically transparent perforated screens. Due to its depth (305 mm), screen wall depth and speaker setback must be coordinated during the room design phase.
Acoustic Considerations
The M15-C's bass extension to 38 Hz means the crossover to subwoofers can be set as low as 40–60 Hz without loss of impact. We use the dedicated midrange driver's bandwidth to our advantage by ensuring the 250 Hz–3 kHz region is free of room modal issues through careful placement and treatment.
Frequently Asked Questions About the MAG Theatron M15-C Center Main Speaker.
The M15-C adds a dedicated 6.5" midrange driver over the M12-C's 2-way design. This allows the critical 250 Hz–3 kHz dialogue band to be handled by a purpose-built driver rather than shared with the woofer, resulting in significantly higher speech intelligibility and tonal accuracy in demanding large rooms.
MAG Theatron recommend active DSP-based amplification for the M15-C to allow precise control over each driver's crossover point and delay alignment. A passive crossover option may be available; confirm with your distributor for the specific supplied configuration.
The M15-C is suited to large dedicated cinema rooms — typically 7 to 15 metres in length. Its 126.5 dB maximum SPL and high sensitivity ensure it can fill large volumes without strain, while the controlled 90° H dispersion maintains consistent tonality across wide seating rows.
The M15-C extends to 38 Hz (±3dB) and 35 Hz (-10dB), which covers most cinematic content. For reference-level LFE playback and the full impact of modern immersive audio mixes, pairing with dedicated subwoofers remains strongly recommended.
