M12-C Center Main Speaker

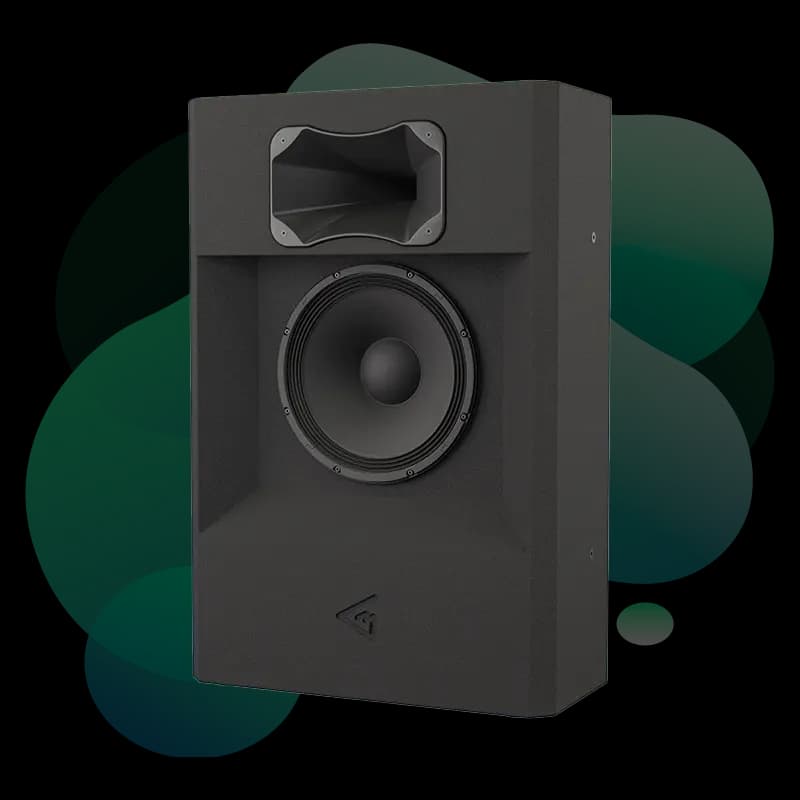

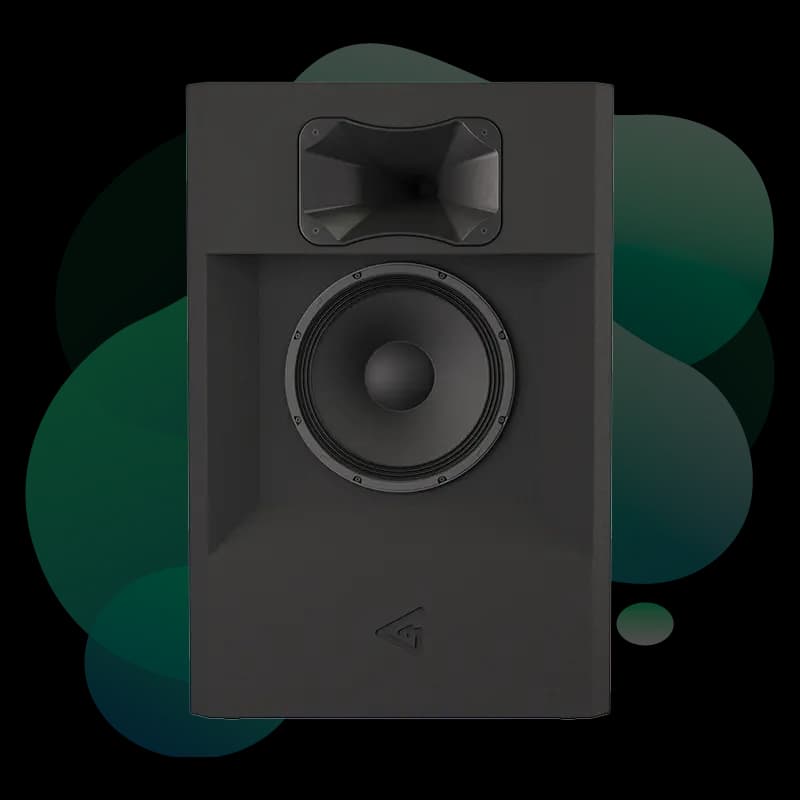

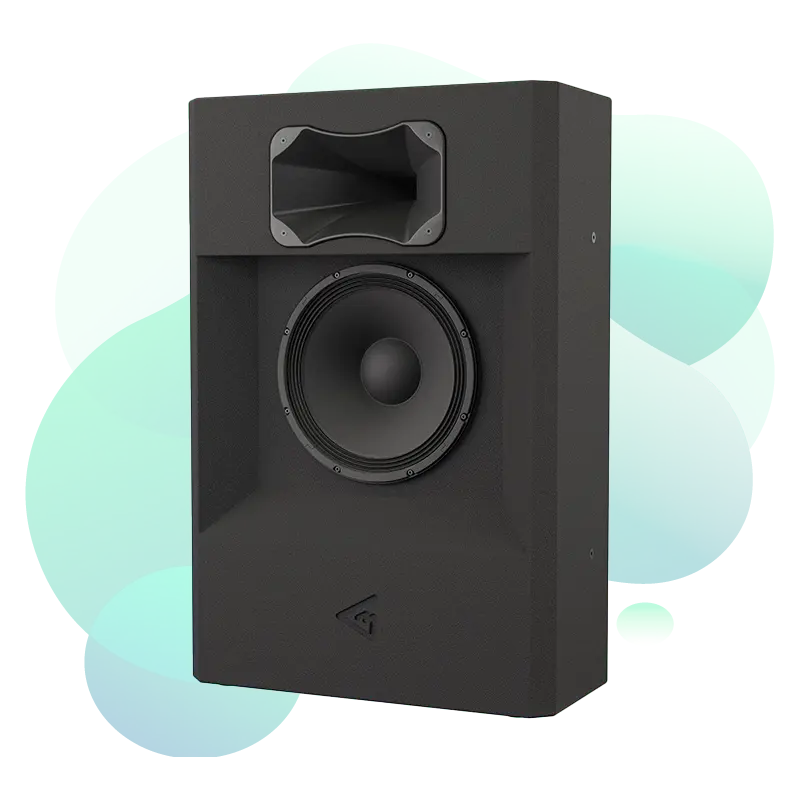

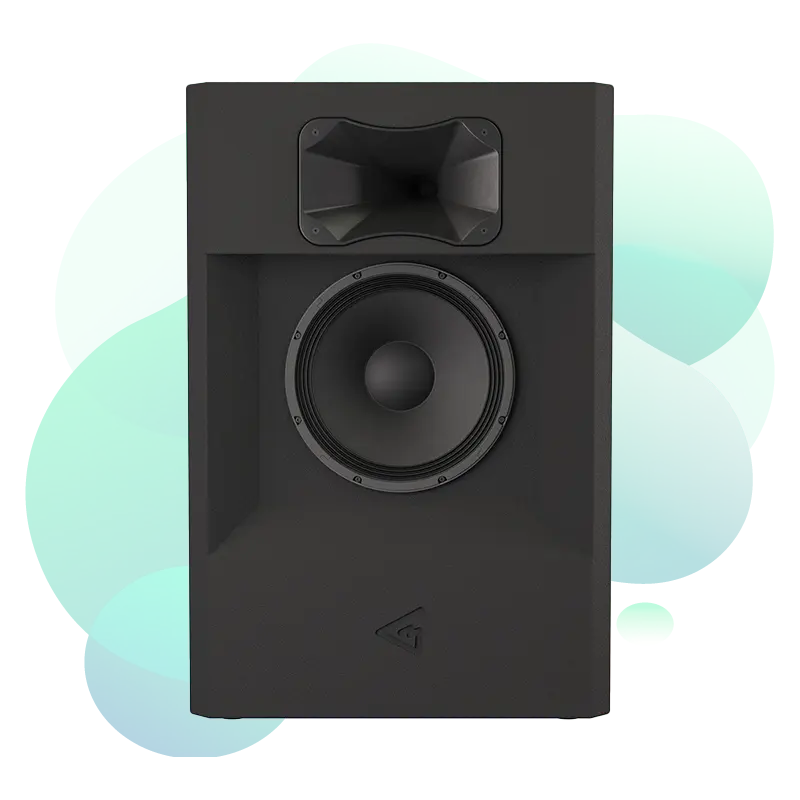

MAG Theatron M12-C Center Main Speaker
MAG Theatron M12-C is the center channel speaker from the M12 screen array, matched horizontally symmetrically to M12-L and M12-R. Based on a long-excursion 12" woofer and high-precision 1" HF driver with extremely low distortion. Suited to rooms from 4m to 10m+ in length.
Overview
The MAG Theatron M12-C is the dedicated center channel counterpart to the M12-L and M12-R main speakers in the M12 screen array. Built around a long-excursion 12-inch woofer with a 2.5-inch voice coil and a 1-inch titanium dome HF driver with a 1.75-inch voice coil, the M12-C is engineered for exceptional speech intelligibility and precise center-image anchoring. Its 90° horizontal by 50° vertical dispersion pattern, oriented straight on axis, ensures consistent tonality across a wide seating range. With a maximum continuous SPL of 121.5 dB and sensitivity of 97 dB, the M12-C can handle both delicate dialogue and high-impact cinematic content without compression. The speaker operates optimally in rooms from 4 metres to over 10 metres in length and pairs naturally with MAG Theatron surround and height solutions for a cohesive system.
Pros & Cons
Strengths
- Exceptional center-channel SPL capability for large screening rooms
- Wide horizontal dispersion ensures consistent tonality across the seating area
- Low distortion titanium dome HF driver provides clean, natural dialogue reproduction
- Banana terminal connectivity simplifies integration with screen array wiring
- Symmetrical match with M12-L/R ensures coherent three-channel imaging
Limitations
- Large enclosure and 32 kg weight require careful structural planning for screen-behind mounting
- Optimal performance requires pairing with a dedicated subwoofer below 50 Hz
Full Specifications
Drivers
Acoustic Performance
Connectivity & Physical
Integrating the MAG Theatron M12-C into a Screen Array
At Kolosseum, the M12-C is specified as the center channel anchor in MAG Theatron M12 screen arrays for medium-to-large private cinemas. Its controlled dispersion and high output capacity allow it to cut through immersive soundscapes without ever drawing attention to the center channel as a separate element.
Room Requirements
The M12-C performs best in dedicated screening rooms from 4m to 10m+ in length with acoustic treatment behind the screen and appropriate low-frequency management. We plan mounting positions and toe-in geometry to optimise the 90° H coverage across the primary seating row.
Recommended Screen Pairing
The M12-C is designed to operate behind a perforated acoustically transparent screen. Screen material, tension, and perforation ratio should be selected in conjunction with the speaker array to minimise high-frequency attenuation.
Acoustic Considerations
Bass management crossover should be set at or above 80 Hz to hand off low-frequency content to dedicated subwoofers. Absorption and diffusion behind the screen help maintain HF transient accuracy and minimise early reflections back through the screen surface.
Frequently Asked Questions About the MAG Theatron M12-C Center Main Speaker.
The M12-C is designed as the center channel of the M12 screen array and is acoustically matched to M12-L and M12-R. While it can operate as a standalone center, it delivers the most coherent three-channel imaging when used as part of the complete M12 array.
MAG Theatron recommend crossing over to a dedicated subwoofer at or above 80 Hz, as the M12-C's usable low-frequency extension begins around 50 Hz (±3dB). Crossing higher reduces driver excursion at high SPL and extends long-term reliability.
Yes. The M12-C is specifically designed for behind-screen use with acoustically transparent perforated screens. Screen material and perforation ratio should be chosen to minimise HF insertion loss, typically targeting less than 1–2 dB attenuation above 10 kHz.
The M12-C is rated at 300W and presents a nominal 4Ω load. A high-current amplifier delivering at least 300W into 4Ω is recommended. Active DSP-based amplifiers are preferred to allow precise crossover and EQ integration within the system.
