FALCON 28
MAG Theatron FALCON 28
MAG Theatron FALCON 28 is a compact premium 3-way cinema speaker designed for both acoustically transparent screens and direct-view LED front stages.
Overview

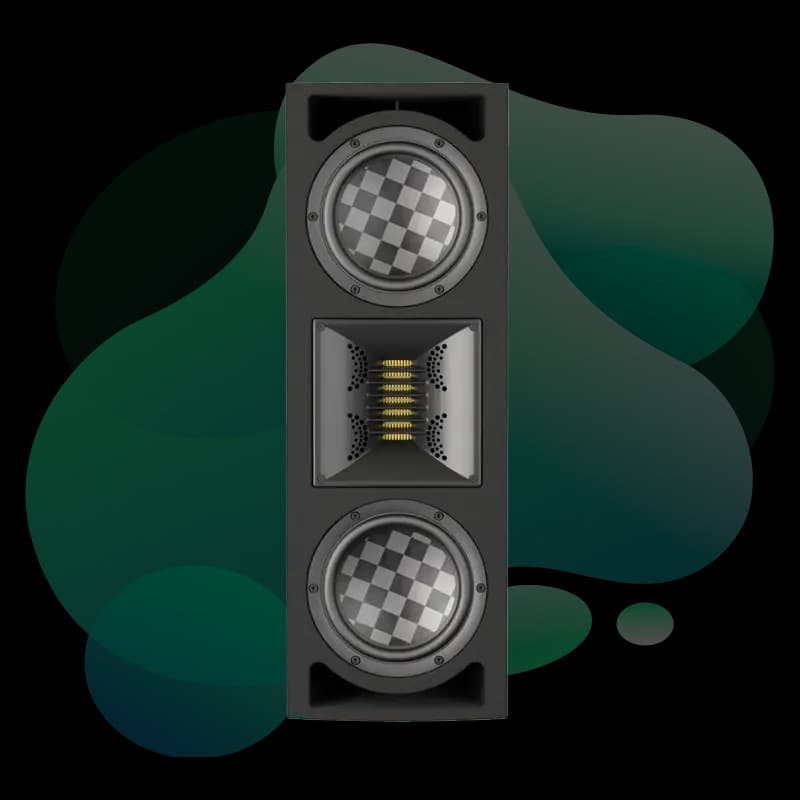

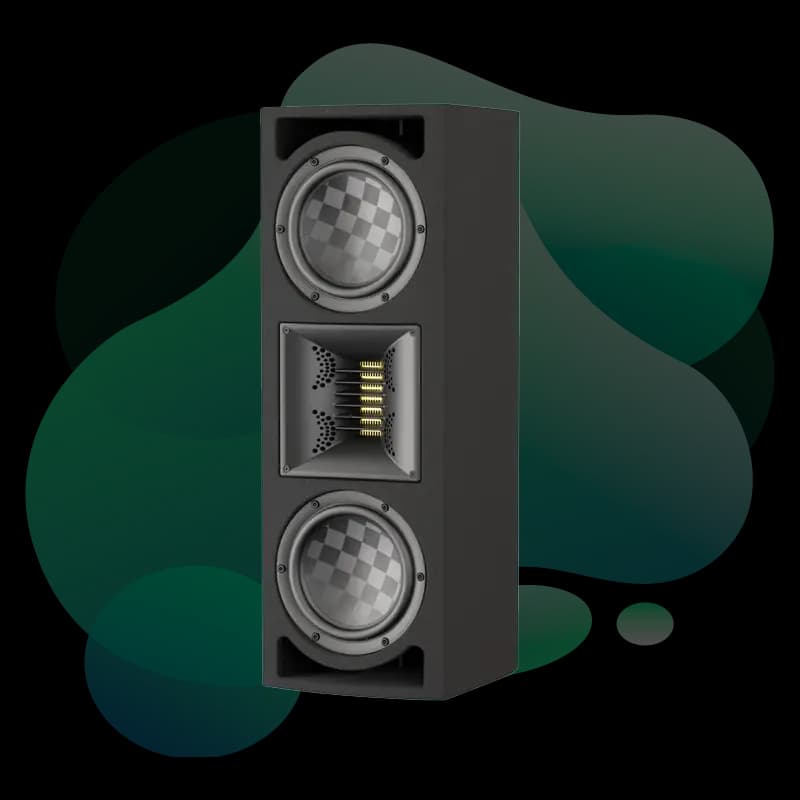

The MAG Theatron FALCON 28 is the compact member of the FALCON screen-speaker line, built for high-performance cinema applications where physical envelope is limited but clarity and impact are still required. Its 3-way architecture combines two 8-inch TeXtreme carbon-fiber woofers, four 2-inch low-distortion midrange drivers, and a 3.3-inch Air Motion Transformer high-frequency section. Like the larger FALCON 46, the MF/HF assembly can be rotated by 90 degrees, allowing horizontal or vertical deployment with controlled 90 degrees x 40 degrees coverage behavior. This flexibility makes the FALCON 28 highly suitable for modern LED-wall integrations, compact baffle walls, and premium media rooms that still demand coherent LCR imaging and speech articulation. With 116 dB max continuous SPL and robust directivity control, it offers a strong balance of size, output, and integration flexibility.
Downloads & Documentation
MAG Theatron FALCON 28 Product Page
text/html
FALCON 28 Datasheet (PDF)
FALCON 28 User Manual (PDF)
FALCON 28 3D Drawings (DWG)
application/acad
FALCON 28 2D Drawings (DWG)
application/acad
FALCON 28 3D Drawings (DXF)
application/dxf
FALCON 28 2D Drawings (DXF)
application/dxf
FALCON 28 Preset Data (XLSX)
application/vnd.openxmlformats-officedocument.spreadsheetml.sheet
FALCON 28 Preset (ZIP)
application/zip
Falcon 28 Bracket
text/html
Pros & Cons
Strengths
- Compact footprint with strong cinema dynamics
- Excellent deployment flexibility in constrained architecture
- Very good speech intelligibility from dedicated midrange array
- Consistent voicing path with larger FALCON family products
- Bracket accessory simplifies integration
Limitations
- Lower output ceiling than larger flagship screen arrays
- Requires proper subwoofer integration for full cinema extension
- Still benefits significantly from DSP commissioning
Full Specifications
Drivers
Acoustic Performance
Mounting & Physical
Integrating MAG Theatron FALCON 28
At Kolosseum, FALCON 28 is selected when front-stage dimensions are constrained but accurate LCR behavior is still required. It is particularly useful in compact high-end theaters and LED-first rooms.
Room Requirements
Best suited to small-to-medium cinemas or design-led media rooms where space around the display is limited. Final orientation is chosen during design to match seating geometry.
Recommended Screen Pairing
Use behind an acoustically transparent projection screen or around a direct-view LED panel. Rotate the MF/HF module as required to maintain intended horizontal/vertical coverage.
Acoustic Considerations
Pair with dedicated subwoofers and calibrate crossover, delay, and EQ through DSP. Front-wall and early-reflection treatment helps preserve speech focus and stereo/immersive precision.
Frequently Asked Questions About the MAG Theatron FALCON 28.
Yes. The MF/HF section can rotate 90 degrees so the speaker can maintain intended coverage in either mounting orientation.
Yes. It is specifically positioned as LED-ready and also works for behind-screen AT projection designs.
Yes for full cinema-range playback. Pairing with dedicated subs is recommended for low-frequency extension and dynamic headroom.
MAG Theatron provides the Falcon 28 Bracket accessory for installation and aiming support.
Compare Alternative Speakers.
FALCON 46
MAG Theatron FALCON 46 is a slim 3-way main screen speaker designed for behind-screen and direct-view LED cinema use. It uses 4 x 6.5" TeXtreme woofers, 4 x 2" midrange drivers, and a 3.3" AMT tweeter.
View Details →AVALON TOP LCR
MAG Theatron AVALON TOP LCR screen-wall array speaker platform using dedicated TOP C, TOP L, and TOP R variants. 15" + 4" + 6.5" AMT, 131 dB continuous SPL, and 100° x 40° controlled coverage.
View Details →S6 Compact Wall Surround
MAG Theatron S6 compact on-wall surround with SCCT technology. 6"+0.75" titanium, 115.5 dB SPL, shallow 100mm depth, VESA mounting.
View Details →Ready to Design Your Cinema Around the FALCON 28?
Kolosseum is an independent design consultancy, not a retailer. We design the complete cinema experience and connect you with authorized dealers for purchase and professional installation.
Tell us about your room, your budget, and your vision. We will create a complete cinema design that integrates the MAG Theatron FALCON 28 with the right screen, speakers, acoustics, and seating.
