FALCON 46
MAG Theatron FALCON 46
MAG Theatron FALCON 46 is a premium slim-profile 3-way cinema screen speaker platform built for both acoustically transparent projection screens and direct-view LED walls.
Overview

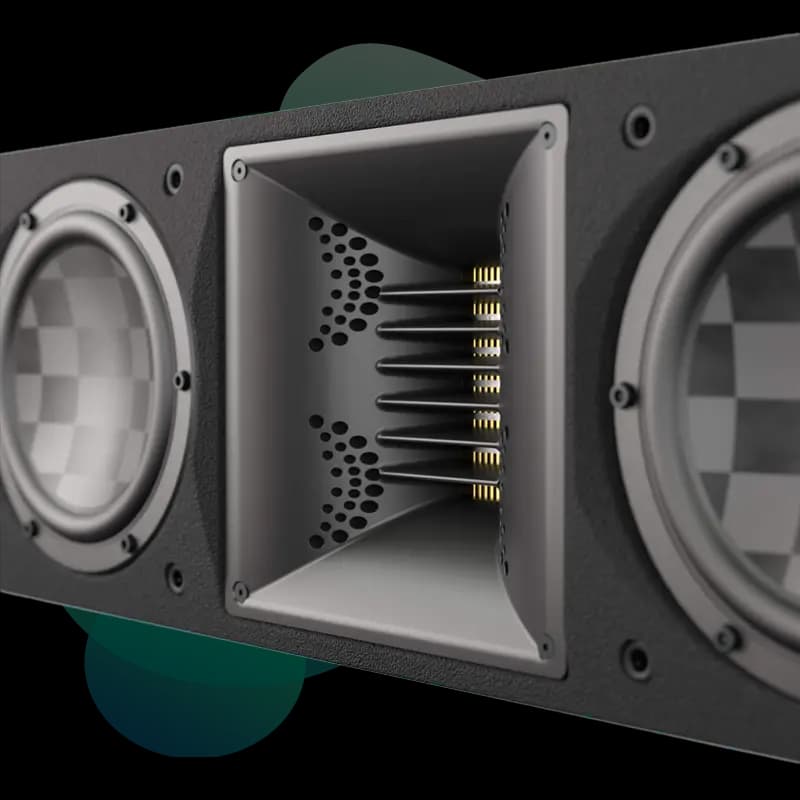

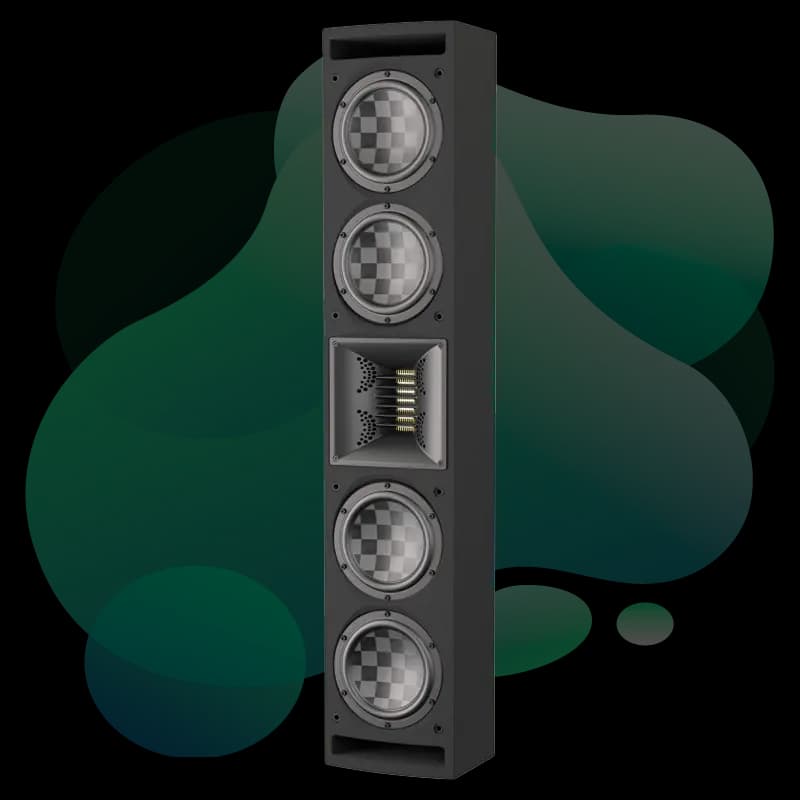

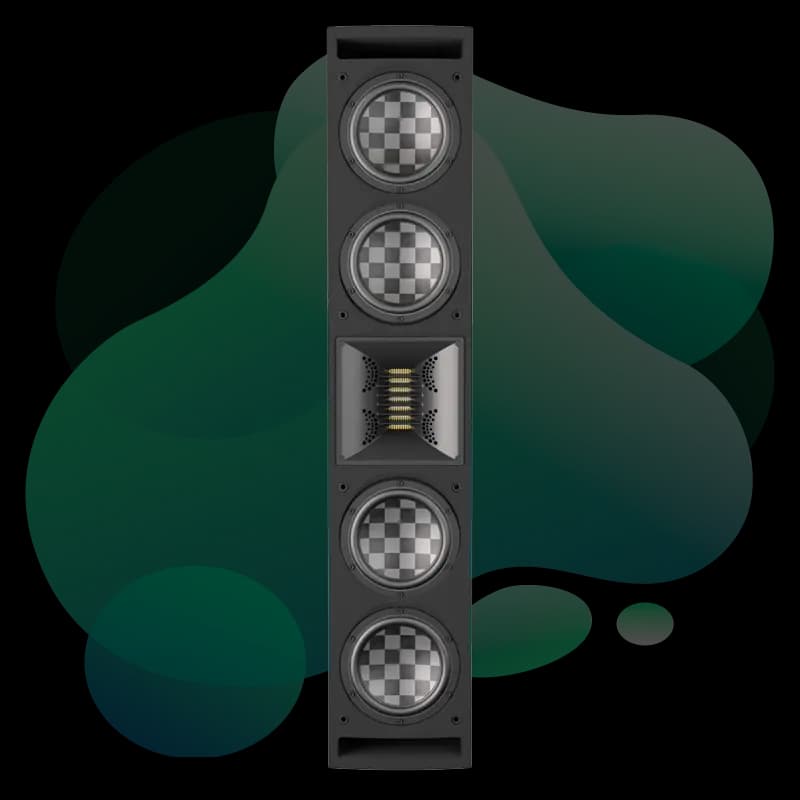

The MAG Theatron FALCON 46 is engineered as a high-performance but shallow-depth main speaker for premium home cinemas where space, sightlines, and output all matter. Its 3-way architecture combines four 6.5-inch TeXtreme carbon-fiber woofers, four 2-inch low-distortion midrange drivers, and a 3.3-inch Air Motion Transformer high-frequency section. The integrated MF/HF module can rotate by 90 degrees, allowing the same loudspeaker to be deployed in either horizontal or vertical orientation while preserving intended coverage behavior. This makes the FALCON 46 especially useful for installations around direct-view LED displays, as well as traditional behind-screen LCR layouts with acoustically transparent projection screens. With high transient accuracy from TeXtreme cones, controlled directivity (90 degrees x 40 degrees), and cinema-scale dynamics, the FALCON 46 is positioned as a reference-grade slim LCR option for design-led private theaters.
Downloads & Documentation
MAG Theatron FALCON 46 Product Page
text/html
FALCON 46 Datasheet (PDF)
FALCON 46 3D Drawings (DWG)
application/acad
FALCON 46 2D Drawings (DXF)
application/dxf
FALCON 46 3D Drawings (DXF)
application/dxf
FALCON 46 2D Drawings (PDF)
FALCON 46 Preset Data (XLSX)
application/vnd.openxmlformats-officedocument.spreadsheetml.sheet
FALCON 46 Preset (ZIP)
application/zip
FALCON 46 Bracket
text/html
Pros & Cons
Strengths
- Very compact depth for premium LCR performance
- Flexible orientation simplifies room and display design constraints
- Balanced speech intelligibility and dynamic impact
- Strong choice for mixed media-room and dedicated cinema projects
- Accessory bracket support simplifies mechanical integration
Limitations
- Not a full-range replacement for dedicated subwoofer channels
- Requires proper amplification and tuning to realize full performance
- Large-format rooms may still require higher-output main arrays
Full Specifications
Drivers
Acoustic Performance
Mounting & Physical
Integrating MAG Theatron FALCON 46
At Kolosseum, FALCON 46 is used where design constraints demand a low-profile speaker without giving up reference-grade cinema behavior. It is often selected for LED-wall cinemas and compact baffle-wall designs.
Room Requirements
Best suited to small-to-medium dedicated cinemas and premium media rooms where speaker depth and placement flexibility are critical. Mounting and aiming should be validated before wall closure.
Recommended Screen Pairing
Works behind acoustically transparent screens or adjacent to direct-view LED panels. The rotatable MF/HF section should be configured to preserve intended coverage for the seating geometry.
Acoustic Considerations
Pair with dedicated subwoofers and align crossover, phase, and delay through DSP calibration. First-reflection control and front-wall treatment improve dialog precision and lateral imaging.
Frequently Asked Questions About the MAG Theatron FALCON 46.
Yes. The MF/HF section rotates by 90 degrees, allowing optimized coverage behavior in either orientation depending on installation requirements.
Yes. FALCON 46 is explicitly designed to work as a slim main speaker for direct-view LED walls as well as traditional behind-screen installations.
Yes for full cinema bandwidth. While FALCON 46 has strong low-frequency performance for its size, dedicated subwoofers are recommended for true reference cinema extension and impact.
MAG Theatron provides a dedicated Falcon 46 Bracket accessory for installation flexibility and secure integration.
