MS8-C Semi In-Wall Center Speaker
MAG Theatron MS8-C Semi In-Wall Center Speaker
MS8-C is a compact semi in-wall center speaker designed for home cinema screen arrays, paired with MS8 left/right variants.
Overview

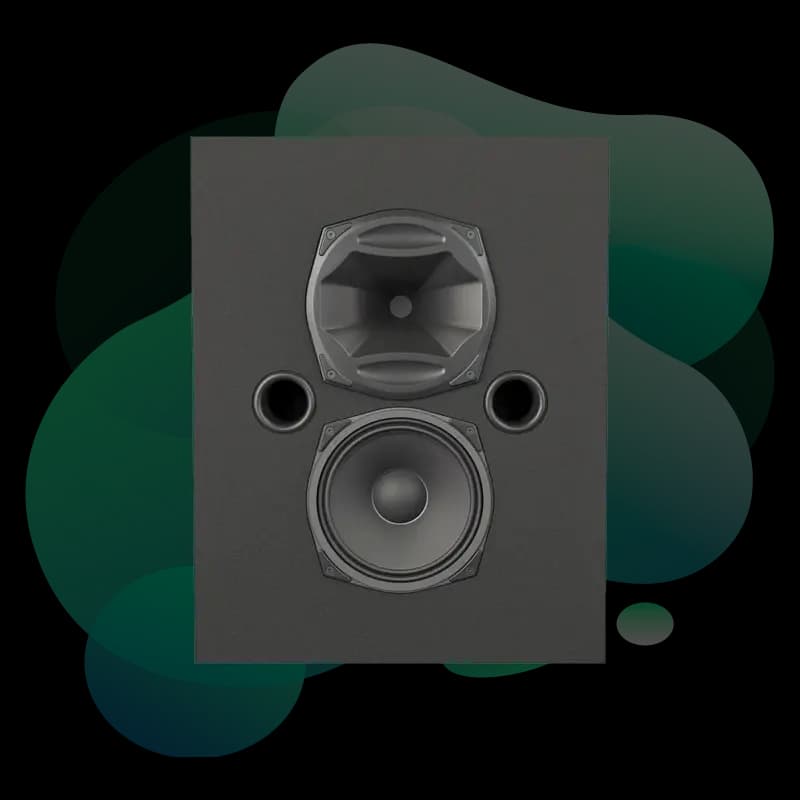

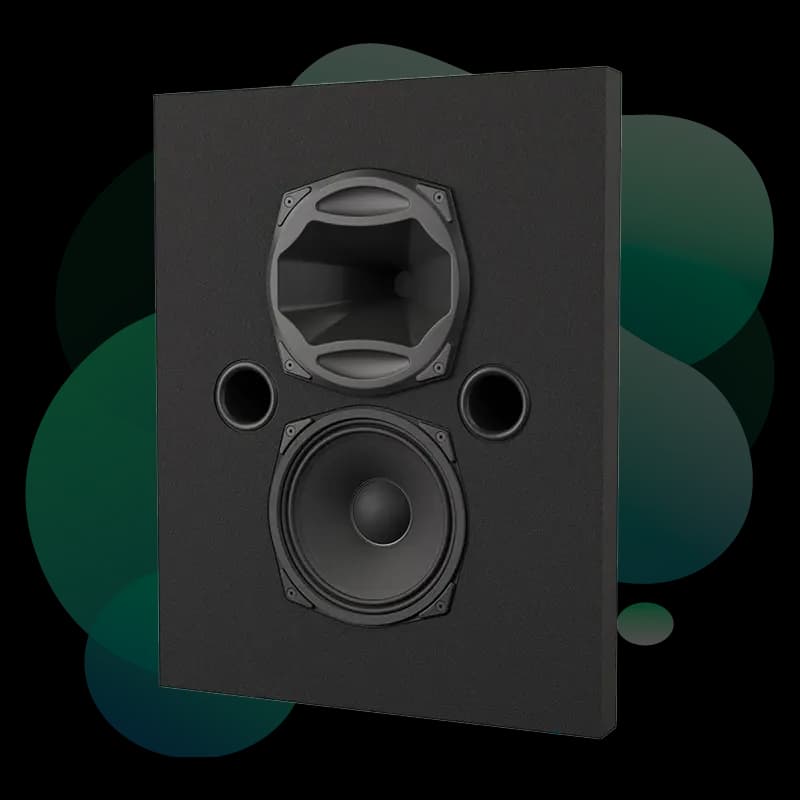

The MAG Theatron MS8-C is a compact semi in-wall center channel speaker that balances shallow integration depth with strong screen-channel performance. It uses an 8-inch low/mid driver with a 2-inch voice coil and a 1-inch titanium dome HF driver with a 1.75-inch voice coil, delivering clear speech and dynamic impact in a small footprint. The rotatable coverage pattern supports flexible aiming in constrained installations, while the semi in-wall form factor keeps frontal visual impact low for design-led rooms. In the full MS8 platform, left and right variants (commonly listed as MS8-L and MS8-R, or as MS8-LR depending on listing) are paired with MS8-C for coherent LCR imaging with steered side-channel coverage.
Downloads & Documentation
MAG Theatron MS8-C Product Page
text/html
MAG Theatron MS8-LR Product Page
text/html
MS8-C Datasheet (PDF)
MS8 Horn Rotation Guide (PDF)
MS8 3D Drawings (DWG)
application/acad
MS8 3D Drawings (DXF)
application/dxf
MS8 2D Drawings (DXF)
application/dxf
MS8 Drawings (PDF)
MS8 LR-C Preset Data (XLSX)
application/vnd.openxmlformats-officedocument.spreadsheetml.sheet
MS8 LR-C Preset (ZIP)
application/zip
Pros & Cons
Strengths
- Excellent output-to-size ratio for compact cinema projects
- Semi in-wall design improves visual integration
- Flexible coverage aiming supports constrained room geometry
- Consistent voicing with MS8 left/right family variants
- Good installer-friendly mounting architecture
Limitations
- Requires dedicated subwoofers for full-range cinema extension
- Lower ultimate headroom than larger M12/M15 systems
- Best performance still depends on DSP commissioning
Full Specifications
Drivers
Acoustic Performance
Mounting & Physical
Integrating MAG Theatron MS8-C
At Kolosseum, MS8-C is used when architectural constraints call for a semi in-wall center channel without giving up proper cinema dynamics and dialogue intelligibility.
Room Requirements
Best suited to compact-to-medium rooms where front-wall depth and visual impact must be controlled.
Recommended Screen Pairing
Use as the center channel with matching MS8 left/right options (often listed as MS8-L/MS8-R or MS8-LR) behind acoustically transparent screens or in flush wall integrations.
Acoustic Considerations
Set horn orientation during installation to match seating geometry, then calibrate crossover, delay, and EQ with subwoofers and side channels for coherent front-stage imaging.
Frequently Asked Questions About the MAG Theatron MS8-C Semi In-Wall Center Speaker.
MS8-C is the center channel, while MS8-L and MS8-R are the left and right variants (in some listings combined as MS8-LR) used to complete a matched LCR screen array.
Yes. The MS8-C is specifically designed for semi in-wall integration and uses multiple M6 mounting points for secure wall installation.
Yes for full cinema bandwidth. Pairing with dedicated subwoofers is recommended for low-frequency extension and dynamic headroom.
