CS44 Ceiling Low Profile Surround

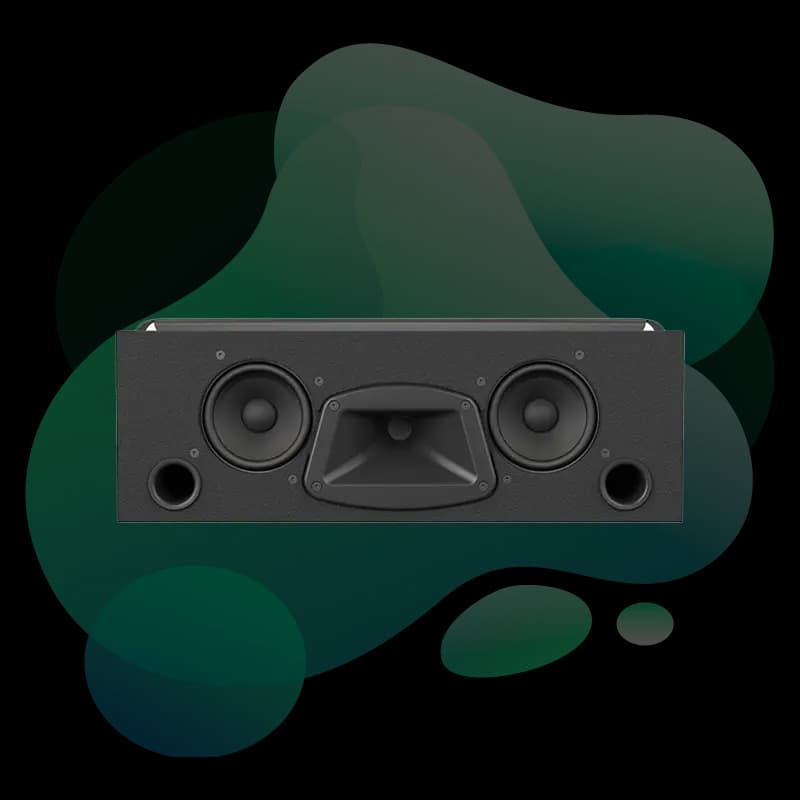

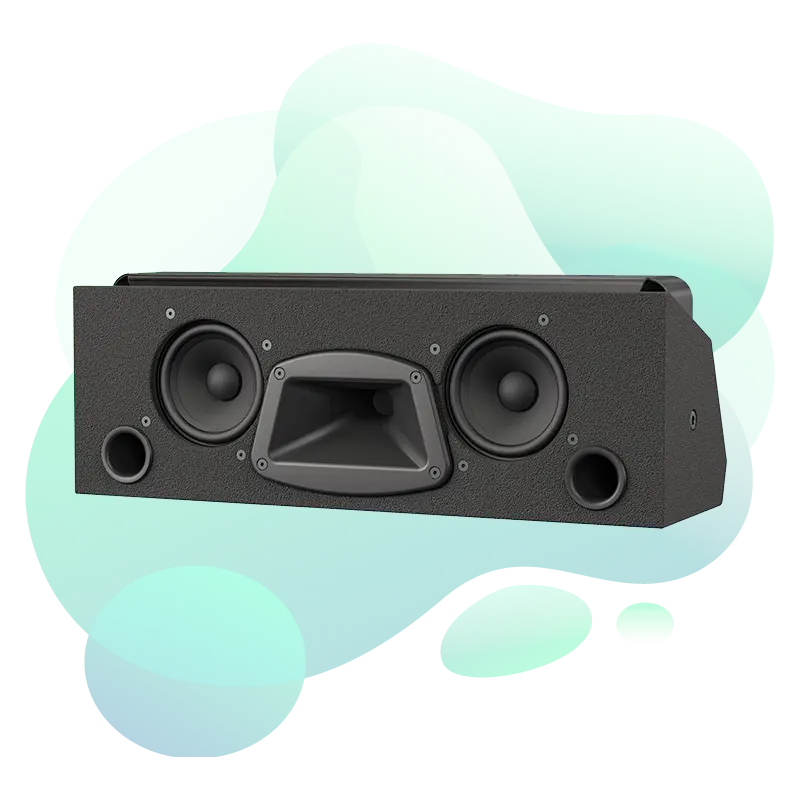

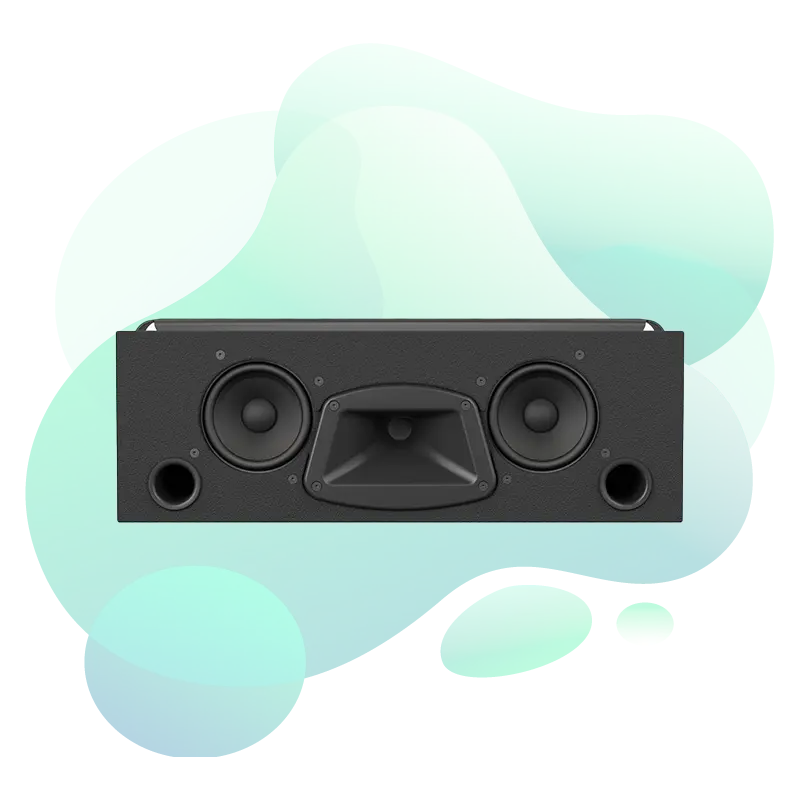

MAG Theatron CS44 Ceiling Low Profile Surround Speaker
MAG Theatron CS44 ceiling low-profile surround speaker with proprietary Surround Coverage Control Technology (SCCT). Dual 4" woofers deliver impressive surround impact in a minimal-footprint ceiling mount.
Overview

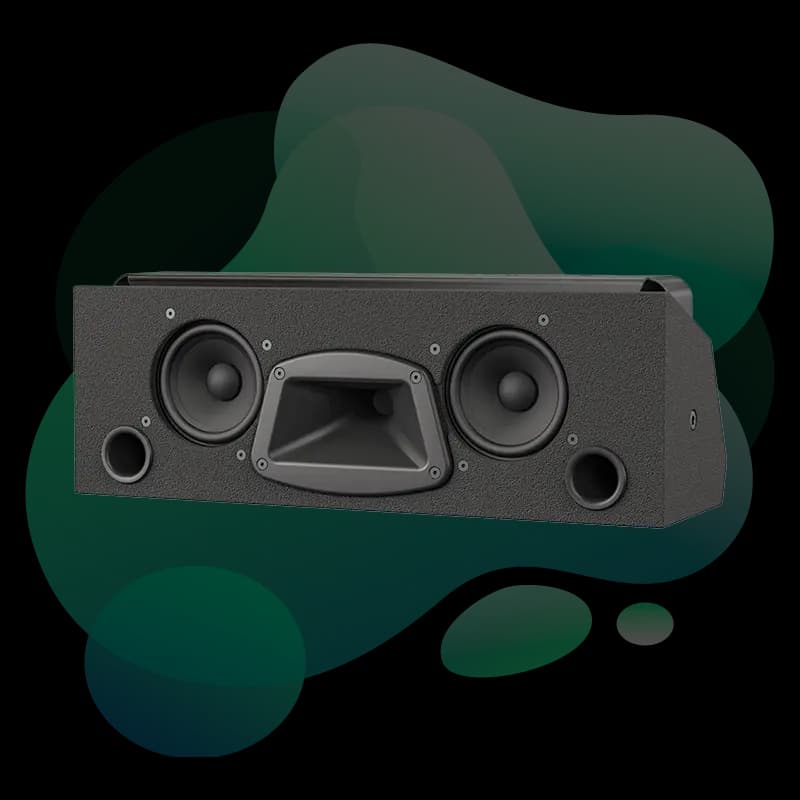

The MAG Theatron CS44 is a purpose-engineered ceiling surround speaker built around the brand's proprietary Surround Coverage Control Technology (SCCT). Two 4-inch drivers with 1.75-inch voice coils share the low-to-mid frequency reproduction, while a 0.75-inch titanium dome HF driver with a 1.5-inch voice coil handles the high frequencies. The SCCT horn is tilted 15° downward from the ceiling plane, creating an asymmetric dispersion pattern that spans -90° to +60° horizontally and -35° to +5° vertically. This geometry is specifically designed to wash the listening area with diffuse, enveloping surround energy while maintaining adequate directional specificity for modern immersive audio formats. The result is a surround speaker that works effectively as both a conventional surround and an overhead height channel in Dolby Atmos and DTS:X systems. The CS44's low-profile enclosure — just 155 mm deep — integrates cleanly into ceiling voids with minimal impact on room aesthetics.
Pros & Cons
Strengths
- SCCT horn geometry delivers convincing envelopment without excessive ceiling footprint
- Dual 4" woofers provide considerably more output than single-driver ceiling alternatives
- Low profile integrates well into architectural ceilings with shallow void depths
- Asymmetric horizontal coverage adapts well to different seating row positions
- Works effectively as both overhead Atmos channel and conventional surround
Limitations
- Bass starts at 95 Hz (±3dB) — requires proper bass management and subwoofer integration
- Maximum 110 dB SPL is appropriate for domestic rooms but below the capability of the screen channel speakers
- 8 Ω impedance at modest sensitivity means it benefits from a dedicated amplifier channel per speaker
Full Specifications
Drivers
Acoustic Performance
Physical
Integrating the MAG Theatron CS44 in Immersive Cinema Systems
At Kolosseum, the CS44 is our go-to ceiling surround solution when MAG Theatron screen speakers form the primary array. The SCCT horn technology solves the fundamental challenge of ceiling-mounted surround speakers: delivering enough directional content for modern immersive formats while maintaining the diffuse, enveloping quality that makes surrounds compelling. We use it across both Dolby Atmos overhead and conventional surround positions depending on the room layout.
Room Requirements
The CS44 is suited to rooms with ceiling heights from approximately 2.4m to 3.5m. The 15° SCCT tilt should be oriented toward the seating area during installation. Ceiling void depth of at least 200 mm is required for recessed installation.
Recommended Screen Pairing
The CS44 complements MAG Theatron M-series screen speakers by sharing brand voicing characteristics. When used as an overhead height channel, it should be positioned at 30–55° of elevation angle to the primary listening position per Dolby Atmos and Auro-3D guidelines.
Acoustic Considerations
Crossover should be set between 100 Hz and 120 Hz to complement the CS44's usable bass response. Ceiling absorption around the mounting location should be controlled to maintain the intended SCCT dispersion pattern without excessive early ceiling reflections into the listening space.
Frequently Asked Questions About the MAG Theatron CS44 Ceiling Low Profile Surround Speaker.
SCCT is MAG Theatron's proprietary horn design for ceiling and wall surround speakers. The horn is tilted 15° downward from the ceiling mounting plane and shaped to produce an asymmetric coverage pattern (-90° to +60° horizontally, -35° to +5° vertically) that directs sound toward the listening area rather than up toward the ceiling, maximising the useful energy reaching listeners.
Yes. The CS44 is suited to overhead height channel positions in Dolby Atmos, DTS:X, and Auro-3D systems. It should be positioned to achieve 30–55° of elevation angle to the primary seating position and oriented with the SCCT horn pointing toward the listening zone.
The CS44's useful bass extension starts at 95 Hz (±3dB), so a crossover between 100 Hz and 120 Hz to a dedicated subwoofer system is recommended for full-range surround and height channel playback.
The CS44 enclosure measures 162 mm in depth (with grill), so a ceiling void of at least 200 mm is required for recessed installation to allow for cabling and mounting hardware. Semi-recessed or surface mounting options may be available — consult your distributor for specific installation accessories.
