UNIBAR
MAG Theatron UNIBAR

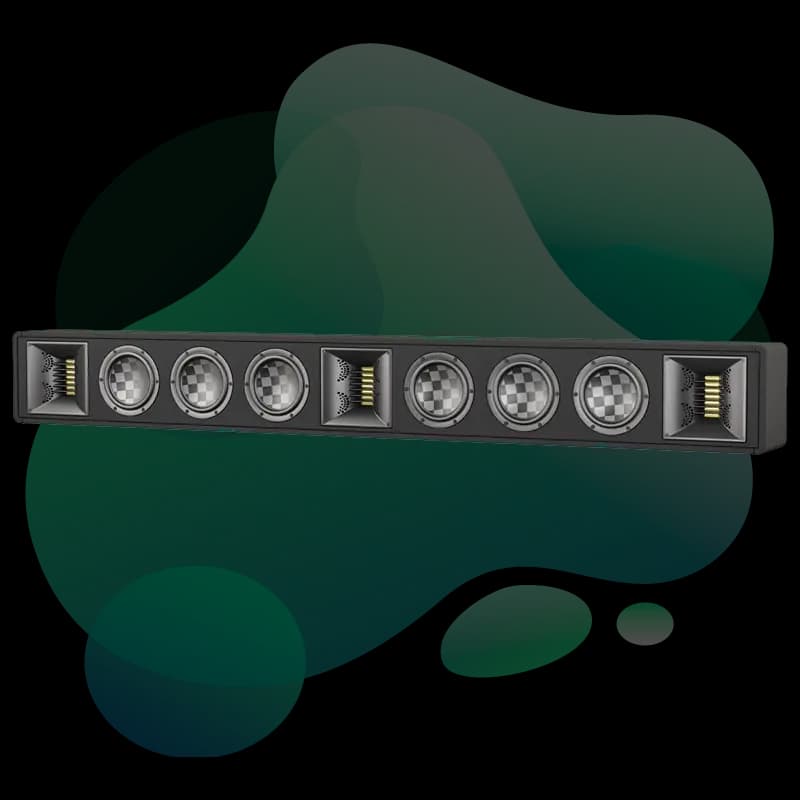

MAG Theatron UNIBAR is a high-performance passive LCR soundbar that integrates left, center, and right channels into one slim enclosure for premium cinema applications.
Overview
The MAG Theatron UNIBAR is designed as a true three-channel front-stage solution in a single cabinet, aimed at projects where clean architecture and high-performance cinema audio must coexist. Internally, the enclosure is split into three isolated acoustic chambers, each channel built from a 3-way topology using TeXtreme low-frequency drivers, dedicated midrange drivers, and a 3.3-inch AMT high-frequency section. This gives UNIBAR the imaging behavior of a real LCR system while preserving a minimal visual footprint. It is optimized for direct-view LED installations and can also be used above, below, or behind an acoustically transparent projection screen. The platform supports custom sizing up to 200 inches wide, making it suitable for bespoke premium cinemas where display scale and front-stage coverage need to be tightly matched.
Pros & Cons
Strengths
- Clean single-enclosure aesthetic without sacrificing true LCR channel separation
- Simplifies front-stage integration in architectural spaces
- Strong speech intelligibility and coherent screen-localized imaging
- Suitable for both LED wall and projection-based rooms
- Factory custom-width option supports large bespoke installations
Limitations
- Requires dedicated subwoofer system for full-range cinema bandwidth
- Per-channel performance is lower than large discrete high-output screen arrays
- Commissioning remains critical to maximize LCR imaging and tonal balance
Full Specifications
Architecture
Drivers & Performance (Per Channel)
Mounting & Physical
Integrating MAG Theatron UNIBAR
At Kolosseum, UNIBAR is deployed when architectural simplicity and high-end cinema performance need to coexist. It is ideal for premium LED-centric projects where discrete LCR cabinets are impractical or visually undesirable.
Room Requirements
Best suited to small-to-medium dedicated cinemas and media rooms where front-wall depth is limited and a minimal installation envelope is required.
Recommended Screen Pairing
Designed primarily for direct-view LED walls and can also be installed above, below, or behind acoustically transparent projection screens.
Acoustic Considerations
Pair with dedicated subwoofers and perform DSP alignment across all three channels to preserve center anchoring, pan smoothness, and tonal consistency across seats.
Frequently Asked Questions About the MAG Theatron UNIBAR.
UNIBAR is a true passive LCR system with three isolated internal chambers for left, center, and right channels. It is not a virtualized single-channel soundbar.
Yes. UNIBAR is specifically designed for direct-view LED cinema integrations and can also be used around projection screens depending on layout.
Yes. MAG Theatron offers custom-sized UNIBAR units up to 200-inch width, provided the size is not below the base model dimensions.
A dedicated UNIBAR Bracket is available, designed for slim fixed wall mounting with approximately 13 mm stand-off.
Compare Alternative Speakers.
FALCON 28
MAG Theatron FALCON 28 is a compact 3-way LED-ready screen speaker for behind-screen or direct-view LED cinemas. It uses 2 x 8" TeXtreme woofers, 4 x 2" midrange drivers, and a 3.3" AMT tweeter.
View Details →FALCON 46
MAG Theatron FALCON 46 is a slim 3-way main screen speaker designed for behind-screen and direct-view LED cinema use. It uses 4 x 6.5" TeXtreme woofers, 4 x 2" midrange drivers, and a 3.3" AMT tweeter.
View Details →AVALON TOP LCR
MAG Theatron AVALON TOP LCR screen-wall array speaker platform using dedicated TOP C, TOP L, and TOP R variants. 15" + 4" + 6.5" AMT, 131 dB continuous SPL, and 100° x 40° controlled coverage.
View Details →Ready to Design Your Cinema Around the UNIBAR?
Kolosseum is an independent design consultancy, not a retailer. We design the complete cinema experience and connect you with authorized dealers for purchase and professional installation.
Tell us about your room, your budget, and your vision. We will create a complete cinema design that integrates the MAG Theatron UNIBAR with the right screen, speakers, acoustics, and seating.
