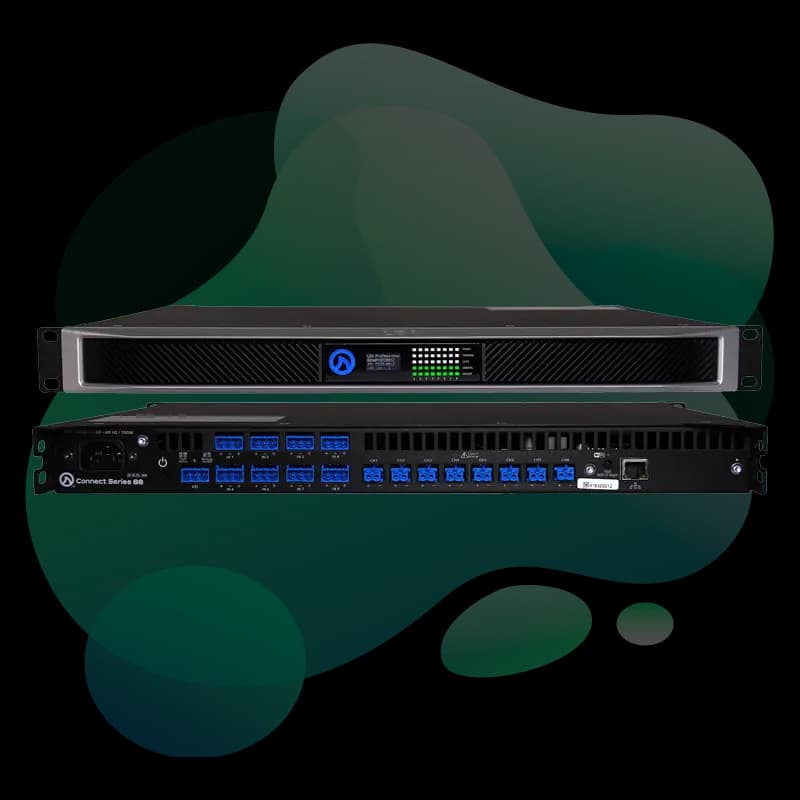

LEA Professional Connect 88 smart amplifier
LEA Professional logo

Connect 88

LEA Professional Connect 88 Smart Amplifier

$4,795 AUD
Available
8-channel smart amplifier platform80W per channel outputSmart Power Bridge supportCloud-based remote monitoringBrowser-based commissioning workflow

8-channel smart amplifier with 80W per channel, LEA Cloud support, and flexible network control.

Include in My Cinema Design

Overview

The LEA Professional Connect 88 (CS88) is a compact network-enabled Class D amplifier for distributed and cinema-adjacent channel duties where control flexibility and reliable power are essential. It supports browser-based setup, LEA Cloud remote monitoring, and three network connectivity options: built-in Wi-Fi access point, venue Wi-Fi, and wired Ethernet.

Resources

Downloads & Documentation

Connect 88 Product Page

text/html

Network Connect Series Spec Sheet

PDF

Network Connect Series User Manual

PDF

Pros & Cons

Strengths

  • Good channel count and integration flexibility
  • Cloud and web workflow for remote support
  • Built-in DSP streamlines commissioning

Limitations

  • No HDMI or immersive decoding onboard
  • Lower per-channel power than higher Connect models
Technical Details

Full Specifications

Amplification

Channels8
TopologyClass D
Power per channel (8 ohm)80 W
Power per channel (4 ohm)80 W
Power per channel (2 ohm)40 W
Bridged power160 W
Hi-Z support70V / 100V selectable per channel

DSP & Audio

DSP architectureAnalog Devices Sigma 96 kHz, 32-bit
EQ8-band parametric EQ per channel
CrossoverUp to 48 dB/oct IIR (Linkwitz-Riley and Butterworth)
Output delay100 ms per channel
THD+N0.1% (20 Hz - 20 kHz)
Signal-to-noise105 dB

Control & Physical

Control methodsWeb UI, LEA Cloud, third-party API
Network optionsBuilt-in Wi-Fi AP, venue Wi-Fi, Fast Ethernet
External I/ORemote on/off and fault monitoring
AC mains100-240 VAC +/-15%, 50/60 Hz
Dimensions362 x 482 x 1U mm
Weight6.15 kg
Kolosseum Design Perspective

Integrating LEA Connect 88

At Kolosseum, Connect 88 is suitable for lower-power distributed channels where smart control and compact channel density are prioritized.

Acoustic Considerations

Use per-channel EQ and delay after room and loudspeaker calibration to preserve tonal consistency and system headroom.

Common Questions

Frequently Asked Questions About the LEA Professional Connect 88 Smart Amplifier.

Yes, channels can be configured for direct 70V/100V operation.

Through LEA Cloud and networked web UI access, including third-party API options.
